Digital Display for HC-SR04 Ultrasonic Distance Measurement Control Board

₹165.00

In stock ?

In stock

SKU: SR-12-01 Category: Brand:

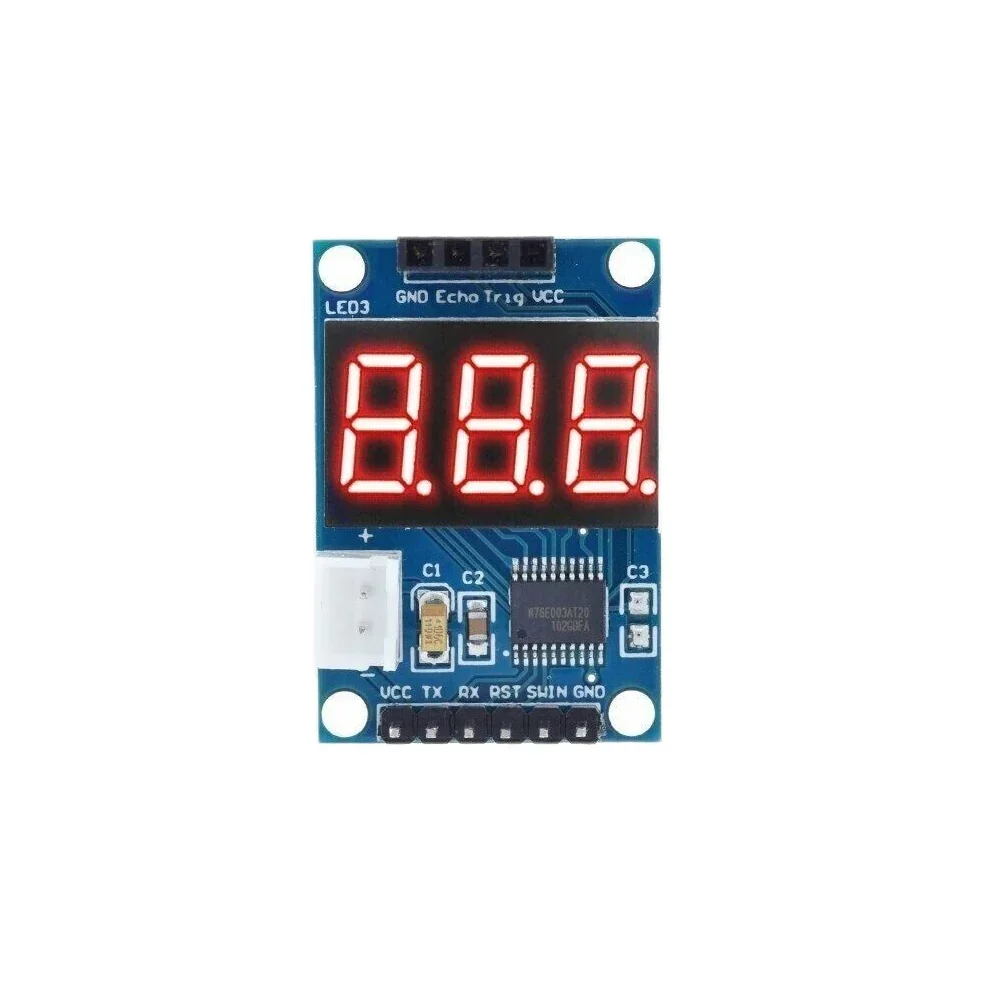

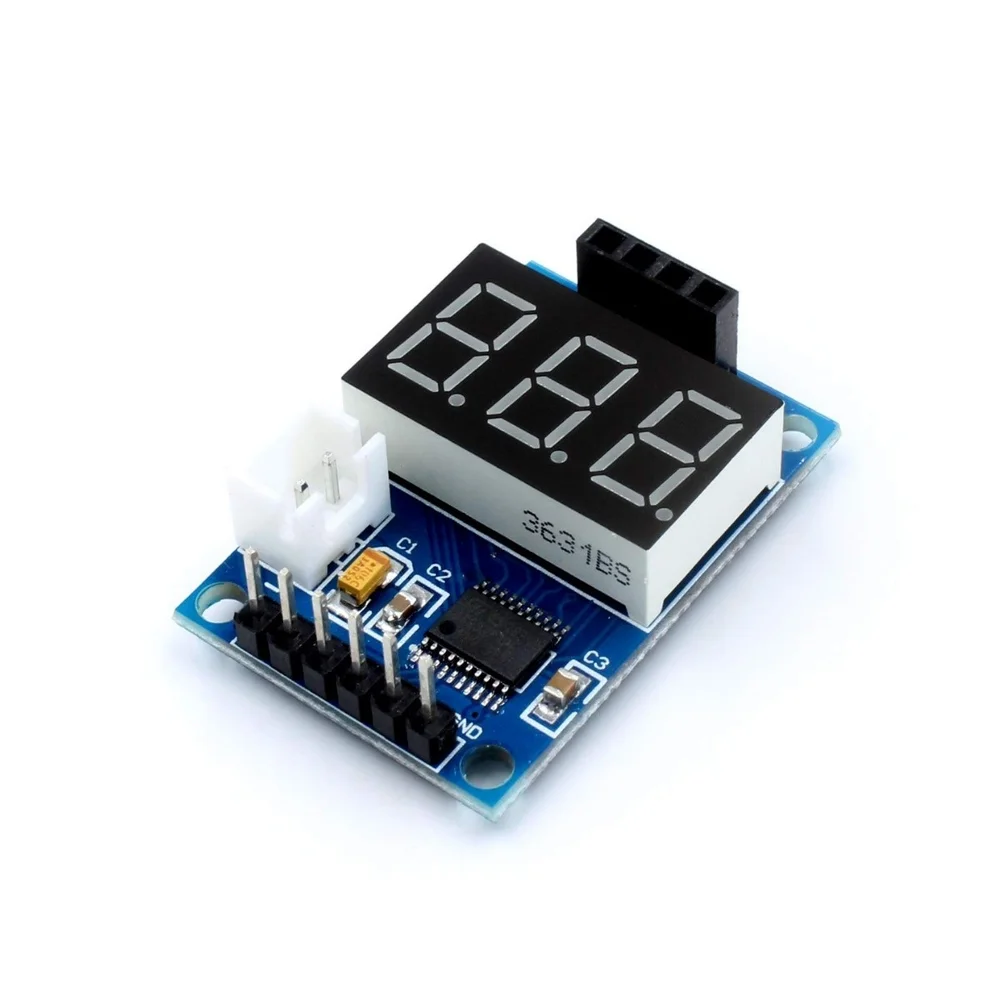

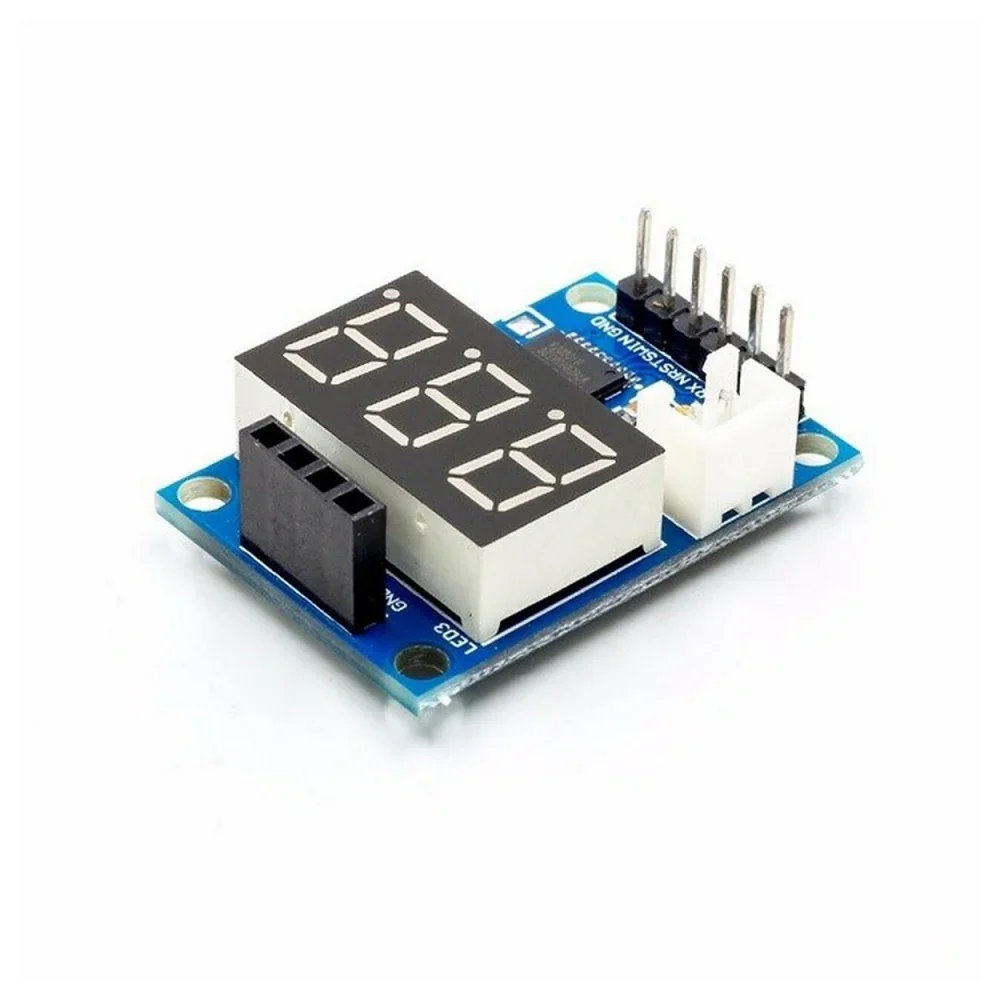

Digital Display for HC-SR04 Ultrasonic Distance Measurement Control Board is a standalone microcontroller-driven distance measurement display and relay trigger board designed specifically to interface with standard HC-SR04 ultrasonic sensor modules without requiring an external Arduino or computer. Equipped with an onboard high-speed 8-bit STC microcontroller, a bright 3-digit red LED 7-segment display, an integrated 5V buzzer alarm, and an electro-mechanical relay output, it autonomously pulses the HC-SR04 sensor, computes target distance in real time, and displays distance in centimeters. Featuring onboard push buttons to set high and low distance alarm thresholds, it functions as a complete, self-contained ultrasonic distance measuring instrument, parking assistant, or tank level controller.

Key Features:
  • Autonomous Operation: Built-in micro-controller manages ultrasonic triggering and distance math—no Arduino, coding, or PC connection required.
  • Bright 3-Digit Red LED Display: Displays real-time measured distance directly in centimeters (cm) with high contrast and rapid numerical refresh.
  • Integrated Buzzer & Relay Output: Onboard acoustic buzzer emits audible warnings and SPDT relay triggers external loads when distance breaches preset limits.
  • Simple Push-Button Calibration: Three tactile buttons allow users to set distance upper and lower limits, buzzer alarms, and relay trip points.
  • Plug-and-Play HC-SR04 Socket: Standard 4-pin female header socket accepts standard HC-SR04 modules directly without jumper wires.
Technical Specifications:
  • Operating Supply Voltage: 5.0 V DC (Micro-USB port or 2-pin DC screw terminal)
  • Operating Current: ≤ 100 mA (with relay and buzzer engaged)
  • Measurement Distance Range: 2 cm to 400 cm (Depending on connected HC-SR04 module)
  • Measurement Resolution: 1 cm
  • Display Format: 3-Digit 0.36-inch Red 7-Segment LED Display
  • Relay Contact Rating: 10A @ 250V AC / 10A @ 30V DC
  • Relay Output Configuration: SPDT (NO, COM, NC) via 3-pin screw terminal block
  • Buzzer Sound Output: ≥ 80 dB active piezoelectric buzzer
  • Operating Temperature Range: -10°C to +60°C
Mechanical Specifications:
  • Board Construction: High-grade double-sided FR-4 PCB with blue solder mask
  • Power Connectors: Onboard Micro-USB female port and 2-pin DC screw terminal block
  • Relay Terminals: 3-pin heavy-duty screw terminal block
  • Mounting Holes: 4 × M3 corner mounting holes for standoff installation
  • Net Weight: Approx. 28.0 g
Dimensions:
  • Module Length: 52.0 mm
  • Module Width: 35.0 mm
  • Module Height: 18.0 mm (including relay and LED display profile)
  • Mounting Hole Pitch: 46.0 mm × 29.0 mm
Pinout and Wiring:
  • 5V Power Input: Power via the Micro-USB port using any 5V phone adapter, or connect 5V DC power to the 2-pin screw terminal (+5V and GND).
  • HC-SR04 Header: Plug the 4-pin male header of an HC-SR04 sensor directly into the onboard 4-pin female socket matching VCC, Trig, Echo, and GND labels.
  • Relay Output (NO / COM / NC): Wire COM and NO in series with your external load (e.g. siren, warning light, or pump) for automated threshold switching.
  • Button Setup: Press the ‘SET’ button to cycle through alarm thresholds, and use the ‘+’ and ‘-‘ buttons to adjust trigger distances in centimeters.
Datasheet Reference:
  • HC-SR04 Ultrasonic Distance Measurement Control Board User Manual, Button Calibration Procedure, and Relay Wiring Guide.
Commonly Used in:
  • Automotive garage parking distance assistants alerting drivers before bumpers strike walls.
  • Water tank, sump, and grain silo level monitoring stations with alarm cutoffs.
  • Security intrusion detection curtains and doorway perimeter proximity alarms.
  • Factory conveyor belt object detection and material height monitoring.
Applications:
  • Garage Parking Assistant: Guiding vehicles into tight residential garages by displaying real-time wall clearance and sounding buzzers at 30 cm.
  • Overhead Water Tank Overflow Cutoff: Directly switching a booster pump relay off when rising water reaches the calibrated upper clearance.
  • Hands-Free Proximity Trigger: Activating automatic dispensers or electronic doors when pedestrians approach within 50 cm.
  • Stand-Alone Prototyping: Demonstrating ultrasonic distance measurement in classrooms without requiring laptops or programming environments.
Equivalent Models:
  • Arduino UNO with 4-Digit Display Shield: Programmable micro-controller equivalent requiring custom sketch development.
  • Laser TOF Distance Display Meter: Optical time-of-flight display module for tighter target spot measurement.
  • JSN-SR04T Waterproof Ultrasonic Controller: Industrial sealed probe version for outdoor rainwater tank monitoring.
Package Includes:
  • 1 × Digital Display for HC-SR04 Ultrasonic Distance Measurement Control Board
Weight 5 g
