AJ-SR04M Integrated Waterproof Ultrasonic Ranging Sensor Module

₹299.00

In stock ?

In stock

SKU: SR-12-007 Category: Brand:

AJ-SR04M Integrated Waterproof Ultrasonic Ranging Sensor Module is an industrial-grade, sealed time-of-flight acoustic distance measurement sensor engineered specifically for outdoor, damp, and harsh industrial environments where standard open-mesh ultrasonic sensors fail. Featuring a weather-resistant, fully sealed 16 mm piezoelectric acoustic probe with an integrated 2.5-meter shielded coaxial cable and a separate signal conditioning processing board, it offers complete immunity to water droplets, heavy dust, outdoor condensation, and industrial splashes. Operating across a wide 3.0V to 5.5V supply and delivering an extended detection range from 20 cm up to 450 cm (4.5 meters) with 1 mm resolution, it supports multiple operating modes including standard HC-SR04 pulse-echo, UART serial output, and automatic analog output.

Key Features:
  • Sealed Waterproof Immersion Probe: Hermetically sealed aluminum acoustic transducer probe with IP67 ingress protection withstands outdoor rain, water tanks, and dusty industrial machinery.
  • Long 2.5-Meter Shielded Coaxial Cable: Allows the waterproof sensing probe to be installed in remote water tanks or vehicle bumpers while keeping the sensitive control board safely inside an enclosure.
  • Extended 20cm to 450cm Range: Accurately measures distances from 20 cm up to 4.5 meters with high acoustic reflection sensitivity and 1 mm resolution.
  • Multi-Mode Output Support: Backside mode-resistor pads allow hardware selection between Mode 0 (Standard HC-SR04 pulse-echo), Mode 1 (Continuous UART output), and Mode 2 (Controlled UART query).
  • Wide 3.0V to 5.5V Operating Range: Fully compatible with 3.3V systems (ESP32, STM32, Raspberry Pi) and standard 5.0V Arduino microcontrollers.
Technical Specifications:
  • Model: AJ-SR04M (Fully compatible upgrade to JSN-SR04T)
  • Operating Supply Voltage: 3.0 V DC to 5.5 V DC
  • Quiescent Current Consumption: ≤ 8 mA
  • Active Operating Current: 30 mA (during acoustic burst transmission)
  • Operating Acoustic Frequency: 40.0 kHz ± 1.0 kHz
  • Measurement Distance Range: 20 cm to 450 cm (Blind zone: < 20 cm)
  • Measurement Resolution: 1 mm
  • Measurement Accuracy: ±0.5 cm + 0.5% of target distance
  • Measuring Conical Angle: 50° to 75° conical radiation pattern
  • Output Format Modes: Mode 0: Standard Pulse Echo (Default); Mode 1: Automatic Serial UART; Mode 2: Controlled Serial UART
  • Probe Water Resistance: IP67 Rated (Transducer probe head and cable)
  • Operating Temperature Range: -20°C to +75°C
Mechanical Specifications:
  • Probe Construction: Solid spun aluminum enclosure with integrated threaded barrel and rubber sealing ring
  • Probe Mounting: Standard 22 mm panel-mount hole with rear plastic locknut
  • Signal Board Dimensions: 41.5 mm × 28.5 mm × 10.0 mm
  • Cable Length: Approx. 2.5 meters (Shielded waterproof coaxial cable)
  • Net Weight: Approx. 48.0 g
Dimensions:
  • Processing Board Length: 41.5 mm
  • Processing Board Width: 28.5 mm
  • Probe Head Diameter: 22.0 mm (Flange diameter)
  • Probe Body Barrel Diameter: 18.0 mm (Thread diameter)
  • Coaxial Cable Length: 2500 mm (2.5 meters)
Pinout and Wiring:
  • 5V (VCC): Connect to regulated +3.0V to +5.5V DC power supply.
  • Trig (RX): Trigger input pin in pulse mode (send 10 μs HIGH pulse) or Serial RX in UART mode.
  • Echo (TX): Echo pulse output pin in pulse mode or Serial TX data output pin in UART mode.
  • GND: Connect to circuit power ground (0V / GND).
  • Coaxial Socket: Plug the 2-pin connector from the waterproof transducer lead directly into the onboard socket.
Datasheet Reference:
  • AJ-SR04M Integrated Waterproof Ultrasonic Distance Sensor Technical Manual, Multi-Mode Configuration Guide, and Arduino UART/Pulse Code.
Commonly Used in:
  • Outdoor water cisterns, overhead domestic tanks, and rainwater harvesting depth monitors.
  • Automotive reverse parking sensors and commercial vehicle blind-spot warning systems.
  • Agricultural grain silos, feed hoppers, and livestock water trough automation.
  • River flood level monitoring stations and stormwater drainage channel telemetry.
Applications:
  • Sealed Water Tank Depth Gauging: Mounting in the top inspection hatch of outdoor plastic water tanks without risk of moisture failure.
  • Vehicle Reversing Obstacle Radar: Installing into automotive bumper cutouts to measure curb distance in rain and mud.
  • Sewage & Sump Level Monitoring: Resisting corrosive sewer gases and humidity that destroy standard open-mesh transducers.
  • Industrial Material Profiling: Measuring non-contact material height in dusty cement, sand, or plastic pellet hoppers.
Equivalent Models:
  • JSN-SR04T-2.0 / V3.0: Widely known commercial version sharing identical probe geometry and pinout.
  • HC-SR04 Ultrasonic Sensor: Indoor open-mesh dual-transducer version suitable only for dry environments.
  • RCWL-9600 Ultrasonic Module: Multi-functional digital distance sensor with I2C interface.
Package Includes:
  • 1 × AJ-SR04M Integrated Waterproof Ultrasonic Ranging Sensor Module

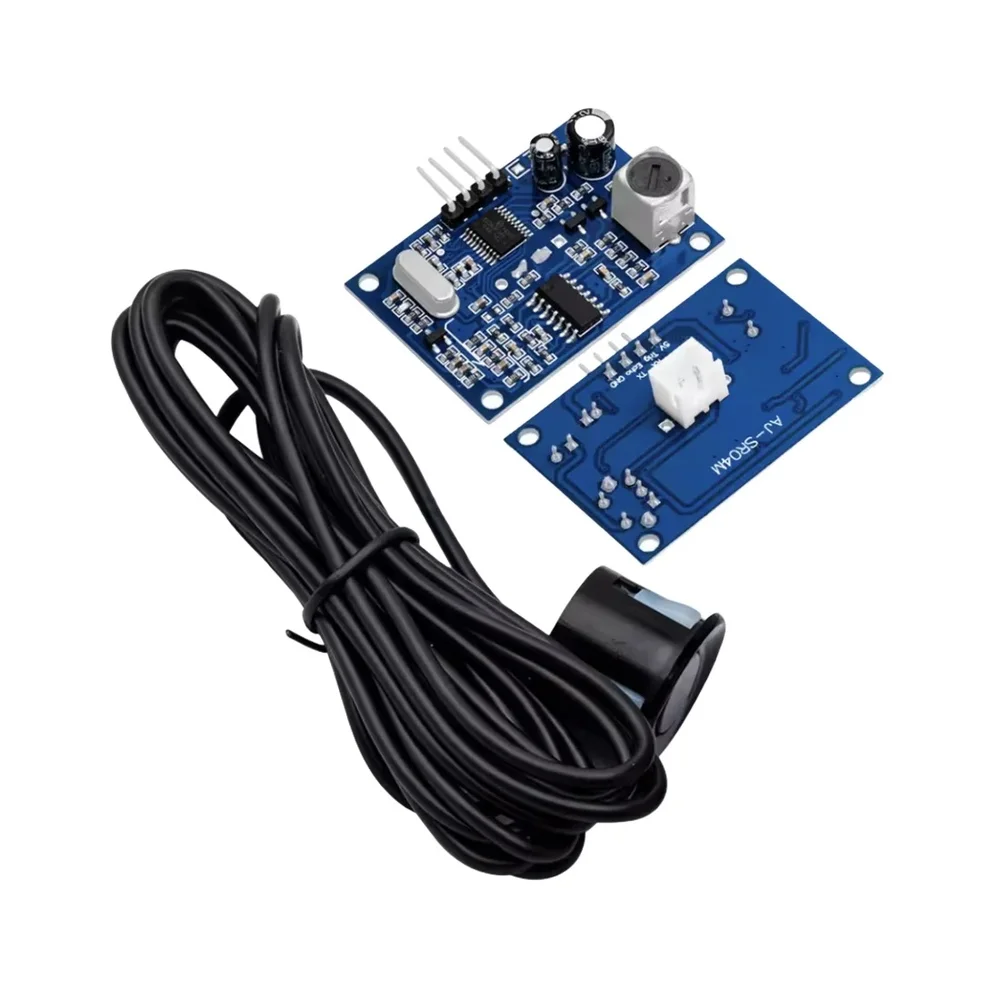

  • 1 × AJ-SR04M Signal Processing Mainboard
  • 1 × IP67 Waterproof Ultrasonic Sensor Probe with 2.5m Cable
Weight 55 g
