UBlox NEO 6M GPS Module with EEPROM

UBlox NEO 6M GPS Module with EEPROM provides a high-performance positioning solution for hobbyists and industrial designers who require accurate geographic data in a compact form factor. This module utilizes the proven u-blox 6 positioning engine to deliver exceptional sensitivity and acquisition times, even in challenging environments. Furthermore, the integration of an on-board EEPROM allows the device to store configuration settings and battery-backed RAM data, which facilitates faster “warm starts” after power cycles. Consequently, you can achieve a reliable GPS lock within seconds, making it an ideal choice for time-critical navigation tasks. Therefore, this module serves as a robust foundation for any project requiring real-time tracking, speed sensing, or precision time-syncing.

Key Features:

• High Sensitivity: Features a -161 dBm tracking sensitivity, allowing for reliable signal reception even in urban canyons or under dense foliage.
• Integrated EEPROM: Stores user-defined configurations and GNSS data permanently, ensuring the module retains its settings without a constant power source.
• Built-in Battery Backup: Includes a small rechargeable cell or supercapacitor to maintain the Real-Time Clock (RTC) and satellite orbit data for rapid re-acquisition.
• Ceramic Patch Antenna: Comprises a high-gain 25 x 25 mm ceramic antenna that connects via a U.FL connector, providing excellent signal-to-noise ratios.
• UART Communication: Utilizes a standard serial interface, which makes it compatible with almost any microcontroller, including Arduino, ESP32, and Raspberry Pi.

Technical Specifications:

• Supply Voltage (VCC): 3.0 V to 5.0 V
• Position Accuracy: ≈ 2.5 meters (CEP)
• Update Rate: Up to 5 Hz (5 positions per second)
• Time to First Fix (Cold Start): ≈ 27 seconds
• Time to First Fix (Hot Start): ≈ 1 second
• Default Baud Rate: 9600 bps
• Operating Temperature: −40°C to +85°C

Mechanical Specifications:

• Mounting Hole Diameter: ≈ 3.0 mm
• Antenna Connection: I-PEX/U.FL Connector
• PCB Material: Standard FR-4 Glass Epoxy
• Interface Header: 4-pin or 5-pin 2.54 mm male header

Dimensions:

• Module Size: ≈ 25 mm x 35 mm
• Antenna Dimensions: 25 mm x 25 mm x 8 mm
• Total Height: ≈ 12 mm (including antenna)
• Weight: ≈ 18 g (Total weight including antenna)

Pinout and Wiring:

• Pin 1 (VCC): Connect to a 3.3 V or 5.0 V DC power source.
• Pin 2 (RX): Connect to the Transmit (TX) pin of your microcontroller (3.3 V logic recommended).
• Pin 3 (TX): Connect to the Receive (RX) pin of your microcontroller.
• Pin 4 (GND): Connect to the common ground (0 V) of your circuit.
• PPS (Optional): Pulse Per Second output pin for precision timing applications; it blinks when a satellite lock is successful.

Datasheet Reference:

• Download u-blox NEO-6M GPS Series Datasheet

Commonly Used in:

• Drone Flight Controllers: Provides essential position and altitude data for ArduPilot and Pixhawk flight systems.
• Vehicle Tracking Systems: Integrated into fleet management devices to monitor real-time location and speed.
• Weather Stations: Used for accurate timestamping and location tagging of environmental data.

Applications:

• Geotagging: Recording geographical coordinates for photography or environmental mapping.
• Speedometers: Creating digital speed displays for bicycles, cars, or boats without mechanical sensors.
• Navigation: Building handheld or vehicle-mounted GPS receivers for outdoor exploration.
• Precision Timing: Using the PPS signal to synchronize servers or high-speed data acquisition units.

Equivalent Models:

• u-blox NEO-7M / NEO-8M: Newer generations offering improved power efficiency and multi-constellation support (GLONASS/Galileo).
• Quectel L80-M39: A high-performance GPS module with an integrated patch antenna and similar UART interface.
• MTK3339 (Adafruit Ultimate GPS): However, this model uses a different chipset while providing comparable 10 Hz update rates and sensitivity.

Package Includes:

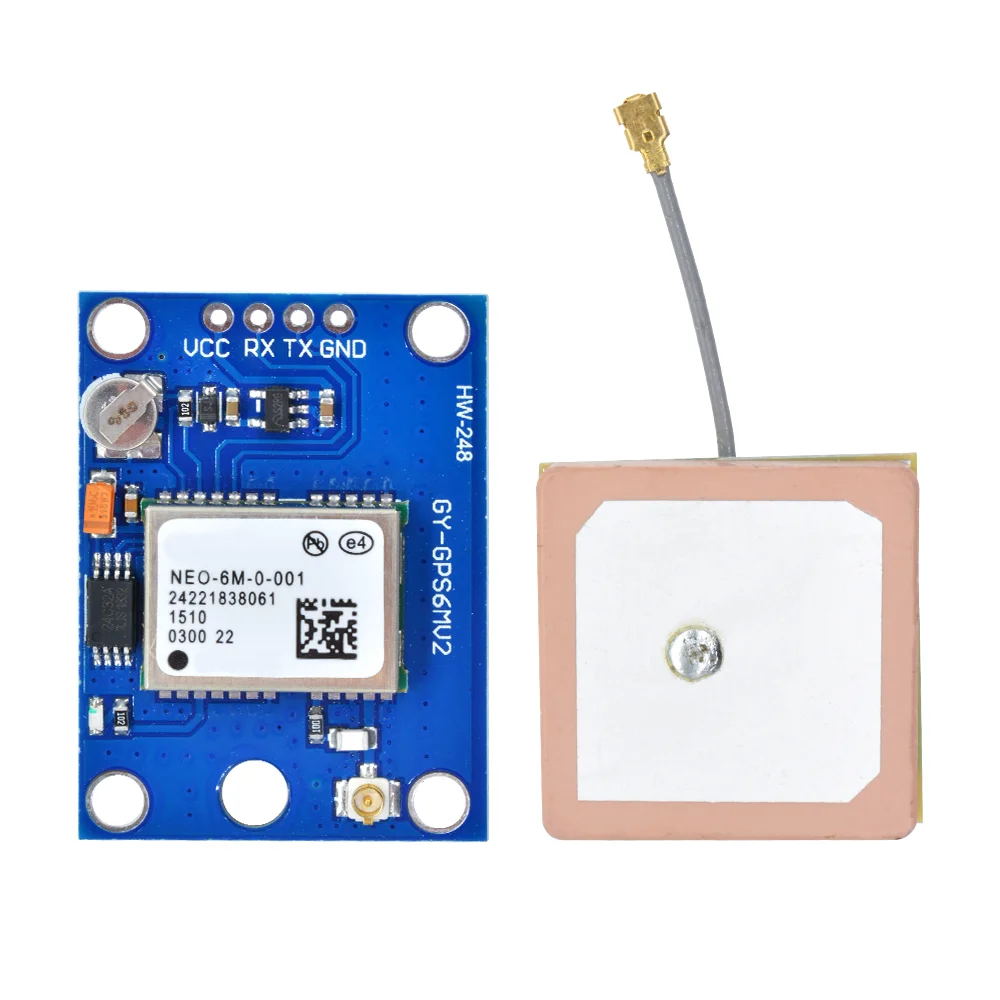

• 1 x UBlox NEO 6M GPS Module Board NEO6MV2
• 1 x High-Gain Ceramic Patch Antenna with U.FL Cable
