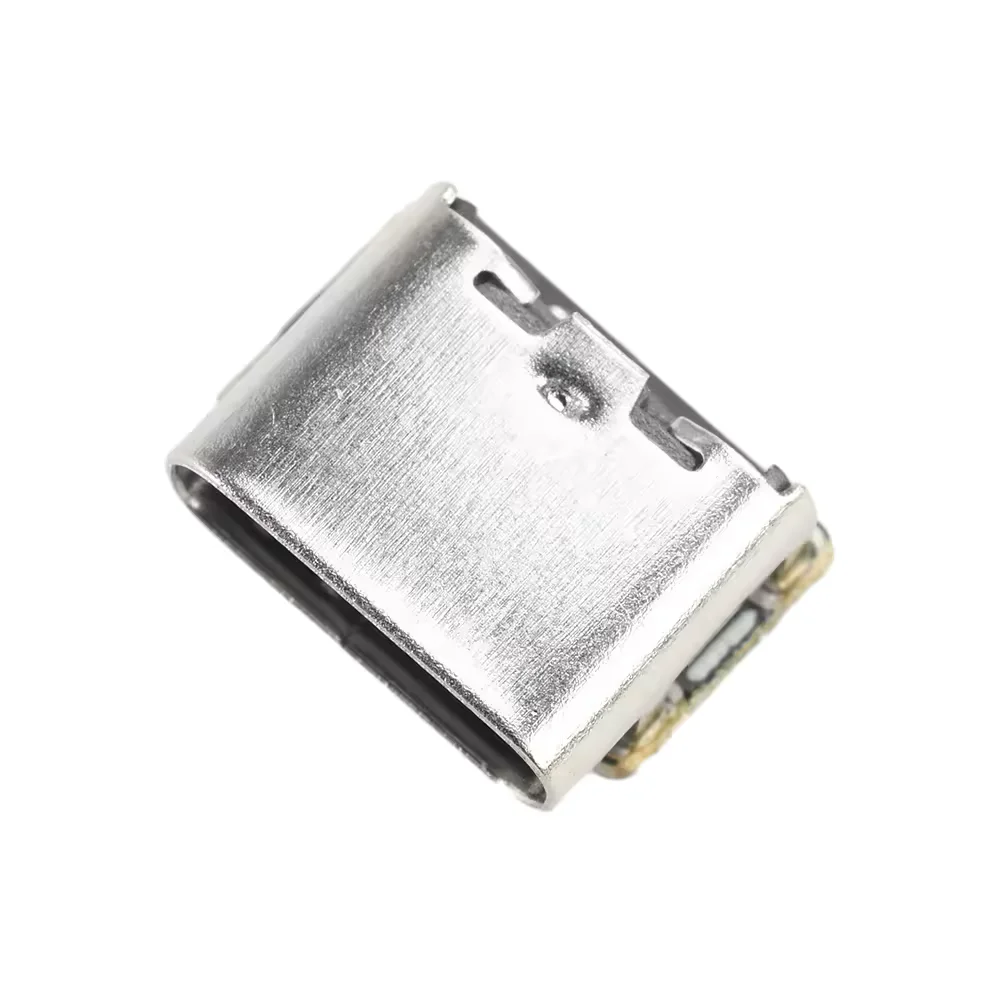

Type-C Mini 3.7V 4.2V 1A 18650 Lithium Battery Charging and Protection Board

₹37.12

In stock ?

In stock

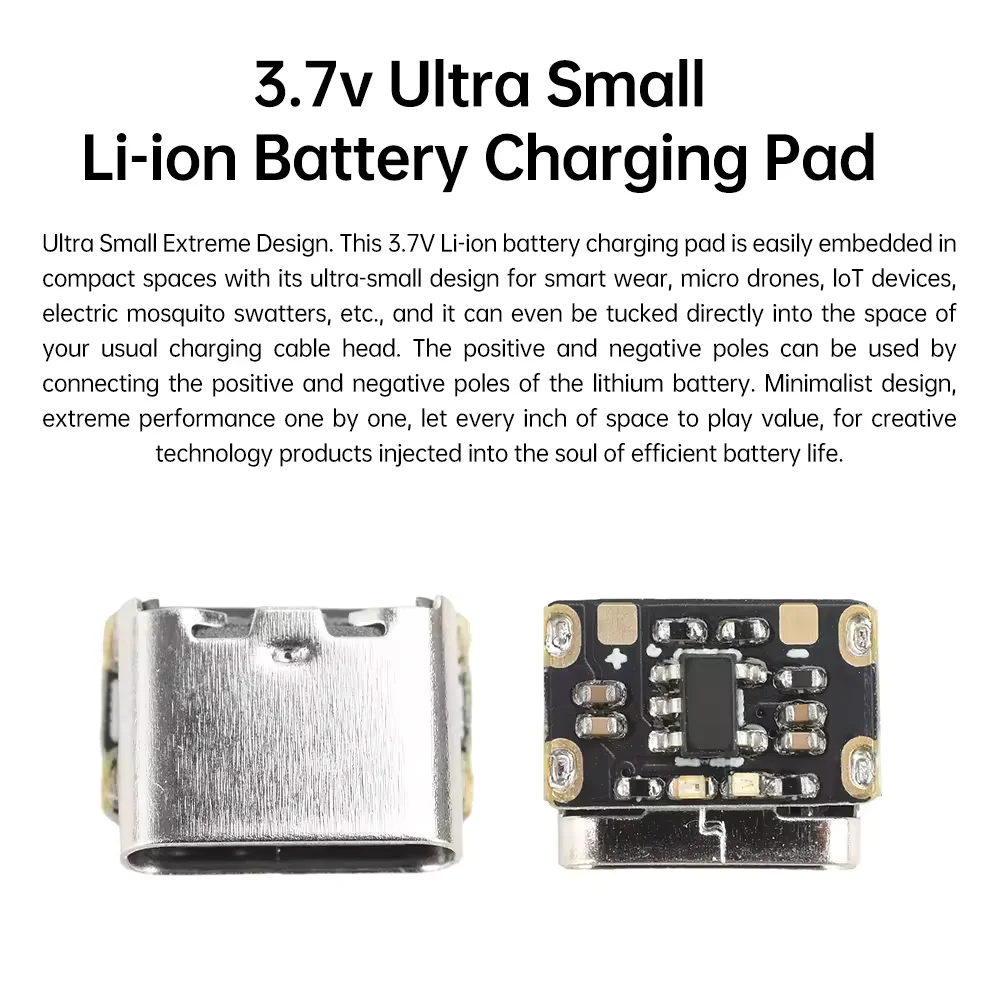

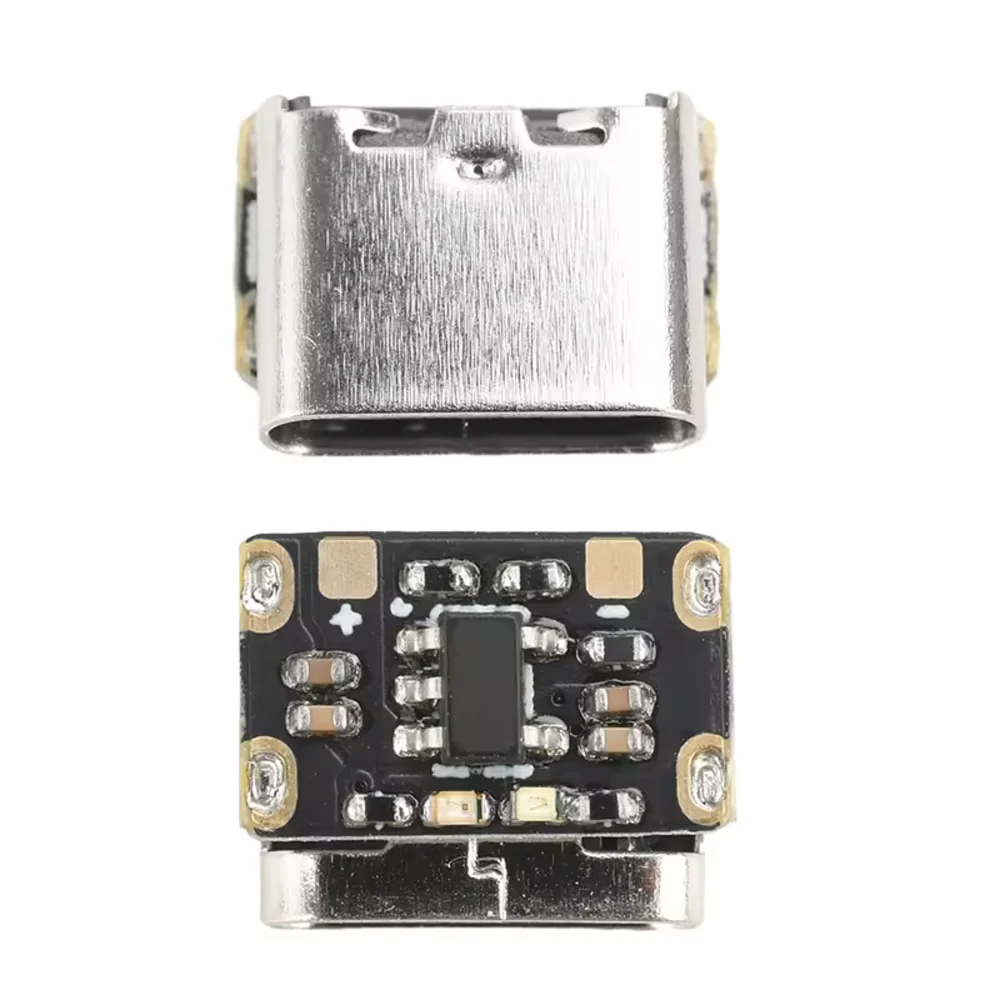

Type-C Mini 3.7V 4.2V 1A 18650 Lithium Battery Charging and Protection Board is an ultra-miniature (approx. 10mm × 10mm) single-cell (1S) lithium-ion and lithium-polymer Constant-Current / Constant-Voltage (CC/CV) USB Type-C battery charger and protection module. Engineered for space-constrained smart wearables, TWS earbuds, micro drones, and compact IoT sensors, it integrates a 4.2V ±1% thermally regulated linear charging controller with 2.8V deeply-depleted battery trickle recovery and onboard overcharge, over-discharge, and short-circuit protection.

Key Features:
  • Ultra-Miniature 10×10mm Footprint: Thumb-nail sized PCB fits inside tiny wearable enclosures, wireless mice, and micro-UAV frames where a standard 28×17mm TP4056 board cannot fit.
  • Reversible USB Type-C Power Input: Accepts 4.5V to 5.5V DC directly from any modern USB Type-C phone charger, laptop port, or power bank.
  • CC/CV Charging with 2.8V Trickle Pre-Charge: Safely revives deeply discharged 1S cells below 2.8V with gentle trickle current before ramping up to 1A constant-current and 4.20V ±1% constant-voltage termination.
  • Integrated Battery Safety Protection: Guards the connected 3.7V cell against overcharging, over-discharging, output short circuits, and thermal overload.
  • Dual-Status Charging Indicator LEDs: Onboard status LEDs indicate active charging (Red) and full-charge completion (Blue/Green).
Technical Specifications:
  • Input Interface & Voltage: USB Type-C Female Receptacle (4.5V to 5.5V DC)
  • Supported Battery Chemistry: 1S 3.7V Nominal (4.2V Full) Li-ion / LiPo / 18650 / 14500 Cells
  • Charge Cut-Off Voltage: 4.20V ± 1%
  • Maximum Charging Current: Up to 1000 mA (1A Typical with Thermal Foldback)
  • Trickle Pre-Charge Threshold: 2.8V DC
  • Operating Temperature Range: -10°C to +85°C
Mechanical Specifications:
  • PCB Material: High-Density Double-Sided FR-4 Fiberglass Board
  • Terminals: Through-Hole / Surface Solder Pads for Battery (B+ / B-) and Load
Dimensions:
  • Length: ~10.0 mm
  • Width: ~10.0 mm (7.5mm–10mm ultra-compact profile)
  • Height: ~5.0 mm
  • Weight: ~1.2 g

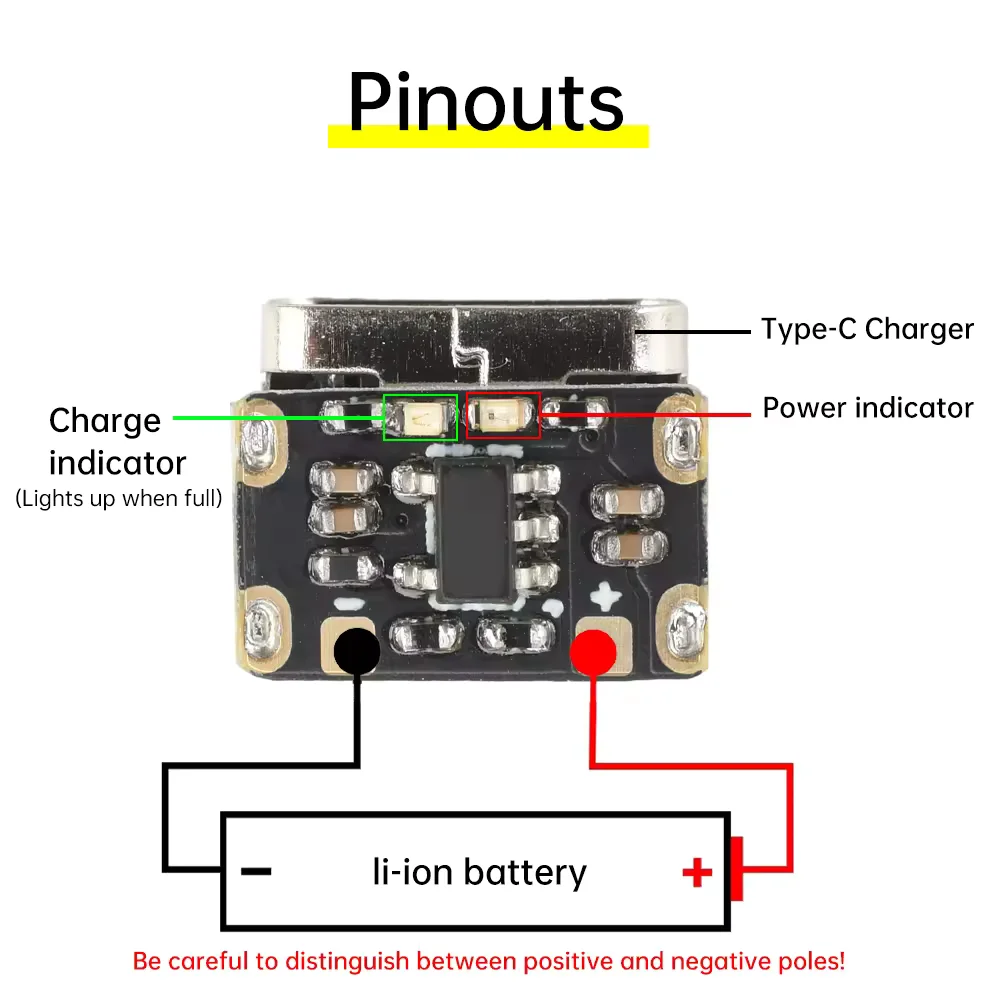

Pinout and Wiring:
  • USB Type-C Port: Connect 5V DC USB Type-C charging cable.
  • B+ / BAT+: Solder to single-cell 3.7V lithium battery positive terminal.
  • B- / BAT-: Solder to single-cell 3.7V lithium battery negative terminal.
Datasheet Reference:
  • Controller Architecture: Thermally Regulated 1A Linear CC/CV Li-Ion Charger + Battery Protection IC
Commonly Used in:
  • Smart Wearables, Fitness Bands, and Miniature IoT Nodes
  • Micro Quadcopters and Pocket RC Gadgets
  • Custom USB Type-C Conversions for Legacy Portable Devices
  • Compact 18650 / LiPo Pouch Cell Charging Circuits
Applications:
  • Upgrades older battery-powered gadgets to convenient USB Type-C charging without taking up internal enclosure volume.
  • Charges single-cell 3.7V LiPo pouch batteries in ultra-thin ESP32/nRF52 wearable prototypes.
  • Protects and recharges 18650 or 10440 cells in miniature flashlights and pocket instruments.
Equivalent Models:
  • TP4056 1A Li-ion Lithium Battery Charging Module with Current Protection – Type C: Standard 28×17mm 1A Type-C TP4056 + DW01A charger board.
  • 1S 3.7V 3A Li-ion BMS PCM Battery Protection Board: Standalone 1S BMS protection strip without USB charger input.
Package Includes:
  • 1 × Type-C Mini 3.7V 4.2V 1A 18650 Lithium Battery Charging and Protection Board
Weight 1 g
