A2212 1000 KV BLDC Brushless DC Motor for Drone

A2212 1000KV BLDC Brushless DC Motor is a high-efficiency, lightweight motor widely used in quadcopters, drones, and RC planes. Its 1000KV rating ensures a balanced blend of thrust and torque, making it suitable for mid-size multirotor applications requiring stable flight performance and extended runtime.

Key Features:

• Efficient brushless design with long service life
• 1000KV rating provides ideal RPM for 10”–11” propellers
• Compact and lightweight for drone flight optimization
• Pre-soldered 3.5mm gold connectors for plug & play use
• Compatible with most BLDC ESCs (Electronic Speed Controllers)

Technical Specifications:

• Motor Type: Outrunner BLDC
• KV Rating: 1000 RPM/V
• Operating Voltage: 7.4V – 12.6V (2S–3S LiPo)
• Max Current: 12A
• Max Power: 150W
• Recommended ESC: 30A
• Shaft Diameter: 3.17mm
• Propeller Compatibility: 1045, 1060, 1147 props

Mechanical Specifications:

• Motor Diameter: 27.5mm
• Motor Length: 30mm
• Mounting Hole Pattern: 16mm x 19mm
• Shaft Length: 12mm
• Weight: 48g (approx.)

Dimensions:

• Total Height (including shaft): 42mm
• Motor Base to Shaft Top: 30mm
• Mounting Hole Size: M3 (3mm)

Mounting Options:

• Bottom mount holes (16x19mm spacing) for drone arms
• Can be mounted inverted or upright based on drone design
• Compatible with most multirotor aluminum or carbon fiber frames

Schematic Diagram, Connection, Wiring and Pinout:

• Three-wire brushless motor: typically Red (A), Yellow (B), Black (C)
• Connect to BLDC ESC in any order; swap any two wires to reverse direction
• No ground or sensor wire; works with sensorless ESCs

Datasheet/User Manual:

• A2212 1000KV Brushless Motor Specs Sheet
• Basic wiring diagram and connection guide

Applications:

• Quadcopters and multirotor drones (450mm – 550mm frames)
• RC airplanes and gliders
• Robotics and automation platforms
• Educational drone kits and FPV hobby builds
• DIY aerial photography systems

Equivalent:

• BR2212 1000KV (similar power rating)
• Emax CF2812 1000KV motor (alternative brand)
• Sunnysky X2212 1000KV (premium variant)

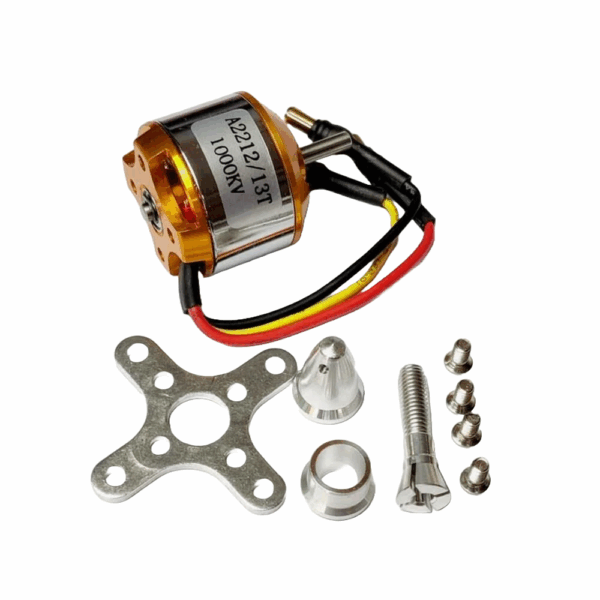

Package Includes:

• 1 x A2212 1000KV Brushless Motor
• 1 x Prop Adapter (Bullet Type)
• 1 x Cross Motor Mount
• 4 x Mounting Screws
