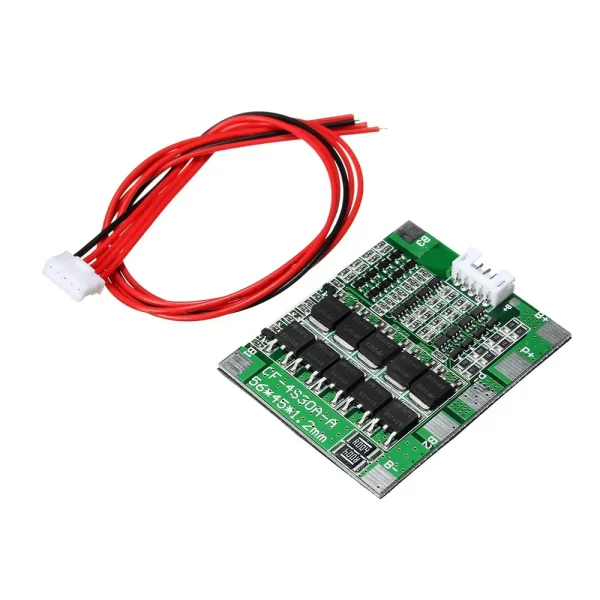

4S 14.8V 16.8V 30A 18650 Lithium Battery BMS Protection Board with Cable is a high-current 4-series (4S 14.8V nominal / 16.8V full charge) Battery Management System (BMS) module supplied with a detachable 5-wire JST balance sense harness. Engineered for 4-cell 18650, 21700, and 26650 lithium-ion battery packs, it supports up to 30A continuous discharge current (50A–60A peak overcurrent protection) with individual cell voltage monitoring and passive balancing to protect 16.8V power tools, solar storage banks, and e-mobility packs.
Key Features:
- 30A Continuous / 50A–60A Peak Current Capacity: Multi-MOSFET power switching bank delivers 30A continuous working current (~450W at 14.8V) with low conduction heat.
- Includes Plug-and-Play 5-Pin Sense Cable Harness: Allows you to solder the 5 cell-tap wires (`B-`, `B1`, `B2`, `B3`, `B+`) cleanly to your 4S cell pack first, verify cell voltages, and then plug the connector into the BMS board.
- Comprehensive 4S Protection & Balancing: Guards all 4 series cell groups against overcharge (4.25V/cell), over-discharge (2.55V/cell), overcurrent, and external short circuits while bleeding high cells during top-charging.
- Heavy-Current Solder Pads: Wide tinned copper lands (`B-`, `P-`, `B+`/`P+`) accommodate thick 12–14 AWG silicone power leads.
- Ultra-Low Standby Drain (≤30µA): Prevents self-discharge when 14.8V/16.8V battery packs sit idle.
Technical Specifications:
- Supported Battery Configuration: 4S (4 Series 3.7V Li-ion / 18650 / 21700 / 26650 Cells — 14.8V Nominal)
- Charging Voltage: 16.8V DC CC/CV
- Continuous Discharge Current: 30A Max
- Instantaneous Overcurrent Protection: 50A to 60A
- Overcharge Detection Voltage: 4.25V ± 0.05V per cell (Release: 4.15V ± 0.05V)
- Over-Discharge Detection Voltage: 2.55V ± 0.08V per cell (Release: 3.00V ± 0.10V)
- Quiescent Current: ≤ 30 µA | Internal Resistance: ≤ 20 mΩ
- Operating Temperature Range: -40°C to +85°C
Mechanical Specifications:
- PCB Material: FR-4 Double-Sided High-Copper Fiberglass PCB
- Interfaces: High-Current `B-` / `P-` / `B+`(`P+`) Solder Pads + 5-Pin JST Balance Socket with 100mm Wire Harness
Dimensions:
- Length: ~56 mm to 59 mm
- Width: ~45 mm
- Thickness: ~4.0 mm
- Weight: ~18 g (including cable harness)
Pinout and Wiring:
- B-: Connect thick wire (12–14 AWG) directly to Cell 1 Negative (Pack Negative 0V).
- P-: Connect thick wire to Load / Charger Negative (-).
- B+ / P+: Shared Pack Positive (14.8V/16.8V) — connect to Cell 4 Positive and Load / Charger Positive (+).
- 5-Wire Sense Harness (`B-`, `B1`, `B2`, `B3`, `B+`): Solder sequentially from Cell 1 Negative (`0V`) through `B1` (`3.7V`), `B2` (`7.4V`), `B3` (`11.1V`), to Cell 4 Positive (`14.8V`) before plugging the white connector into the BMS header.
Datasheet Reference:
- Protection Architecture: 4-Series Li-Ion Hardware Protection IC + Parallel Low-$R_R_DS(on) Power MOSFET Bank
Commonly Used in:
- 14.8V / 16.8V Cordless Drills, Screwdrivers, and Pruning Shears
- 4S2P / 4S4P 18650 Solar Off-Grid & Inverter Battery Banks
- 14.8V RC Boats, Underwater ROVs, and Heavy Robotics
- Portable 12V–16V High-Power LED Floodlights and Pumps
Applications:
- Streamlines assembly and servicing of 4S 14.8V/16.8V 30A lithium battery packs with its plug-in balance wire harness.
- Protects high-capacity 4S 18650 or 21700 packs driving DC motors, pumps, and inverters up to 450W.
- Pairs with a `4S 1.2A Lithium Battery Active Equalizer Module` (`PID 48295`) when active inductive balancing is desired.
Equivalent Models:
- 4S 30A High Current Li-ion Lithium Battery 18650 Charger Protection Board Module: Direct solder-pad 4S 30A BMS board (`PID 2700`).
- 4S 14.8V 16.8V 40A 18650 Lithium Battery BMS Protection Board with Balance: Direct solder-pad 4S 40A BMS board (`PID 22398`).
Package Includes:
- 1 × 4S 14.8V 16.8V 30A 18650 Lithium Battery BMS Protection Board with Cable
