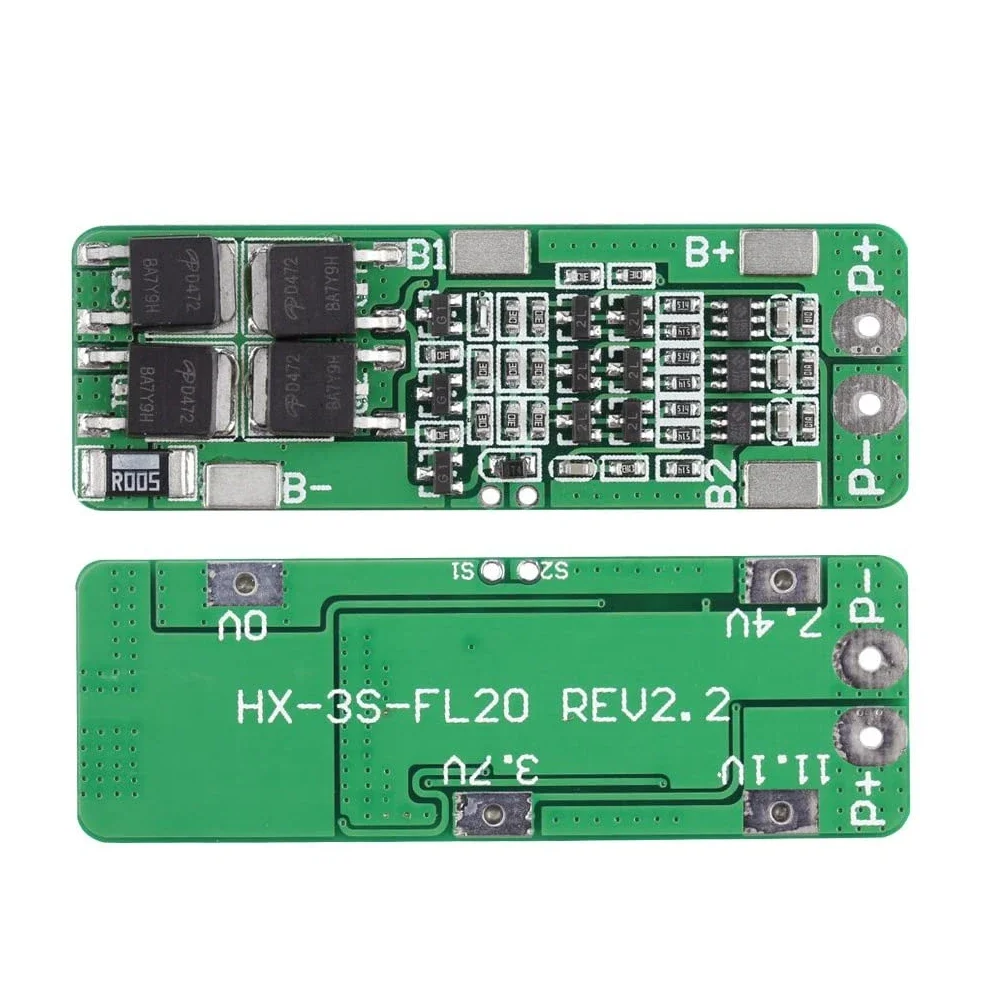

3S 12.6V 20A 18650 Li-ion Lithium Battery BMS Protection Board

₹62.72

In stock ?

In stock

3S 12.6V 20A 18650 Li-ion Lithium Battery BMS Protection Board is a high-drain 3-series (3S 11.1V nominal / 12.6V full charge) Battery Management System (BMS) module designed for 3-cell 18650, 21700, and 26650 lithium-ion battery packs. Capable of delivering up to 20A continuous discharge current (30A peak overcurrent protection) with automatic fault recovery, it safeguards 12V cordless drills, high-power LED floodlights, DC motors, and solar battery banks against overcharging, over-discharging, overcurrent, and short circuits.

Key Features:
  • 20A Continuous / 30A Peak Discharge Capacity: Low-resistance parallel power MOSFET bank supports 20A continuous load current (~240W at 12V) for high-torque DC motors and power tools.
  • Complete 3-Cell (3S) Protection Suite: Monitors each cell tap (`B-`, `B1`, `B2`, `B+`) to cut off charging above 4.25V/cell and stop discharging below 2.70V/cell.
  • Automatic Short-Circuit & Overcurrent Recovery: Instantly trips on external short circuits or surges above 30A ±5A and recovers automatically when the fault is cleared or charger is applied.
  • Low Quiescent Current (<30µA): Draws negligible standby current so 12V battery packs stay charged during storage.
  • Wide High-Current Solder Pads: Large tinned copper pads (`B-`, `B1`, `B2`, `B+`, `P+`, `P-`) accept thick 14–16 AWG wire or pure nickel strips.
Technical Specifications:
  • Supported Battery Configuration: 3S (3 Series 3.7V Li-ion / 18650 / 26650 / LiPo Cells — 11.1V Nominal)
  • Charging Voltage: 12.6V DC CC/CV (13.0V Max)
  • Continuous Discharge Current: 20A Max (Ensure adequate airflow/cooling above 15A)
  • Continuous Charge Current: Up to 10A Max
  • Overcurrent Protection Threshold: 30A ± 5A
  • Overcharge Detection Voltage: 4.25V ± 0.05V per cell (Release: 4.15V ± 0.05V)
  • Over-Discharge Detection Voltage: 2.70V ± 0.10V per cell (Release: 3.00V ± 0.10V)
  • Quiescent Current: < 30 µA
  • Operating Temperature Range: -40°C to +85°C
Mechanical Specifications:
  • PCB Material: FR-4 Double-Sided High-Copper Fiberglass PCB (~1.2mm–1.6mm Board Thickness)
  • Terminals: 6 × Tinned Solder Pads (`B-`, `B1`, `B2`, `B+`, `P+`, `P-`)
Dimensions:
  • Length: ~56 mm to 59 mm
  • Width: ~45 mm (or 20mm slim variant depending on batch)
  • Height: ~3.5 mm
  • Weight: ~9 g
Pinout and Wiring:
  • B- (0V): Connect to Cell 1 Negative terminal.
  • B1 (3.7V): Connect to the series junction between Cell 1 Positive and Cell 2 Negative.
  • B2 (7.4V): Connect to the series junction between Cell 2 Positive and Cell 3 Negative.
  • B+ (11.1V/12.6V): Connect to Cell 3 Positive terminal.
  • P+ & P-: Connect to the 12V load and 12.6V CC/CV charger.
  • First-Power Activation: After wiring `B-` → `B1` → `B2` → `B+` in strict order, apply 12.6V charging power to `P+`/`P-` for 1–2 seconds to initialize the BMS output.
Datasheet Reference:
  • Protection Architecture: 3-Series Li-Ion Protection Controller IC + Parallel N-Channel Power MOSFET Bank
Commonly Used in:
  • 12V Cordless Drills, Screwdrivers, and Angle Grinders
  • 3S1P / 3S2P / 3S3P 18650 Solar & UPS Battery Packs
  • 12V Car Vacuum Cleaners, Tire Inflators, and Sprayer Pumps
  • High-Power 12V Robotics, RC Boats, and LED Floodlights
Applications:
  • Converts legacy 12V NiCd cordless drill battery packs to high-capacity 3S 18650 lithium-ion power.
  • Protects 3S2P or 3S3P 18650 packs driving 12V DC gearmotors, diaphragm pumps, and 100W LED arrays.
  • Prevents cell over-discharge and thermal runaway in custom 12V portable power stations.
Equivalent Models:
  • 3S 12V 25A 18650 Lithium Battery Protection Board: 25A 3S BMS with passive cell balancing resistors.
  • 3S 40A 18650 Lithium Battery Protection Board: Heavy-duty 40A enhanced/balanced 3S BMS for high-inrush drill motors.
Package Includes:
  • 1 × 3S 12.6V 20A 18650 Li-ion Lithium Battery BMS Protection Board
Weight 6 g
Dimensions 60 × 20 × 3 mm
