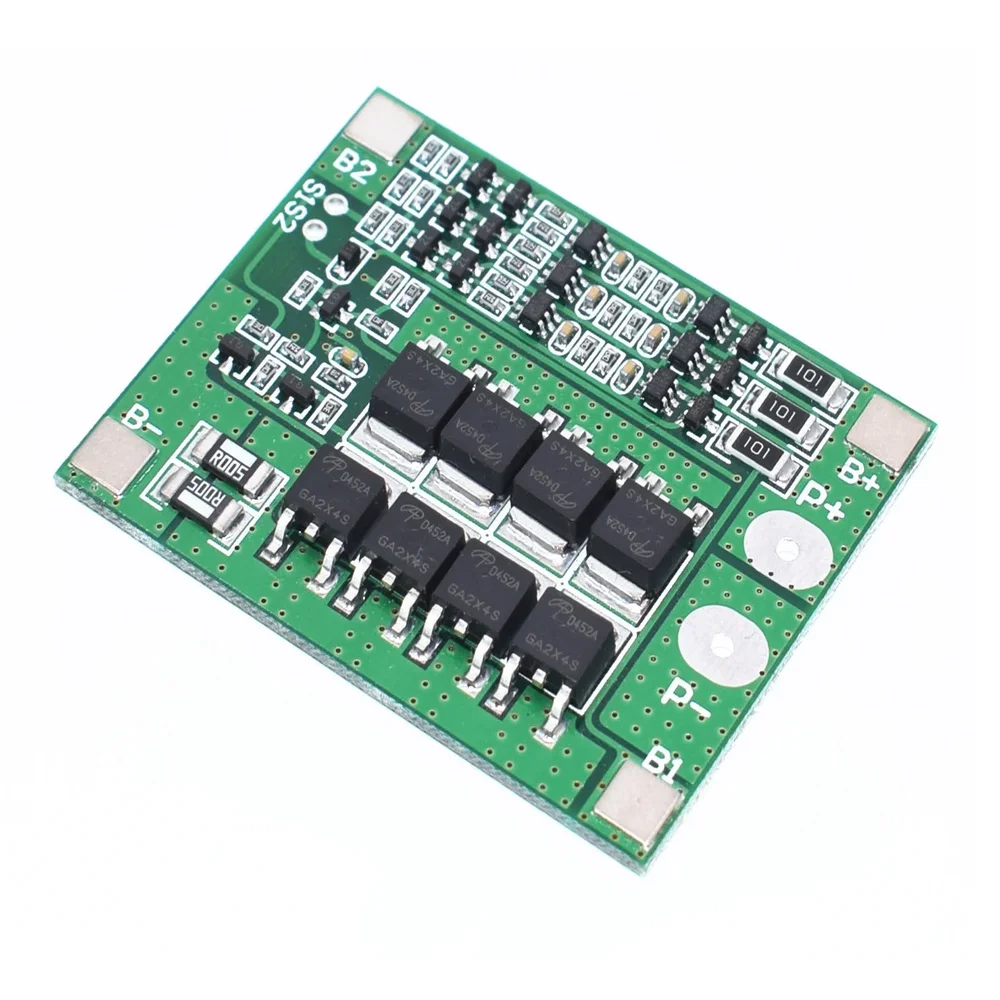

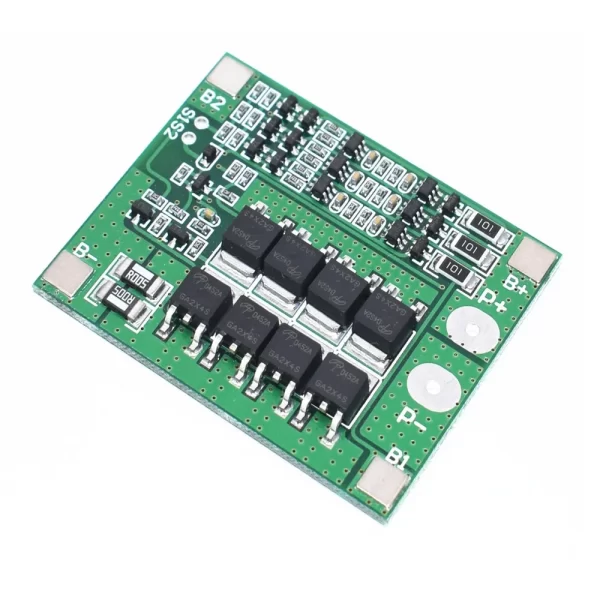

3S 12V 25A 18650 Lithium Battery BMS Protection Board with Balance

₹149.00

In stock ?

In stock

3S 12V 25A 18650 Lithium Battery BMS Protection Board with Balance is a high-performance 3-series (3S 11.1V nominal / 12.6V full charge) Battery Management System (BMS) PCB engineered for 3-cell 18650, 21700, and 26650 lithium-ion battery packs. Delivering 25A continuous discharge current (50A–60A peak overcurrent protection) alongside integrated passive cell-balancing bleed resistors, it provides both heavy-duty protection and automatic cell equalization on a single compact board.

Key Features:
  • 25A Continuous Discharge with Built-In Cell Balancing: Combines a 25A multi-MOSFET power switching stage (~300W at 12V) with onboard 3-channel passive bleed balancing (~35mA–60mA at 4.20V).
  • Comprehensive 4-Way Safety Protection: Independently monitors `B-`, `B1`, `B2`, and `B+` to protect against overcharge (4.25V/cell), over-discharge (2.70V/cell), overcurrent (50A–60A), and output short circuits.
  • Split / Common Port Wiring Flexibility: Provides large solder pads (`B-`, `B1`, `B2`, `B+`, `P+`, `P-`) suitable for 14–16 AWG silicone wires or pure nickel strips.
  • Ultra-Low Standby Quiescent Drain (<50µA): Minimizes self-discharge so 12V backup and tool packs stay charged in storage.
  • Thick Copper Thermal Design: Heavy copper pours and low-$R_R_DS(on) MOSFETs keep voltage drop and board heating minimal under continuous 12V loads.
Technical Specifications:
  • Supported Battery Configuration: 3S (3 Series 3.7V Li-ion / 18650 / 21700 / 26650 / LiPo Cells — 11.1V Nominal)
  • Maximum Charging Voltage: 12.6V DC CC/CV (4.20V × 3)
  • Continuous Discharge Current: 25A Max
  • Recommended Charging Current: Up to 10A Max
  • Overcurrent / Short-Circuit Cutoff: ~50A to 60A Instantaneous Trip
  • Overcharge Detection Voltage: 4.25V ± 0.05V per cell (Release: 4.15V ± 0.05V)
  • Over-Discharge Detection Voltage: 2.70V ± 0.10V per cell (Release: 3.00V ± 0.10V)
  • Cell Balancing Type & Current: Passive Bleed Balancing (~35 mA to 60 mA near 4.20V)
  • Quiescent Current: < 50 µA | Operating Temp: -20°C to +60°C
Mechanical Specifications:
  • PCB Material: FR-4 Double-Sided High-Copper Fiberglass PCB
  • Terminals: 6 × Wide Tinned Solder Pads (`B-`, `B1`, `B2`, `B+`, `P+`, `P-`)
Dimensions:
  • Length: ~56 mm
  • Width: ~45 mm
  • Thickness: ~4.0 mm
  • Weight: ~13 g
Pinout and Wiring:
  • B- (0V): Connect to Cell 1 Negative terminal (Pack Negative).
  • B1 (3.7V): Connect to the junction between Cell 1+ and Cell 2-.
  • B2 (7.4V): Connect to the junction between Cell 2+ and Cell 3-.
  • B+ (11.1V/12.6V): Connect to Cell 3 Positive terminal (Pack Positive).
  • P+ & P-: Connect to 12V load and 12.6V CC/CV charger.
Datasheet Reference:
  • Protection Architecture: 3-Series Li-Ion BMS Supervisor IC + 3-Channel Bleed Resistor Network + Parallel Power MOSFET Stage
Commonly Used in:
  • 12V (3S) Cordless Drills, Screwdrivers, and Pruning Saws
  • 3S2P / 3S3P / 3S4P 18650 Solar & UPS Backup Battery Banks
  • 12V High-Power LED Floodlights, Diaphragm Pumps, and Blowers
  • Robotics, Tracked Rovers, and RC Boats
Applications:
  • Builds balanced, high-current 12V (11.1V–12.6V) 18650 battery packs capable of driving 12V DC motors, pumps, and inverters up to 300W.
  • Eliminates the need for a separate external balancer board thanks to its onboard passive balancing resistors.
  • Direct drop-in upgrade for 12V lead-acid batteries in portable sprayers and emergency lighting boxes.
Equivalent Models:
  • 3S 12.6V 20A 18650 Li-ion Lithium Battery BMS Protection Board: 20A 3S BMS board (`PID 2702`).
  • 3S 40A 18650 Lithium Battery Protection Board: Higher-current 40A 3S balanced BMS board (`PID 22419`).
Package Includes:
  • 1 × 3S 12V 25A 18650 Lithium Battery BMS Protection Board with Balance
Weight 30 g
Dimensions 55 × 45 × 3 mm
