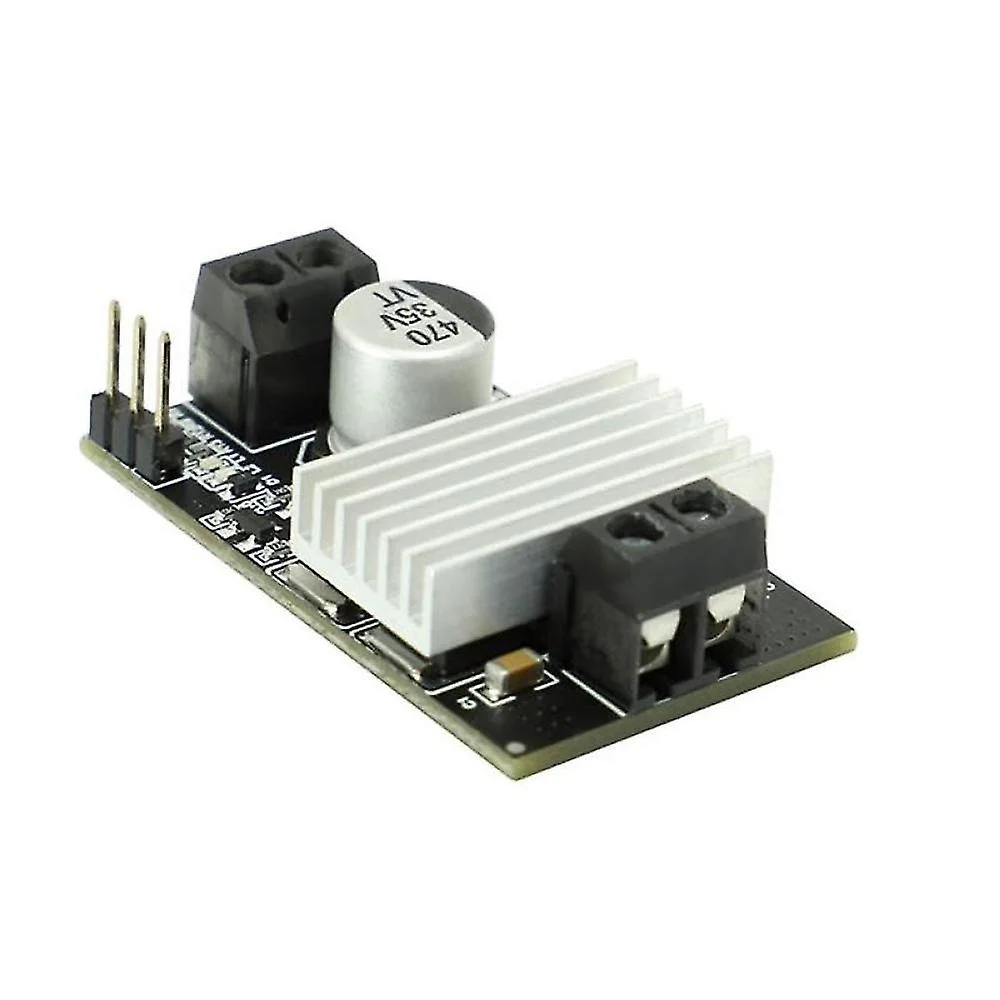

XY-MC10 10A High Power PWM DC Motor Drive Module

XY-MC10 10A High Power PWM DC Motor Drive Module is a robust and highly efficient motor controller designed to precisely regulate the speed and direction of DC motors in demanding robotics and automation projects. This high-performance driver handles continuous currents up to 10A, which makes it perfect for driving medium-to-large brushed DC motors. Consequently, it offers a significant power upgrade over standard entry-level drivers that easily overheat under load. Furthermore, the module incorporates advanced PWM speed control and full H-bridge capabilities, allowing engineers to implement smooth forward and reverse operations. Therefore, you should integrate the XY-MC10 into heavy-duty applications that require reliable heat dissipation and seamless high-current management.

Key Features:

• High Current Capacity: Delivers a sustained 10A of continuous output current, accommodating the rigorous demands of large brushed DC motors without failing.
• Wide Voltage Range: Supports a broad operating voltage spectrum, providing maximum flexibility for diverse battery and industrial power supply configurations.
• PWM Speed Regulation: Enables precise motor speed control via external Pulse Width Modulation signals. Moreover, it ensures extremely smooth acceleration and deceleration profiles.
• Built-in Protection: Features thermal shutdown and over-current protection mechanisms to safeguard both the motor and the control circuitry during extreme stall conditions.
• Optocoupler Isolation: Utilizes isolated input terminals to protect the sensitive host microcontroller from high-voltage spikes generated by the mechanical load.

Technical Specifications:

• Operating Voltage (V_CC): 5 V to 30 V DC
• Continuous Output Current: 10 A
• Peak Output Current: 15 A (for brief surge durations)
• PWM Frequency Range: 0 kHz to 20 kHz
• Control Signal Voltage: 3.3 V to 5.0 V (Logic Level Compatible)
• Operating Temperature Range: −20°C to +85°C

Mechanical Specifications:

• Board Material: High-grade FR-4 Glass Epoxy
• Cooling Mechanism: Large aluminum heatsink ensuring optimal thermal dissipation
• Connectors: Heavy-duty screw terminal blocks for secure power and motor cable connections
• Mounting Options: Four pre-drilled M3 holes designed for robust chassis installation

Dimensions:

• Module Length: ≈ 60.0 mm
• Module Width: ≈ 50.0 mm
• Overall Height: ≈ 25.0 mm (including the heatsink)
• Weight: ≈ 45 g

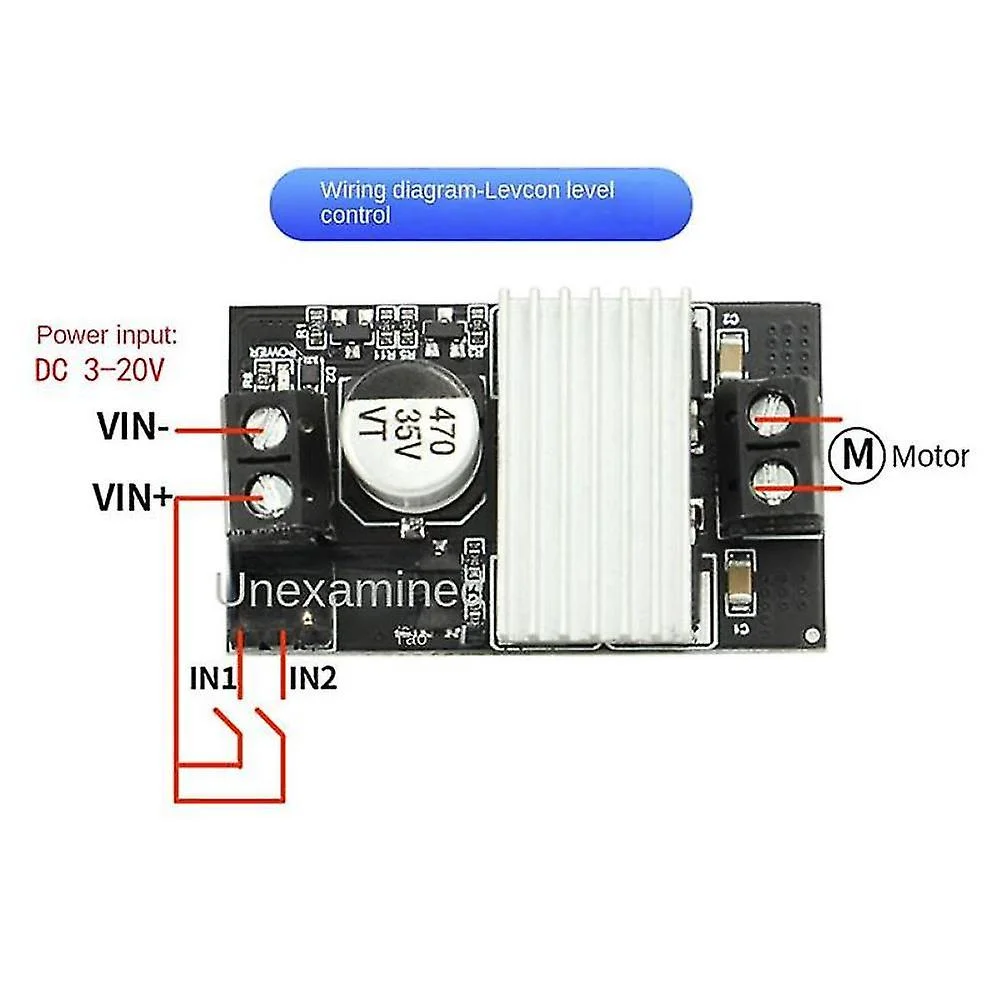

Pinout and Wiring:

• VCC / GND: Connect these terminals to your primary DC power supply (e.g., a 12V or 24V battery).
• Motor+ / Motor-: Connect these heavy-duty screw terminals directly to your brushed DC motor.
• IN1 / IN2: Apply logic signals from your microcontroller to dictate the motor’s rotational direction.
• PWM/EN: Feed a Pulse Width Modulation signal to this pin to dictate the motor speed. However, you must ensure the PWM frequency matches the hardware specifications to prevent audible whining.

Datasheet Reference:

• Download 10A H-Bridge Motor Driver Reference Datasheet

Commonly Used in:

• Mobile Robotics: Driving heavy-duty wheels and tracks on combat robots, rovers, and autonomous guided vehicles (AGVs).
• Industrial Automation: Controlling linear actuators, conveyor belts, and automated sorting mechanisms efficiently.
• Electric Vehicles: Managing propulsion systems in custom e-bikes, motorized scooters, and automated carts.

Applications:

• Precise Speed Control: Adjusting the rotational velocity of heavy loads using high-frequency PWM without losing essential torque.
• Automated Positioning: Moving robotic arms and heavy structural components to specific coordinates dynamically.
• Winch and Hoist Systems: Consequently, operating lifting mechanisms that require robust bidirectional control and high holding torque.

Equivalent Models:

• BTS7960 43A Driver: A much larger motor controller that offers significantly higher current capacity for extreme industrial applications.
• IBT-2 Module: A widely used high-power H-bridge module based on Infineon chips, providing highly similar performance characteristics.
• L298N Module: A basic alternative for lower-power projects; nevertheless, it struggles with anything over 2A of continuous current.

Package Includes:

• 1 x XY-MC10 10A High Power PWM DC Motor Drive Module
