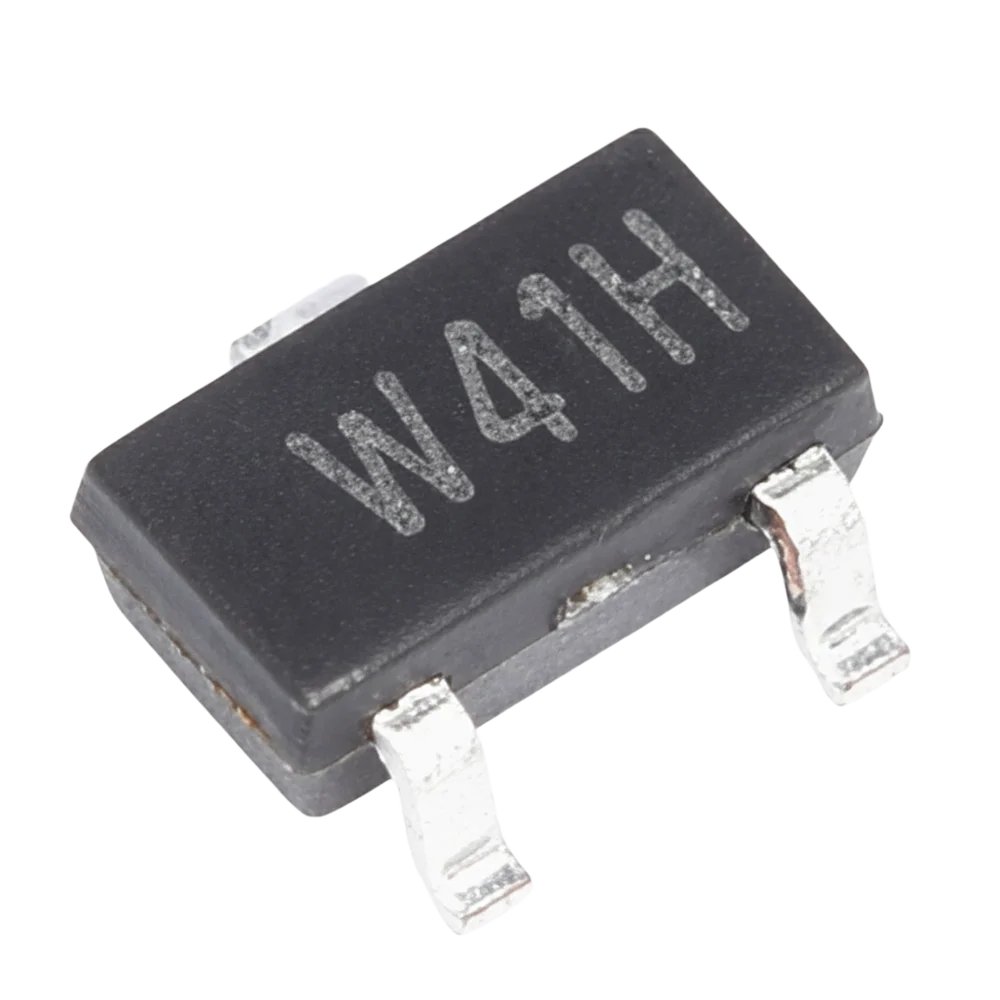

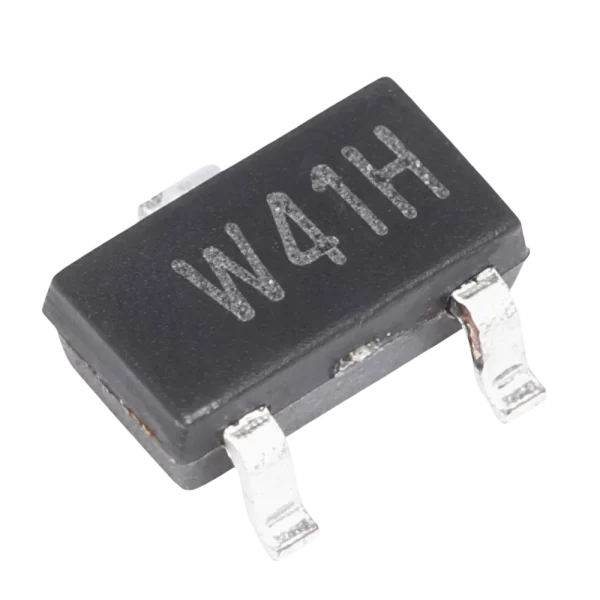

W41A 20V 3.5A P-Channel Power MOSFET SOT-23

W41A 20V 3.5A P-Channel Power MOSFET SOT-23 serves as a highly efficient switching component designed specifically for low-voltage power management and battery-operated applications. This P-Channel enhancement mode MOSFET utilizes advanced trench technology to provide exceptionally low on-state resistance (R_DS(on)) within a miniature SOT-23 footprint. Consequently, it minimizes power dissipation and heat generation, allowing for higher current density in compact PCB designs. Furthermore, the device features a low gate threshold voltage, which enables direct operation from standard logic levels and low-voltage battery sources. Therefore, designers frequently select the W41A for load switching, PWM applications, and protection circuits where space and energy efficiency remain paramount.

Key Features:

• High-Speed Switching: The low gate charge and optimized internal structure ensure rapid transition times, effectively reducing switching losses in high-frequency circuits.
• Low On-Resistance: This MOSFET offers a very low R_DS(on) to maximize current flow efficiency and reduce the overall voltage drop across the device.
• Logic Level Compatibility: Its low gate-to-source threshold voltage allows for seamless integration with 1.8V, 2.5V, and 3.3V microcontrollers.
• Compact SOT-23 Package: The ultra-small surface-mount design helps save significant board space in modern, high-density electronic assemblies.
• Lead-Free and Green: Manufacturers produce this component using environmentally friendly materials that comply with RoHS standards.

Technical Specifications:

• Drain-Source Voltage (V_DSS): −20 V
• Continuous Drain Current (I_D): −3.5 A (at 25°C)
• Pulsed Drain Current (I_DM): ≈ −15 A
• Gate-Source Voltage (V_GSS): ±12 V
• Drain-Source On-Resistance (R_DS(on)): ≈ 45 mΩ (at V_GS = −4.5V)
• Gate Threshold Voltage (V_GS(th)): −0.45 V to −1.2 V
• Power Dissipation (P_D): 1.25 W (Typical)
• Operating Junction Temperature: −55°C to +150°C

Mechanical Specifications:

• Package Type: SOT-23 (Surface Mount Device)
• Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminal Connections: See Pinout Diagram

Dimensions:

• Body Length: ≈ 2.92 mm
• Body Width: ≈ 1.30 mm
• Total Height: ≈ 1.12 mm
• Lead Spread: ≈ 1.92 mm

Pinout and Wiring:

• Pin 1 (Gate): Controls the state of the MOSFET; applying a negative voltage relative to the source activates the device.
• Pin 2 (Source): Connects to the positive supply or the input side of the high-side load switch.
• Pin 3 (Drain): Connects to the load. However, ensure the load current does not exceed the maximum rated drain current.
• Wiring Tip: Since this is a P-Channel MOSFET, you typically use it for high-side switching by pulling the gate low to turn it on.

Datasheet Reference:

• Download W41A P-Channel MOSFET Datasheet

Commonly Used in:

• Power Management Circuits: Efficiently distributing power within portable gadgets and handheld instruments.
• Battery Protection: Serving as a high-side disconnect in lithium-ion battery charging and protection modules.
• LED Driving: Switching high-current LED arrays in mobile devices or decorative lighting.

Applications:

• High-Side Load Switching: Controlling power to specific sub-circuits to save energy during sleep modes.
• DC-DC Converters: Functioning as a pass element or switch in small buck or boost converters.
• Reverse Polarity Protection: Preventing damage to sensitive electronics if batteries are installed incorrectly.
• Handheld Electronics: Integrated into smartphones, tablets, and wearables due to the small SOT-23 footprint.

Equivalent Models:

• Si2301DS: A widely used P-Channel MOSFET with similar current and voltage ratings in an SOT-23 package.
• AO3401A: Offers comparable on-resistance and current handling capabilities for low-voltage power switching.
• BSS84: However, note that the BSS84 has much lower current capacity and is only suitable for signal-level switching.

Package Includes:

• 1 x W41A 20V 3.5A P-Channel Power MOSFET SOT-23
