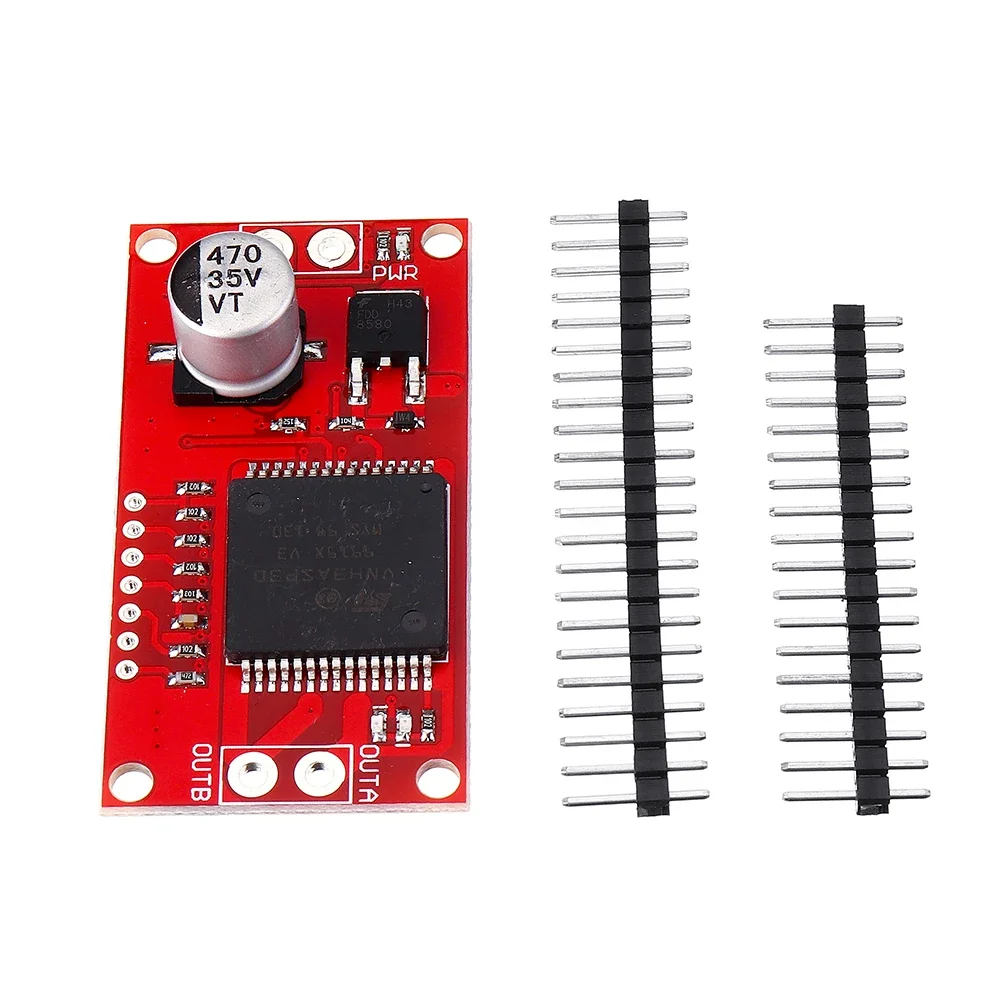

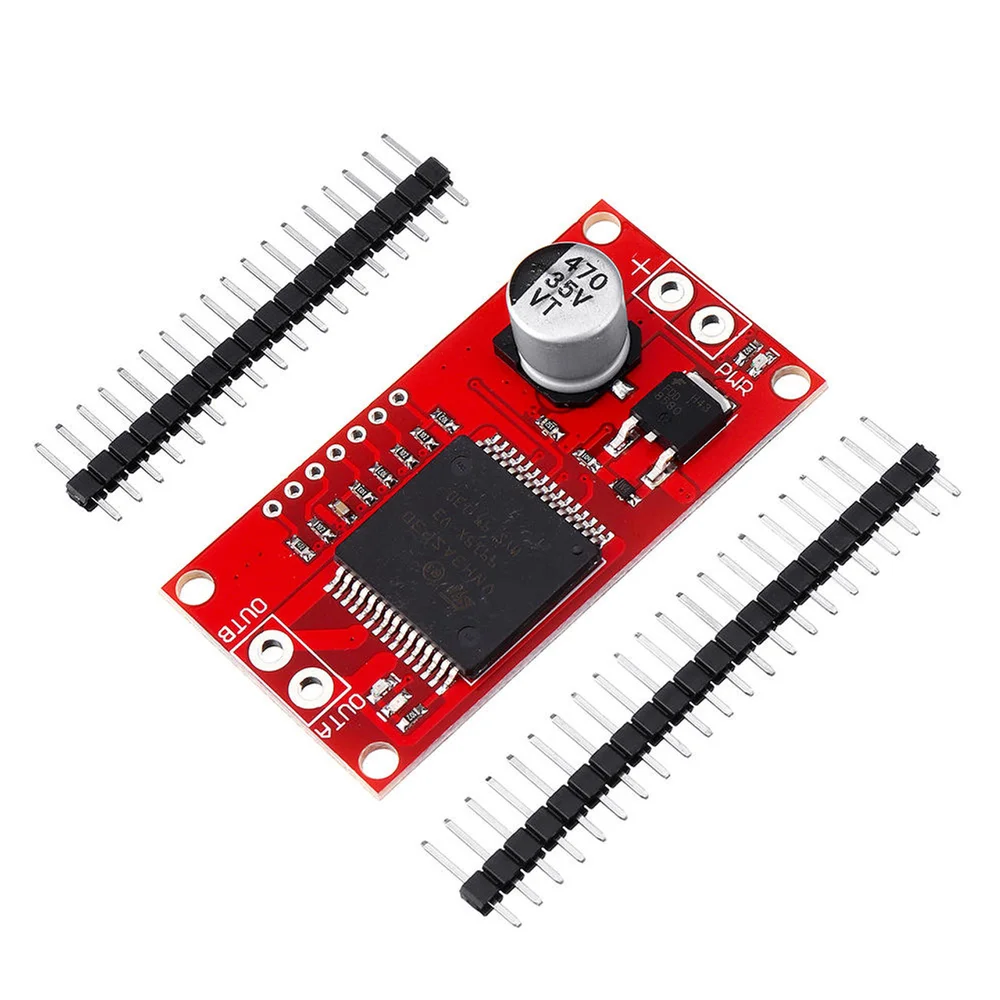

VNH2SP30 30A Single Monster Motor Driver Module

VNH2SP30 30A Single Monster Motor Driver Module is a robust, high-current H-bridge motor driver built around the powerful STMicroelectronics VNH2SP30 IC, designed specifically for driving large DC motors and heavy loads. This module provides a safe, efficient interface between low-voltage microcontrollers and high-current mechanical systems. Consequently, it handles continuous currents up to 30 A and can manage peak currents up to 60 A, making it an excellent choice for demanding robotics and automotive applications. Furthermore, the VNH2SP30 integrates protection features like thermal shutdown and undervoltage lockout, which significantly enhance the system’s durability and reliability. Utilize this single-channel monster driver to achieve precise speed and direction control over your most power-hungry motors.

Key Features:

• High Current Capability: The module drives continuous loads up to 30 A, and simultaneously handles instantaneous peak currents of up to 60 A, supporting large brushed DC motors.
• PWM Speed Control: It offers full Pulse Width Modulation (PWM) control for precise motor speed management, functioning effectively at frequencies up to 20 kHz.
• Integrated Protection: Built-in safeguards include thermal shutdown protection, current limiting, and undervoltage lockout, ensuring robust and long-term operation.
• Diagnostic Feedback: A dedicated current sense pin provides an analog voltage proportional to the load current, allowing the microcontroller to monitor motor usage and detect stalls.
• Low R_DS(on): The low MOSFET On-Resistance (typically 19 mΩ total) minimizes power dissipation and improves overall efficiency.

Technical Specifications:

• Driver IC: VNH2SP30 (Single H-Bridge)
• Operating Voltage Range (V_in): 5.5 V to 16 V (Absolute Max 41 V)
• Continuous Output Current (I_out): 30 A (Limited by thermal dissipation)
• Maximum Peak Current: 60 A (for a few milliseconds)
• Maximum PWM Frequency: 20 kHz
• Logic Operating Voltage: 3.0 V to 5.5 V (Fully 5V compatible)
• Current Sense Output: V_CS = I_out × 0.1 V/A

Mechanical Specifications:

• Package Type: Through-Hole Module with Screw Terminals
• Cooling: Features a large onboard heat sink to dissipate heat effectively during high-current operations.
• Terminals: Utilizes heavy-duty screw terminals for secure connection of thick motor and power wires.
• Mounting Holes: Includes standard mounting holes for fixed installation in robot chassis or control boxes.

Dimensions:

• Module Length: ≈ 67 mm
• Module Width: ≈ 35 mm
• Module Height (including Heatsink): ≈ 16 mm
• Weight: ≈ 35 g
• Connection Type: Screw terminals for power/motor and 0.1″ pitch headers for logic.

Pinout and Wiring:

• VCC/GND: Connect to the motor power supply (5.5 V to 16 V).
• OUT A/OUT B: These screw terminals connect directly to the two terminals of the DC motor.
• EN (Enable): Drive this pin HIGH to enable the chip. Pulling it LOW disables the driver.
• IN A/IN B: These logic inputs control the motor’s direction (e.g., IN A=HIGH, IN B=LOW for one direction).
• PWM: Connect your microcontroller’s PWM output here to control the motor’s speed.
• CS (Current Sense): Provides a voltage feedback signal (V_CS) proportional to the motor current.

Datasheet Reference:

• Download STMicroelectronics VNH2SP30 Datasheet

Commonly Used in:

• High-Power Robotics: Driving large wheels, arms, and mechanisms in battlebots, UAVs, and industrial robots.
• DIY Electric Vehicles: Controlling power steering, actuators, or small electric propulsion systems.
• Industrial Automation: Operating solenoid valves, high-current dampers, and linear actuators.

Applications:

• Bidirectional DC Motor Control: Provides full H-bridge functionality for forward and reverse motor operation.
• Current Monitoring Systems: Uses the current sense output to implement closed-loop current feedback or stall detection.
• High-Frequency PWM Control: Essential for minimizing audible motor noise and improving motor torque control precision.
• Automotive Prototyping: Due to its robust nature, it is often utilized in non-critical automotive prototyping systems.

Equivalent Models:

• BTS7960 Motor Driver: A common alternative offering similar high current capabilities using two half-bridge ICs.
• L298N (for low current): However, the L298N is significantly lower current (2A max) and not a direct substitute for this “Monster” driver.
• Cytron MDDS30: Another dual-channel, high-current driver often considered when a two-motor solution is necessary.

Package Includes:

• 1 x VNH2SP30 30A Single Monster Motor Driver Module
