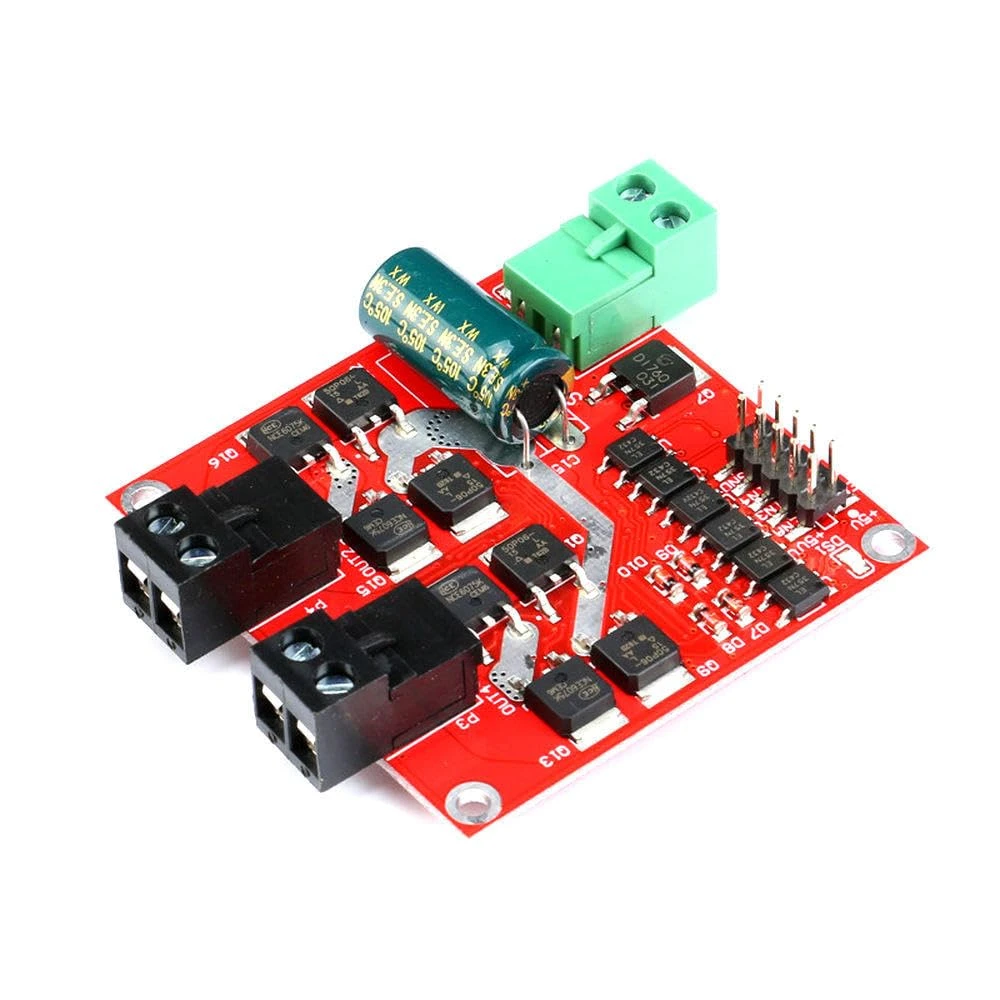

9-24V 7A H-bridge 160W Dual DC Motor Driver Module

₹629.00

In stock ?

In stock

Category: Brand:

9-24V 7A H-bridge 160W Dual DC Motor Driver Module is an industrial-grade, optocoupler-isolated dual H-bridge motor driver board designed to power two brushed DC motors with continuous currents up to 7A per channel (160W total). Operating across an input voltage range of 6.5V to 27V DC, this module features optical isolation on all logic control lines, isolating sensitive microcontrollers (Arduino, STM32, PLC) from inductive electrical noise and ground loops. Equipped with onboard transient voltage suppression (TVS) diodes, undervoltage lockout, and robust pluggable screw terminal headers, it delivers exceptional electromagnetic compatibility (EMC) and bulletproof reliability in demanding industrial and robotics environments.

Key Features:
  • Dual High-Power H-Bridges: Independently controls two DC motors with up to 7A continuous current per channel.
  • Complete Optocoupler Isolation: High-speed optical isolators isolate logic control signals from motor supply noise.
  • Wide Working Voltage: Accommodates 6.5V to 27V DC power sources (nominal 9V, 12V, and 24V systems).
  • Enhanced EMC & TVS Protection: Onboard heavy-duty TVS diodes suppress inductive back-EMF spikes and electrostatic discharge (ESD).
  • High-Frequency PWM Control: Supports PWM switching speeds up to 10 kHz with minimum valid pulse widths down to 5 μs.
  • Pluggable Screw Terminals: Industrial plug-in terminal blocks enable rapid wiring, testing, and field replacement.
Technical Specifications:
  • Motor Supply Voltage (Nominal): 7V to 24V DC
  • Motor Supply Voltage (Limits): 6.5V to 27V DC
  • Continuous Output Current: 7 A per channel
  • Peak Output Current: Up to 15 A per channel (short duration)
  • Total Continuous Power: 160 W
  • Logic Control Voltage: 3.3V to 5.0V DC (Optocoupler input)
  • Speed Control Method: PWM (Minimum valid pulse width: 5 μs)
  • Operating Temperature Range: -25°C to +85°C
Mechanical Specifications:
  • PCB Structure: Double-layer 2 oz high-copper FR-4 industrial PCB
  • Mounting: 4 x M3 corner mounting holes for rigid chassis attachment
  • Connectors: Pluggable industrial screw terminal blocks for motor outputs and power inputs
  • Control Interface: 0.1-inch (2.54 mm) male header for microcontroller logic connections
  • Weight: Approximately 32 grams
Dimensions:
  • Length: 55 mm
  • Width: 55 mm
  • Height: 16 mm
Pinout and Wiring:
  • VCC / +24V: Motor Power Supply Positive Input (6.5V–27V DC)
  • GND: Motor Power Supply Ground
  • IN1 / IN2: Optoisolated directional and PWM control inputs for Motor 1
  • IN3 / IN4: Optoisolated directional and PWM control inputs for Motor 2
  • ENA / ENB: Enable / PWM speed modulation pins (Active HIGH)
  • MOTOR 1 Terminals: Pluggable terminal block connecting to Brushed DC Motor 1
  • MOTOR 2 Terminals: Pluggable terminal block connecting to Brushed DC Motor 2
Datasheet Reference:
  • Refer to the 160W Dual DC Motor Driver Module engineering manual and optocoupler interface application note.
Commonly Used in:
  • Heavyweight autonomous mobile robots (AMRs) and competitive robotics platforms
  • Industrial automated guided carts (AGCs) and warehouse material conveyors
  • Medical mobility scooters, motorized lift chairs, and hospital beds
  • Solar tracker dual-axis motor actuators and outdoor motorized mechanisms
Applications:
  • High-Torque Mobile Robotics: Bi-directional skid-steer speed regulation for 12V/24V robotic drivetrains.
  • Optoisolated PLC Motor Control: Interfacing 24V industrial PLC digital outputs directly with DC motors without ground noise.
  • Linear Actuator Positioning: Driving heavy-load 12V/24V motorized linear actuators with smooth reversing.
  • Conveyor Automation: Regulating speed and direction for factory automated packaging and sorting lines.
Equivalent Models:
  • BTS7960 43A Motor Driver: Higher-current single-channel driver capable of handling up to 43A continuous.
  • VNH2SP30 Monster Moto Shield: Dual 14A continuous motor driver shield operating up to 16V.
  • Cytron MDD10A: Dual-channel 10A continuous smart motor driver with onboard manual test buttons.
  • L298N Dual Motor Driver: Lower power (2A continuous) legacy driver without optical isolation.
Package Includes:
  • 1 × 9-24V 7A H-bridge 160W Dual DC Motor Driver Module
Weight 35 g
Dimensions 55 × 55 × 20 mm
INPUT VOLTAGE

9-24V

SIGNAL VOLTAGE

3.3 to 5 V
