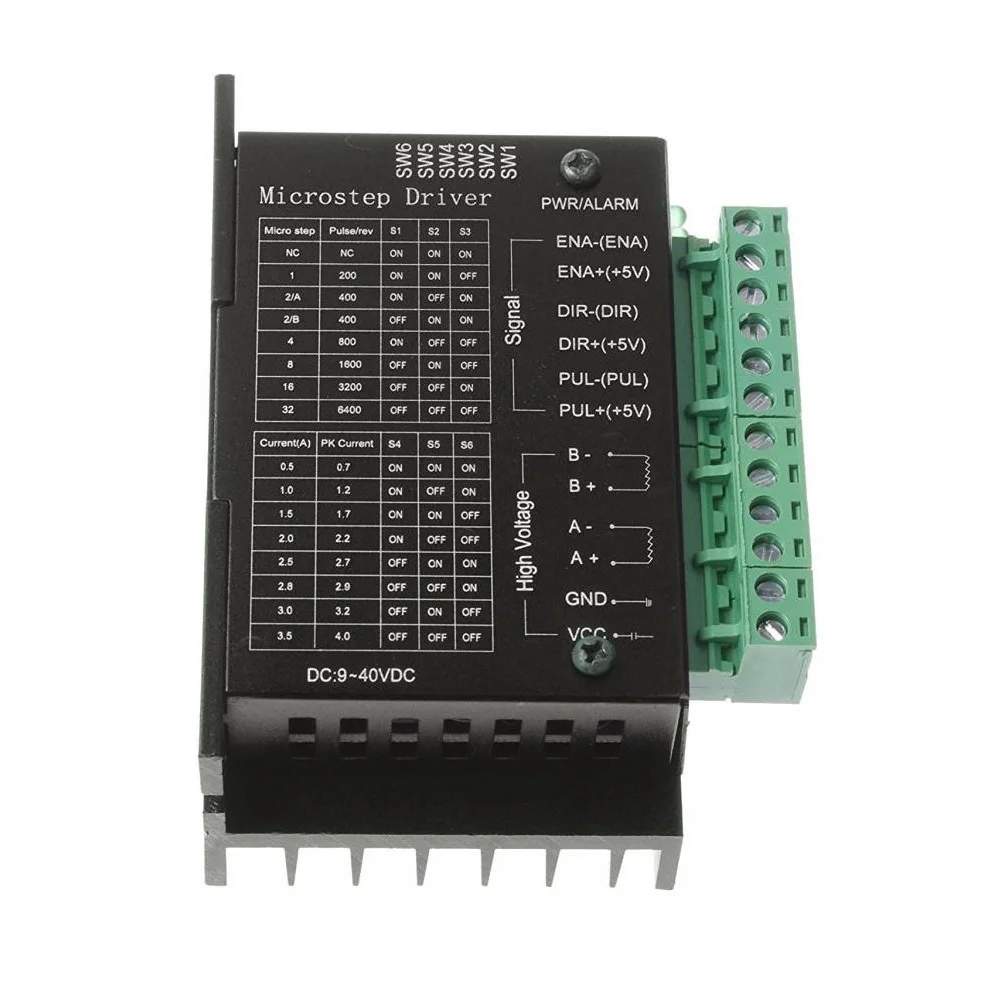

TTB6600 Stepper Motor Driver Controller 4A 9~42V TTL 32 Micro-Step

TTB6600 Stepper Motor Driver Controller is a high-performance stepper motor driver based on the TB6600 IC. It supports a wide voltage range of 9V to 42V DC and delivers up to 4A peak current per phase. With 32 micro-stepping resolutions and TTL-compatible inputs, it’s ideal for CNC machines, 3D printers, robotics, and other motion control applications requiring precision and reliability.

Key Features:

• Microstep Resolution: Supports 32-level microstepping for ultra-smooth motion.
• Wide Voltage Range: Operates from 9V to 42V DC input.
• High Current Output: Up to 4.0A peak current (adjustable).
• TTL Signal Compatible: Easy interface with Arduino, STM32, Raspberry Pi, etc.
• Opto-Isolated Inputs: Ensures signal integrity and protection.
• Built-in Protection: Over-voltage, under-voltage, short-circuit, and over-temperature protection.

Technical Specifications:

• Input Voltage: 9V – 42V DC
• Output Current: 0.5A – 4.0A (adjustable via DIP switches)
• Control Signal: TTL compatible (5V logic)
• Microstep Settings: Full, 1/2, 1/4, 1/8, 1/16, 1/32
• Input Current: >40mA
• Insulation Resistance: 100MΩ min at 500V DC
• Operating Temp: -10°C to +50°C

Mechanical Specifications:

• Driver IC: Toshiba TB6600
• PCB Size: Approx. 96mm x 56mm x 33mm
• Mounting: Through-hole or case-mounted
• Cooling: Aluminum heatsink + cooling slots
• Weight: Approx. 130g

Wiring and Pinout:

• PUL+ / PUL-: Pulse signal input (step)
• DIR+ / DIR-: Direction signal input
• ENA+ / ENA-: Enable signal input (optional)
• A+ / A-: Stepper motor coil A connection
• B+ / B-: Stepper motor coil B connection
• VCC / GND: DC power supply input

Microstep & Current Settings (via DIP Switches):

• Microstep: Configurable from full-step to 1/32-step using SW5–SW8
• Current: Configurable from 0.5A to 4.0A using SW1–SW3

Datasheet and Documentation:

• Download TTB6600 Datasheet and DIP Switch Configuration Table (PDF)

Applications:

• CNC Routers and Milling Machines: Controls X, Y, Z stepper motors precisely.
• 3D Printers: Ensures smooth layer movement and position accuracy.
• Robotic Arms: Drives multiple axes with coordinated control.
• Laser Engraving Machines: Moves laser head with high precision.
• Automated Positioning Systems: Enables programmable motion in industrial setups.

Equivalent Models:

• TB6600 Stepper Driver: Nearly identical specification; often used interchangeably.
• DM542: Advanced version with better torque performance and smooth stepping.
• TB6560: Lower current (3A max), entry-level alternative.

Package Includes:

• 1 x TTB6600 Stepper Motor Driver Controller 4A 9~42V TTL 32 Micro-Step
