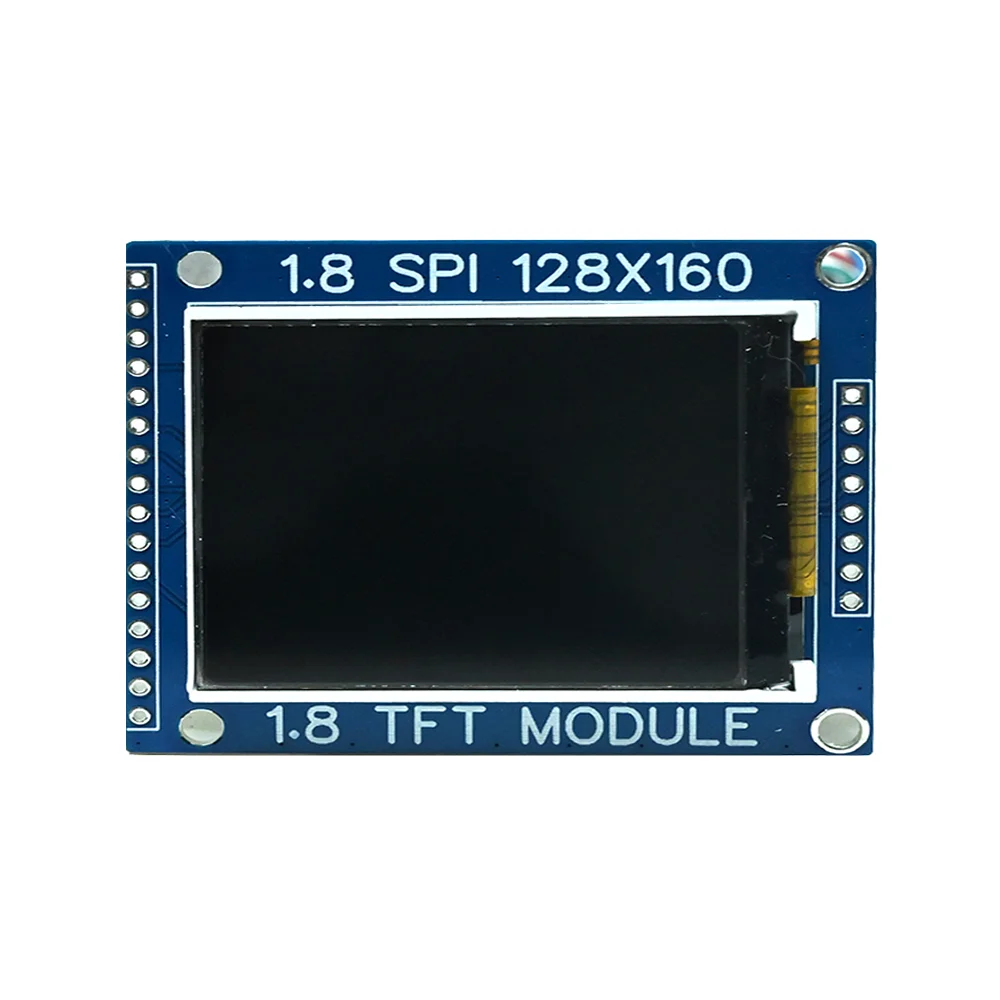

ST7735 8P 128X160 SPI 1.8 Inch TFT LCD Screen Display Module

ST7735 8P 128X160 SPI 1.8 Inch TFT LCD Screen Display Module is a versatile, high-resolution color display designed for embedded systems and DIY electronics projects. This module utilizes the robust ST7735 driver IC to deliver 16-bit full-color graphics across a 1.8-inch diagonal screen. Consequently, it offers a significant visual upgrade over traditional monochrome character displays. By employing a high-speed Serial Peripheral Interface (SPI), the module requires only a few GPIO pins from your microcontroller. Furthermore, the integrated SD card slot on the rear provides a convenient method for storing and loading large image assets. Therefore, you can easily integrate this display into Arduino, ESP32, or STM32 platforms to create professional-grade user interfaces and data monitors.

Key Features:

• Vibrant Full-Color Output: Supports up to 65K colors (RGB 5-6-5), ensuring that your icons, charts, and text appear sharp and professionally rendered.
• High-Speed SPI Interface: Uses a 4-wire serial interface to maintain high frame rates while minimizing the wiring complexity for the host controller.
• Built-in SD Card Slot: Features a dedicated micro-SD slot for data logging or storing bitmap images, which significantly expands the storage capabilities of your project.
• Wide Viewing Angle: The Thin Film Transistor (TFT) technology provides better contrast and wider viewing angles compared to standard STN displays.
• Flexible Power Compatibility: Operates efficiently on 3.3 V logic, however, many versions include an on-board regulator for 5 V compatibility.

Technical Specifications:

• Display Driver IC: ST7735R / ST7735S
• Resolution: 128 x 160 Pixels
• Display Size: 1.8 Inch Diagonal
• Interface Type: 4-Wire SPI (Serial Peripheral Interface)
• Color Depth: 16-bit (65,536 colors)
• Input Voltage: 3.3 V to 5.0 V DC
• Backlight: High-brightness White LED (Active High)
• IO Logic Level: 3.3 V (Level shifters recommended for 5 V logic)

Mechanical Specifications:

• Module Type: 8-Pin Header (SPI Configuration)
• PCB Material: High-durability FR-4
• Screen Coating: Anti-glare protective film
• Connector: Standard 2.54 mm pitch male pin header

Dimensions:

• PCB Dimensions: ≈ 58.0 mm x 34.5 mm
• LCD Active Area: ≈ 28.03 mm x 35.04 mm
• Total Thickness: ≈ 6.5 mm (including SD slot)
• Weight: ≈ 12.0 g

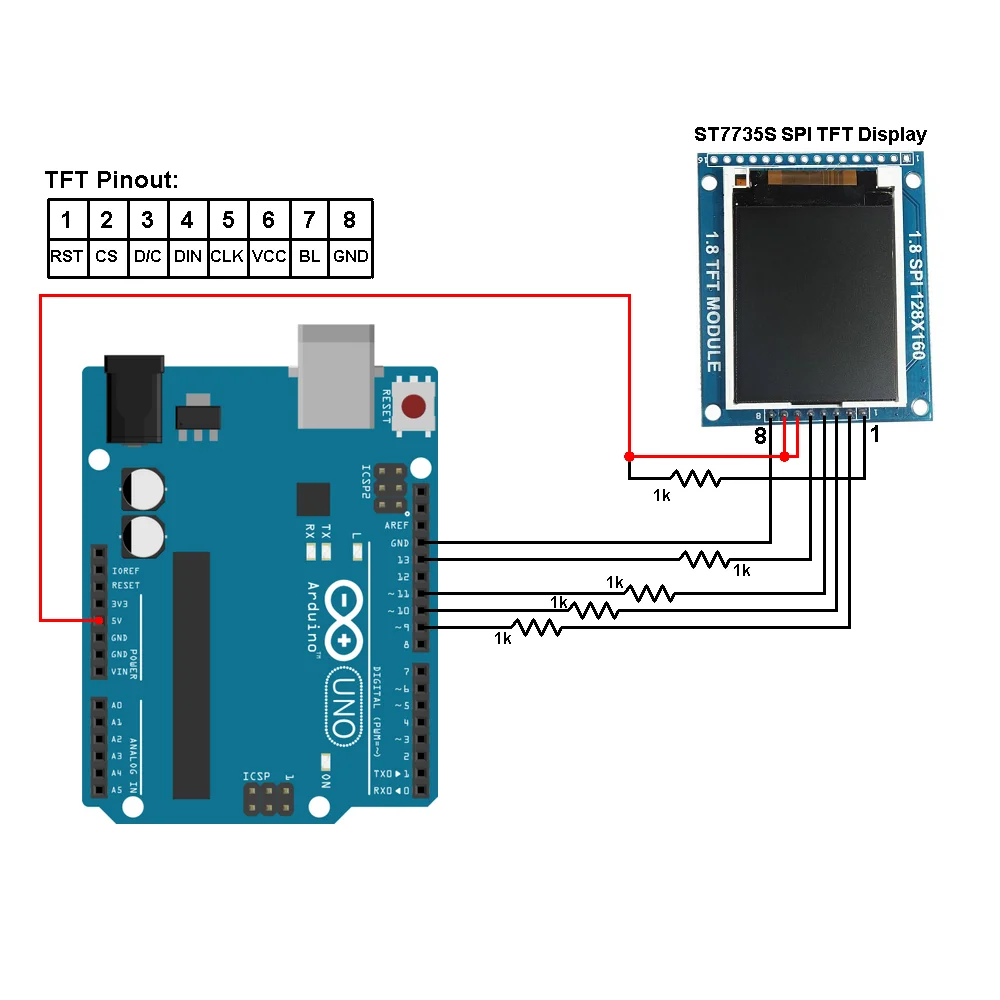

Pinout and Wiring:

• VCC: Connect to 3.3 V or 5 V power supply.
• GND: Connect to common circuit ground.
• CS (Chip Select): SPI Chip Select pin (Active Low).
• RESET: Hardware reset pin; drive low to reset the display controller.
• A0 / DC: Data/Command selection pin.
• SDA: SPI MOSI (Master Out Slave In) data line.
• SCK: SPI Clock signal input.
• LED: Backlight control pin; connect to 3.3 V for constant brightness or PWM for dimming.

Datasheet Reference:

• Download Sitronix ST7735R Controller Datasheet

Commonly Used in:

• Microcontroller Prototyping: Enhancing Arduino, ESP8266, and Teensy projects with a full-color graphical user interface.
• Handheld Devices: Creating portable gaming consoles, digital levels, or portable diagnostic tools.
• Smart Home Displays: Developing compact dashboards for thermostats, weather stations, and energy monitors.

Applications:

• Real-time Sensor Monitoring: Visualizing temperature, humidity, or pressure data using dynamic color graphs.
• IoT Dashboards: Displaying network status, IP addresses, and cloud data updates.
• Educational Electronics: Teaching students about SPI communication and pixel-based rendering.
• Custom Media Players: Displaying album art or basic visualizers in DIY audio setups.

Equivalent Models:

• ILI9163C 1.8″ TFT: A similar 128×160 SPI display that often uses nearly identical libraries and pinouts.
• ST7789 1.3″ / 1.54″ TFT: High-resolution alternatives for projects requiring a smaller form factor with IPS clarity.
• SSD1306 OLED: A common alternative for low-power monochrome needs, however, it lacks the color depth of the ST7735.

Package Includes:

• 1 x ST7735 8P 128X160 SPI 1.8 Inch TFT LCD Screen Display Module
