716 3.7V Micro Coreless Motor

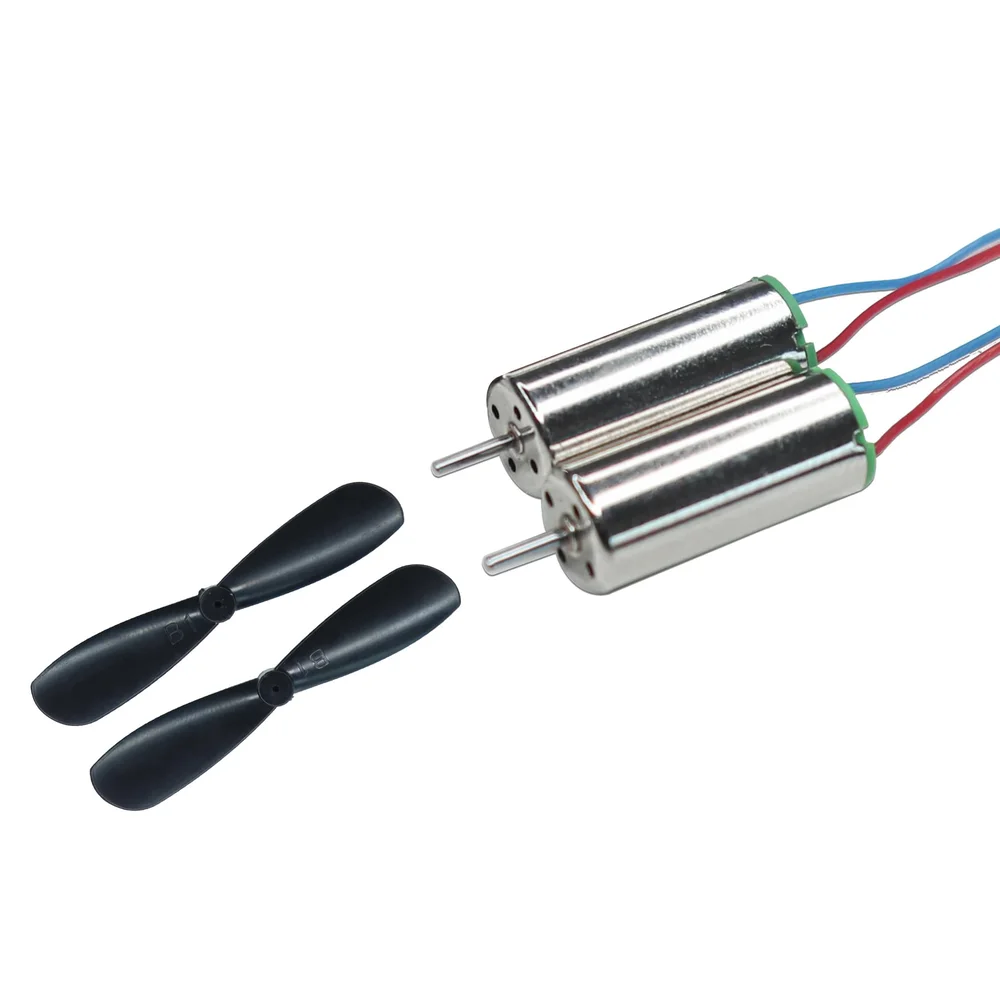

716 3.7V Micro Coreless Motor is a high-speed, lightweight propulsion solution specifically designed for micro-drones, small-scale robotics, and portable handheld devices. This cylindrical permanent magnet motor utilizes a coreless design, which significantly reduces the rotor’s inertia to provide lightning-fast acceleration and highly responsive control. Consequently, this motor excels in applications where precise maneuvering and high power-to-weight ratios are critical. Operating efficiently at a nominal 3.7V, it integrates perfectly with single-cell Lithium-Polymer (LiPo) batteries. Furthermore, its compact 7mm diameter makes it an ideal choice for space-constrained electronics. Therefore, you should consider the 716 coreless motor for any project that requires reliable high-RPM performance in a miniature form factor.

Key Features:

• High Power-to-Weight Ratio: Delivering exceptional rotational speeds while maintaining a featherweight profile, this motor ensures maximum lift for micro aerial vehicles.
• Coreless Technology: The absence of an iron core eliminates “cogging” torque and reduces rotational mass, allowing for smoother operation and faster start-up times.
• Low Noise and Vibration: Precise internal balancing minimizes acoustic noise and mechanical vibration, which enhances the stability of flight controllers and sensors.
• Energy Efficient: Optimized for 3.7V operation, the motor maximizes battery life in portable, battery-powered devices.
• Flexible Installation: Pre-installed color-coded lead wires simplify the installation process into various airframes or custom enclosures.

Technical Specifications:

• Operating Voltage: 3.7 V_DC
• Voltage Range: 3.0 V to 4.2 V
• No-Load Speed: ≈ 45,000 RPM to 50,000 RPM
• No-Load Current: ≤ 80 mA
• Rated Load Current: ≈ 1.0 A to 1.5 A (Depending on propeller load)
• Stall Current: ≈ 2.0 A
• Starting Voltage: ≤ 0.8 V_DC

Mechanical Specifications:

• Motor Type: Brushed Coreless Permanent Magnet
• Shaft Material: Stainless Steel
• Housing Material: Nickel-plated Steel
• Commutation: Precious Metal Brush
• Rotation: Supports both CW (Clockwise) and CCW (Counter-Clockwise) depending on polarity.

Dimensions:

• Motor Diameter: 7.0 mm
• Motor Length: 16.0 mm
• Shaft Diameter: 0.8 mm
• Shaft Length: ≈ 5.0 mm
• Wire Length: ≈ 50 mm to 80 mm

Pinout and Wiring:

• Red/Blue Wires (CW): Connect Red to Positive (+) and Blue to Negative (−) for Clockwise rotation.
• Black/White Wires (CCW): Connect White to Positive (+) and Black to Negative (−) for Counter-Clockwise rotation.
• Wiring Note: Reversing the polarity will reverse the direction of rotation. However, for drone applications, ensure you match the motor’s color code to the specific propeller orientation for correct flight dynamics.

Datasheet Reference:

• Download 716 Micro Coreless Motor Datasheet

Commonly Used in:

• Micro Quadcopters: Serving as the primary drive motors for “Tiny Whoop” style drones and micro UAVs.
• Toy RC Planes: Powering the propellers for small-scale indoor aircraft and gliders.
• Vibration Alerts: Used in haptic feedback systems for larger handheld controllers or specialized wearables.

Applications:

• Robotic Grippers: Providing the necessary torque for small, light-duty actuation in educational robotics kits.
• DIY Hobby Projects: Building motorized cars, mini fans, or kinetic art installations.
• Precision Medical Tools: Driving micro-vibration components in non-critical laboratory equipment.

Equivalent Models:

• Chaoli CL-716: A widely recognized high-quality version often used as a direct replacement.
• Hubsan H107-A23: The standard replacement motor for many entry-level Hubsan micro quadcopters.
• Generic 0716 Motor: Often sold as a generic 7mm x 16mm coreless motor with varying RPM ratings.

Package Includes:

• 1 x 716 3.7V Micro Coreless Motor
