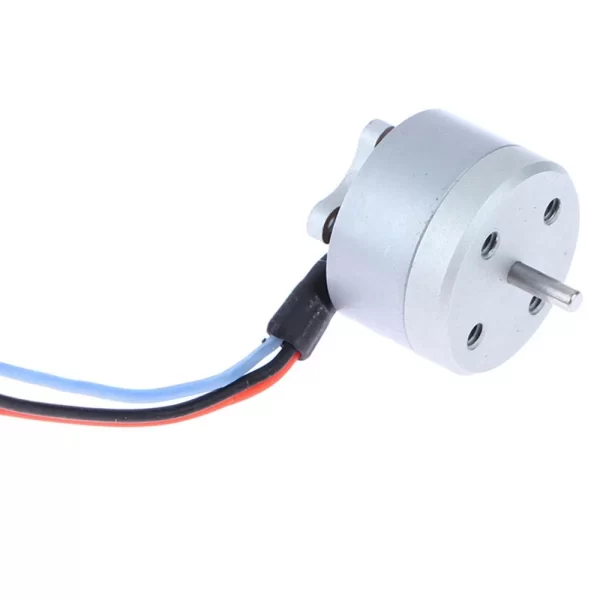

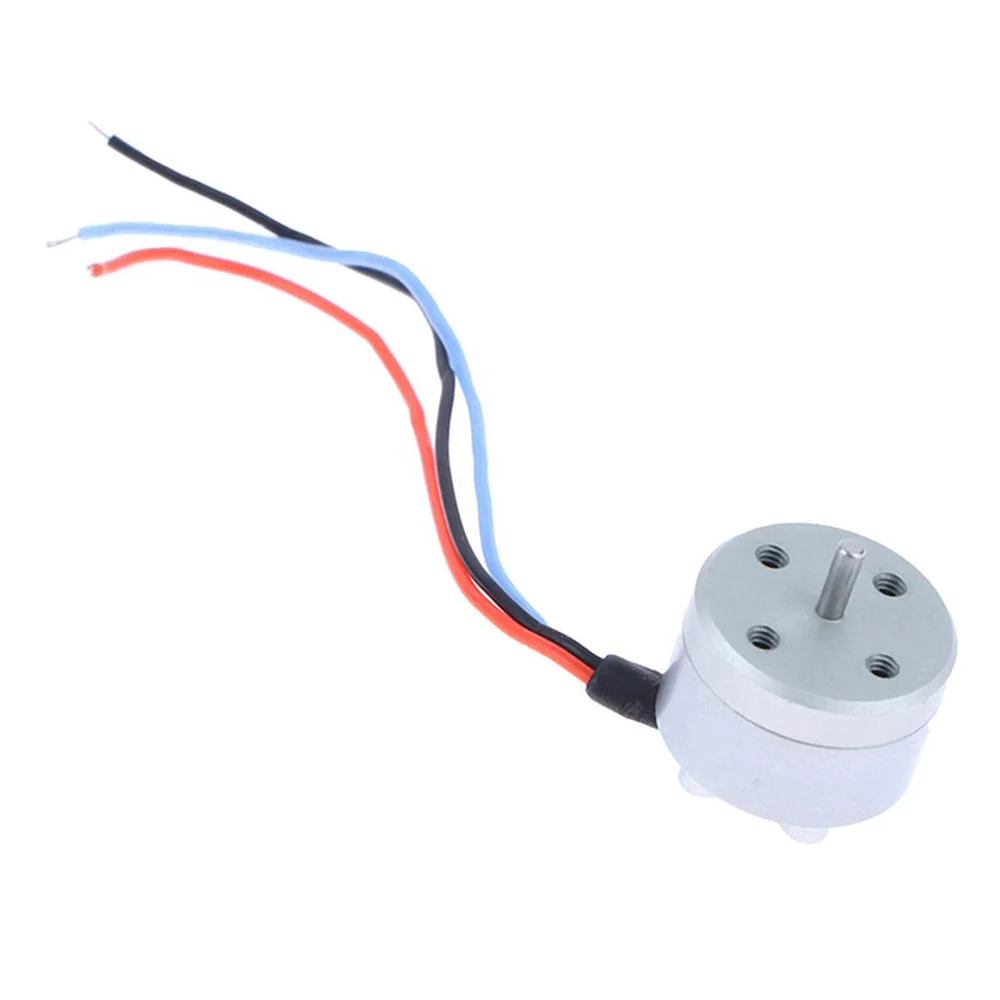

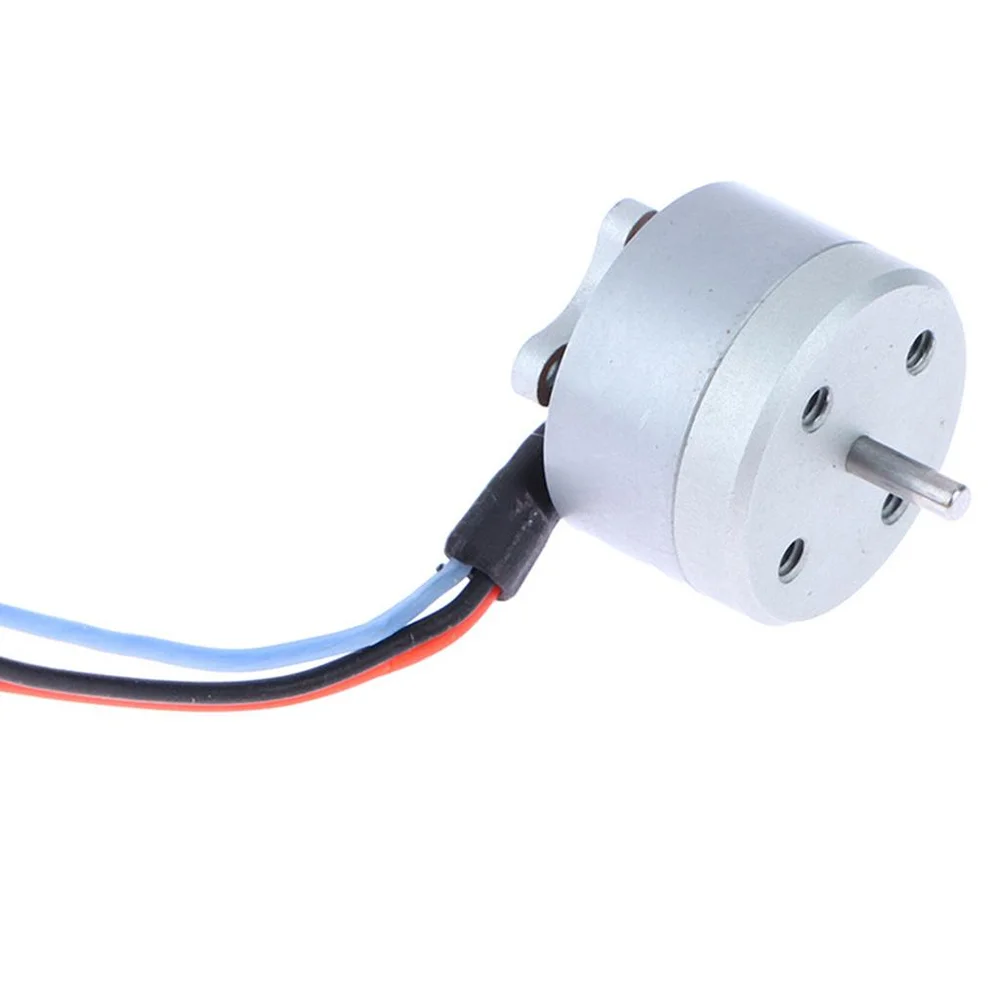

1S 1104 4300kV Brushless Mini FPV Motor

1S 1104 4300kV Brushless Mini FPV Motor provides exceptional power and efficiency for ultra-lightweight micro drones and indoor “whoop” style quadcopters. This high-performance motor utilizes a precise 4300kV rating to deliver smooth, controllable throttle responses on a 1S LiPo battery setup. Consequently, pilots experience a perfect balance between flight time and agility during intense FPV racing or freestyle maneuvers. Furthermore, the lightweight 1104 stator design ensures that your aircraft maintains a low moment of inertia for rapid directional changes. Therefore, choosing this brushless motor allows you to upgrade from traditional brushed systems to a more durable, reliable, and powerful propulsion solution for your micro FPV fleet.

Key Features:

• High-Efficiency 1S Design: Engineers optimized this motor specifically for 3.7 V to 4.35 V operation, ensuring maximum thrust output from a single-cell LiPo battery.
• N52 Neodymium Magnets: The motor incorporates high-strength N52 magnets to provide superior torque and consistent performance across the entire RPM range.
• Precision Ball Bearings: Quality internal bearings reduce friction and vibration, which leads to a smoother video feed and longer motor lifespan.
• Lightweight Construction: The CNC-machined aluminum bell and specialized stator design minimize overall weight without compromising structural integrity.
• Compatibility: This motor features a standard micro mounting pattern, making it compatible with most 75 mm to 100 mm micro FPV frames.

Technical Specifications:

• KV Rating: 4300 RPM/V
• Configuration: 9N12P (9 Stator poles, 12 Rotor poles)
• Input Voltage: 1S LiPo (3.7 V − 4.4 V)
• Maximum Continuous Current: ≈ 5.0 A
• Maximum Continuous Power: ≈ 20 W
• Internal Resistance: ≈ 0.25 Ω
• No-load Current (10V): ≈ 0.4 A

Mechanical Specifications:

• Stator Diameter: 11 mm
• Stator Height: 4 mm
• Shaft Diameter: 1.5 mm
• Motor Wire: 28AWG silicone wire (approx. 40 mm to 50 mm length)
• Bell Material: 7075-T6 Aluminum Alloy

Dimensions:

• Total Diameter: ≈ 14.2 mm
• Total Height: ≈ 12.5 mm
• Mounting Pattern: 9 mm x 9 mm (M2 screws)
• Weight: ≈ 5.5 g (including wires)

Pinout and Wiring:

• Phase Wire 1 (Black): Connect to any one of the three motor pads on a brushless Electronic Speed Controller (ESC).
• Phase Wire 2 (Black): Connect to the second motor pad on the ESC.
• Phase Wire 3 (Black): Connect to the third motor pad on the ESC.
• Direction Note: However, if the motor spins in the wrong direction, simply swap any two of the three wires to reverse the rotation.

Datasheet Reference:

• Download 1104 Brushless Motor Performance Datasheet

Commonly Used in:

• Brushless Whoops: Providing the primary power source for 75 mm and 85 mm toothpick and whoop frames.
• Micro Racing Drones: Powering sub-100g FPV racers intended for indoor or backyard flight.
• Custom UAV Projects: Serving as high-RPM actuators in specialized miniature robotics and lightweight flight experiments.

Applications:

• Indoor FPV Racing: Delivering the precision needed to navigate tight gates and obstacles.
• Micro Freestyle: Offering the thrust-to-weight ratio required for flips, rolls, and power loops in small spaces.
• Educational Robotics: Demonstrating brushless DC motor principles in STEM and engineering kits.

Equivalent Models:

• Happymodel SE1104 4300KV: A popular alternative frequently found in pre-built micro BNF quadcopters.
• Emax RS1104 4500KV: Offers a slightly higher KV rating but maintains a similar physical footprint and 1S/2S compatibility.
• BetaFPV 1103 4300KV: A slightly lighter stator option that serves as a direct mounting replacement for weight-sensitive builds.

Package Includes:

• 1 x 1S 1104 4300kV Brushless Mini FPV Motor
