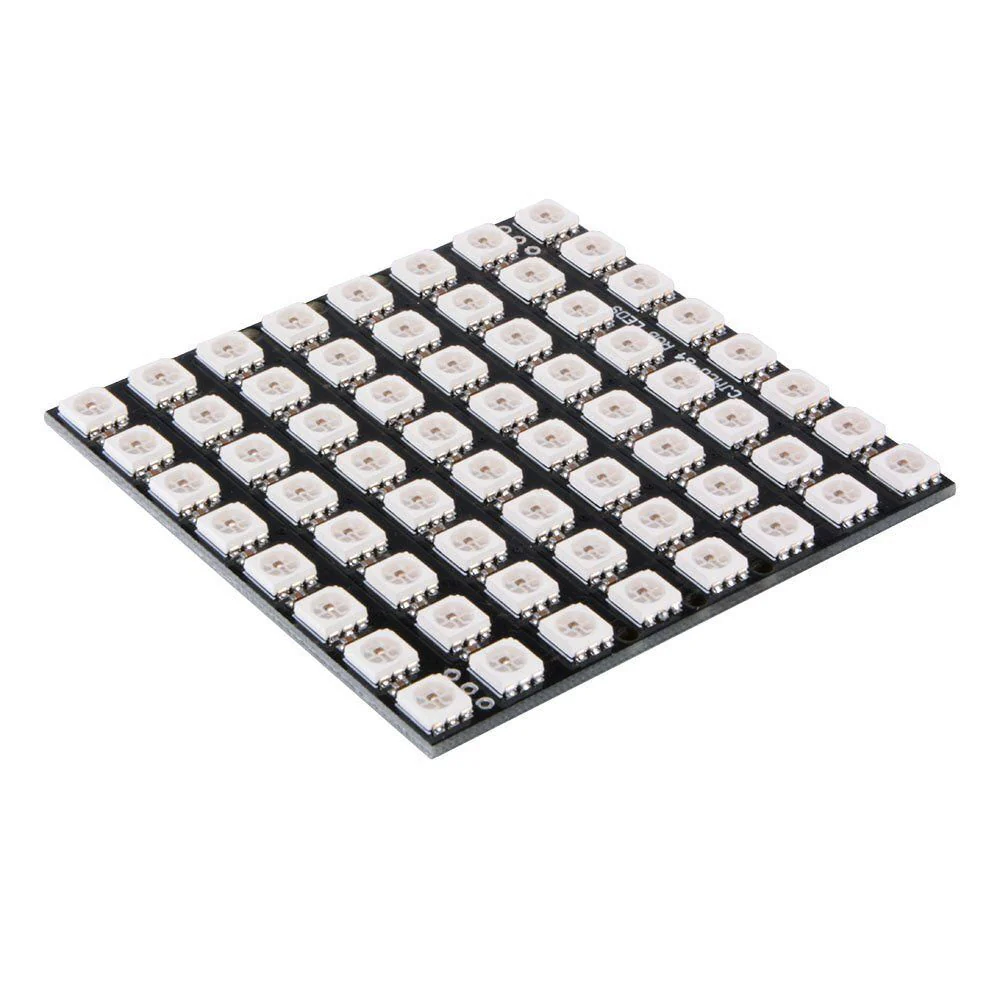

WS2812 64 Bit RGB LED Matrix Module

WS2812 64 Bit RGB LED Matrix Module is a versatile and high-density display solution designed for creating vibrant, full-color visual effects in embedded projects. This 8×8 grid integrates 64 individually addressable WS2812B LEDs, which allow you to control the color and brightness of every single pixel using just one data pin from a microcontroller. Consequently, it eliminates the complex wiring typically associated with traditional LED arrays. Utilizing the built-in control circuit and RGB chip, each LED provides 256 levels of brightness and 16,777,216 possible colors. Furthermore, the module supports daisy-chaining, which enables you to expand your display by connecting multiple matrices together. Therefore, you can easily develop complex scrolling text, animations, and decorative lighting systems for your next DIY electronics design.

Key Features:

• Individually Addressable: Every one of the 64 LEDs operates independently, giving you total creative control over the entire 8×8 matrix grid.
• Single-Wire Communication: The module uses a high-speed, one-wire protocol, which significantly reduces the number of GPIO pins required on your host controller.
• 24-Bit Color Depth: Each pixel features internal 8-bit processing for each color channel, resulting in a rich palette of over 16 million distinct colors.
• Chainable Design: Built-in “Data Out” pins allow you to link several modules in a series to create larger, seamless displays.
• Integrated Control Circuit: The WS2812B IC resides inside the 5050 LED package, ensuring a clean PCB layout and high reliability.

Technical Specifications:

• Operating Voltage: 5 V_DC (±0.5V)
• LED Type: WS2812B (5050 RGB LED with built-in IC)
• Resolution: 8 x 8 Pixels (64 Bits total)
• Data Speed: 800 Kbps (High-speed mode)
• Power Consumption: ≈ 60 mA per LED at full white brightness (3.8 A total maximum)
• Luminous Intensity: Red: 550-700 mcd; Green: 1100-1400 mcd; Blue: 200-400 mcd
• Operating Temperature: −25°C to +80°C

Mechanical Specifications:

• PCB Material: Double-sided FR-4 Glass Fiber
• LED Arrangement: Uniform 8×8 grid with 5050 package size
• Mounting: Includes four M3 mounting holes for secure installation into enclosures.
• Connection: Standard 3-pin headers or solder pads for Input and Output connections.

Dimensions:

• Total Board Length: ≈ 65 mm
• Total Board Width: ≈ 65 mm
• Module Thickness: ≈ 3 mm (excluding pins)
• Pixel Pitch: ≈ 8 mm (Center to center)

Pinout and Wiring:

• 5V (VCC): Connect to a stable 5V DC power source capable of handling the required current.
• GND: Connect to the common ground of your power supply and microcontroller.
• DIN (Data In): Connect this pin to a digital output pin on your microcontroller (e.g., Arduino Pin 6).
• DOUT (Data Out): Connect this to the DIN pin of the next matrix module if you are daisy-chaining.
• Wiring Note: However, always place a 1000µF capacitor across the power terminals and a 330Ω to 470Ω resistor on the data line to prevent damaging the LEDs.

Datasheet Reference:

• Download WS2812B Intelligent RGB LED Datasheet

Commonly Used in:

• Arduino and ESP32 Projects: Hobbyists frequently use this module for visual feedback in smart home devices.
• Wearable Electronics: The slim profile makes it suitable for integration into high-tech clothing and costumes.
• Information Displays: Used for creating compact clocks, weather stations, and social media counters.

Applications:

• Scrolling Message Boards: Displaying real-time notifications or advertisements in a compact format.
• Audio Visualizers: Mapping sound frequencies to colors for dynamic music-reactive light shows.
• Gaming Displays: Creating retro-style mini-games or health bars for gaming rigs.
• Ambient Lighting: Providing soft, customizable mood lighting for interiors or computer setups.

Equivalent Models:

• NeoPixel Shield: A similar 8×8 matrix specifically designed to plug directly into Arduino boards.
• SK6812 Matrix: A functionally identical alternative that uses the SK6812 driver IC, although timing requirements are very similar to the WS2812B.
• APA102 Matrix: A two-wire LED matrix that offers faster refresh rates, but it requires both Data and Clock pins.

Package Includes:

• 1 x WS2812 64 Bit RGB LED Matrix Module (8×8 Grid)
