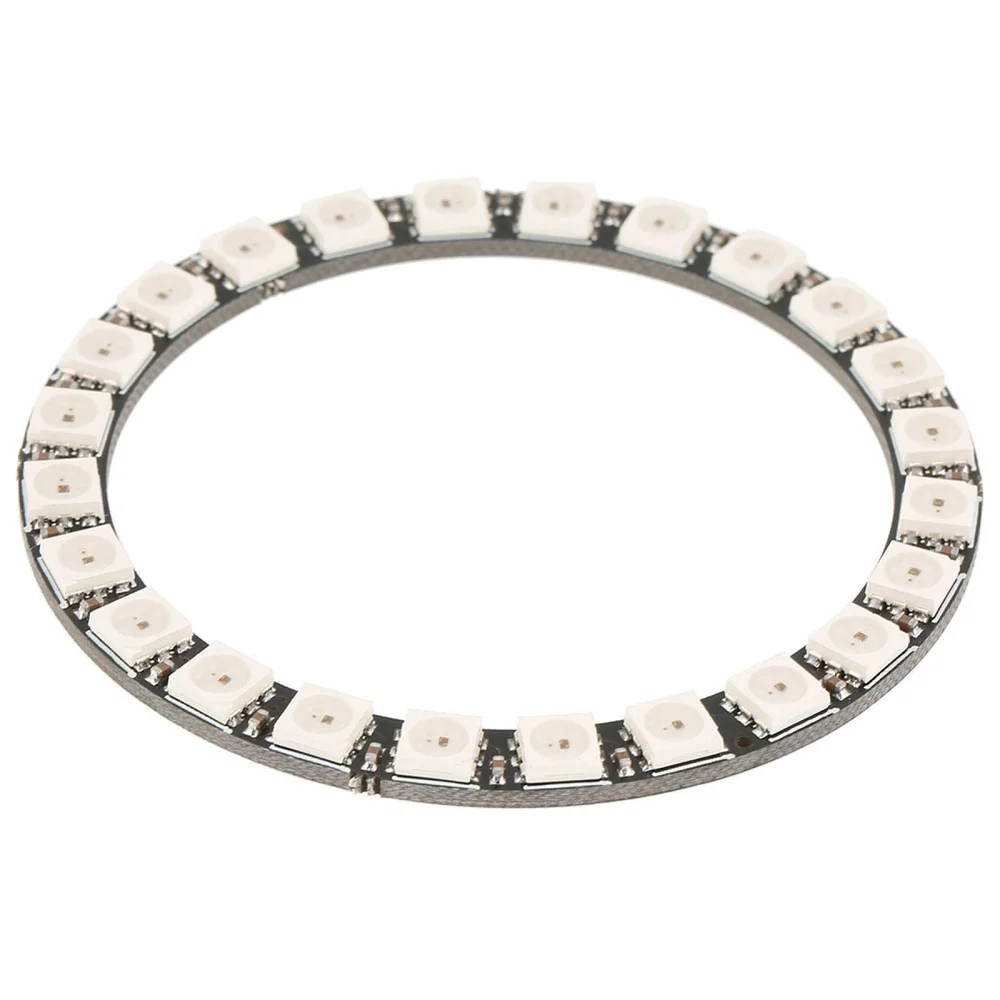

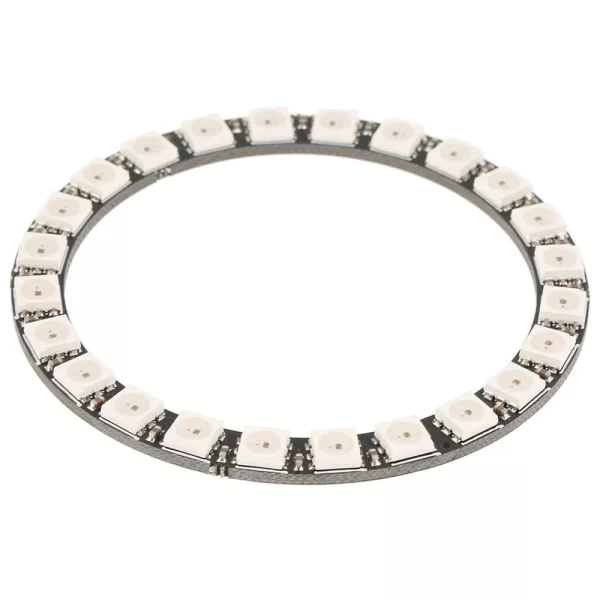

24-Bit WS2812 5050 RGB LED Circular Development Board

24-Bit WS2812 5050 RGB LED Circular Development Board is a high-brightness, programmable lighting module that features 24 individually addressable pixels arranged in a precise ring formation. This module integrates the legendary WS2812B driver chip directly into each 5050 RGB LED package. Consequently, you can control the entire ring using just a single digital pin from a microcontroller. Each pixel achieves 24-bit color depth, delivering over 16 million possible color combinations with smooth PWM dimming. Furthermore, the board supports daisy-chaining, allowing you to connect multiple rings together to create complex visual displays without increasing the control pin count. Therefore, this development board represents the ideal solution for hobbyists and engineers looking to add vibrant, circular lighting effects to clocks, wearables, or UI indicators.

Key Features:

• Individually Addressable: Each of the 24 LEDs operates independently, enabling complex patterns, gradients, and animations through simple software commands.
• Single-Wire Control: The board utilizes a high-speed, one-wire communication protocol, which significantly reduces the wiring complexity for your project.
• Integrated Driver: Every LED includes its own internal constant-current driver chip, ensuring consistent brightness and color even if the supply voltage fluctuates slightly.
• Chainable Design: Features both Data Input (DI) and Data Output (DO) ports, allowing you to link multiple rings in series to expand your display.
• Vibrant 24-Bit Color: Provides 8 bits of red, green, and blue data per pixel, resulting in high-fidelity color reproduction for professional-grade lighting projects.

Technical Specifications:

• Input Voltage (V_CC): +3.5 V to +5.3 V (Typically 5 V)
• Logic Level Input: 0.7 V_CC to V_CC (Compatible with 5 V logic; 3.3 V may require a level shifter)
• LED Type: 5050 SMD RGB with integrated WS2812B driver
• Refresh Rate: 400 Hz or higher
• Data Transfer Rate: 800 Kbps (High-speed mode)
• Current Consumption: ≈ 60 mA per LED at full white brightness (≈ 1.44 A total for the ring)
• Operating Temperature: −25°C to +80°C

Mechanical Specifications:

• PCB Material: High-quality FR-4 Double-sided PCB
• Layout: Circular arrangement with 24 equally spaced pixels
• Solder Pads: Large, easy-to-solder pads for power and data connections
• Surface Finish: Black Solder Mask for enhanced contrast and aesthetics

Dimensions:

• Outer Diameter: ≈ 66 mm
• Inner Diameter: ≈ 52 mm
• Thickness: ≈ 3.0 mm (including LEDs)
• Weight: ≈ 6.5 g

Pinout and Wiring:

• 5V / VCC: Connect this pin to a regulated 5 V DC power supply. However, ensure your power source can handle the peak current of ≈ 1.5 A.
• GND: Connect to the common ground of your power supply and microcontroller.
• DI (Data Input): Connect to a digital I/O pin on your microcontroller (e.g., Arduino Pin 6).
• DO (Data Output): Connect this to the DI pin of the next LED ring if you are daisy-chaining multiple modules.
• Wiring Tip: We recommend placing a 1000 μF capacitor across the power lines and a 330 Ω to 470 Ω resistor on the data line to protect the LEDs from voltage spikes.

Datasheet Reference:

• Download WS2812B Integrated Light Source Datasheet

Commonly Used in:

• Arduino & ESP32 Projects: Popular for creating interactive light art using libraries like FastLED or Adafruit_NeoPixel.
• Custom PC Lighting: Integrated into fan shrouds or reservoir mounts for high-end gaming setups.
• Smart Home Indicators: Used as status rings for voice assistants or smart thermostats.

Applications:

• Visual Chronometers: Creating analog-style LED clocks where the 24 LEDs represent hours or intervals.
• Robotics: Providing status updates or “eyes” for autonomous robots through color coding.
• Wearable Tech: Incorporating circular light effects into cosplay, jewelry, or safety gear.
• UI/UX Prototyping: Simulating rotary encoders or progress bars in hardware interface design.

Equivalent Models:

• Adafruit NeoPixel Ring – 24: The industry-standard equivalent that shares the same dimensions and control protocol.
• SK6812 Circular Module: A highly compatible alternative that often features better timing tolerances and similar electrical characteristics.
• CJMCU-24: A generic version of the 24-bit RGB ring that utilizes the same WS281x communication standard.

Package Includes:

• 1 x 24-Bit WS2812 5050 RGB LED Circular Development Board
