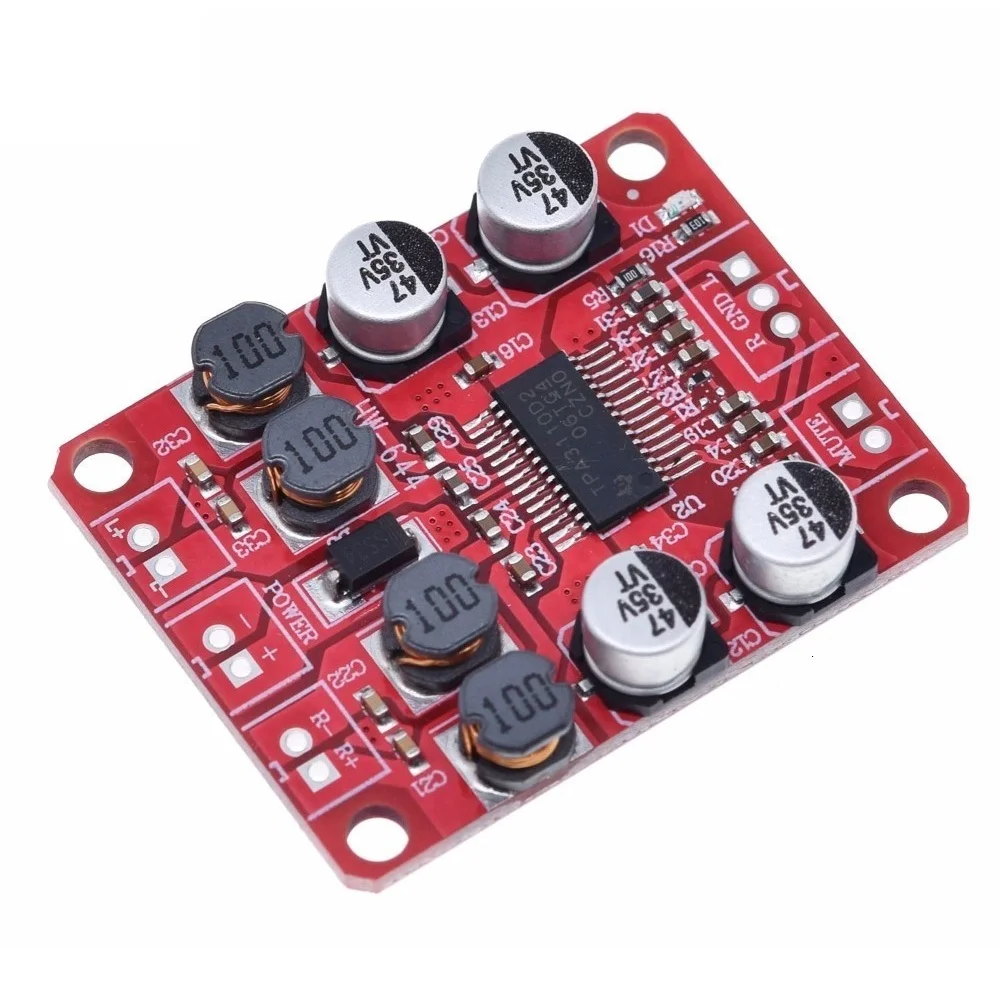

TPA3110 30W Dual Channel Digital Power Amplifier Module

TPA3110 30W Dual Channel Digital Power Amplifier ModuleThis high-efficiency TPA3110 30W Dual Channel Digital Power Amplifier Module is engineered to deliver crisp stereo audio performance with minimal thermal dissipation. Furthermore, it utilizes the advanced TPA3110D2 Class D amplifier IC, consequently providing high power output without requiring a bulky heatsink. Therefore, it is an ideal choice for custom DIY Bluetooth speakers, portable audio docks, and desktop sound systems. However, users must ensure the power supply voltage remains within the recommended 8V to 26V range to prevent damaging the internal circuitry. Specifically, the board features onboard filter inductors and large electrolytic capacitors to suppress electrical noise and ensure clean sound reproduction. Moreover, the integrated mute control and short-circuit protection safeguards ensure long-term operational reliability. Ultimately, this amplifier board offers an exceptional balance of high efficiency, compact size, and robust audio output.

Key Features

• High-Efficiency Class D Design: Delivers up to 30W per channel while maintaining high energy conversion and minimal heat generation.
• Wide Power Supply Range: Operates efficiently on DC voltages from 8V to 26V, accommodating various power setups.
• Dual Channel Stereo Output: Provides independent left and right audio channels for full stereo sound staging.
• Advanced Protection Circuitry: Features built-in short-circuit, thermal, and over-current protection mechanisms.
• Low Quiescent Current: Optimized power-saving layout reduces idle energy consumption.
• Mute Control Interface: Includes dedicated pads for external muting control and standby configuration.

Technical Specifications

• Amplifier IC: TPA3110D2
• Output Power: 15W + 15W (dependent on supply voltage and speaker impedance)
• Operating Voltage: 8V DC to 26V DC (12V 2A recommended)
• Speaker Impedance: 4Ω to 8Ω
• Efficiency: Typically ≥ 90%
• Operating Temperature Range: −40°C to +85°C

Mechanical Specifications

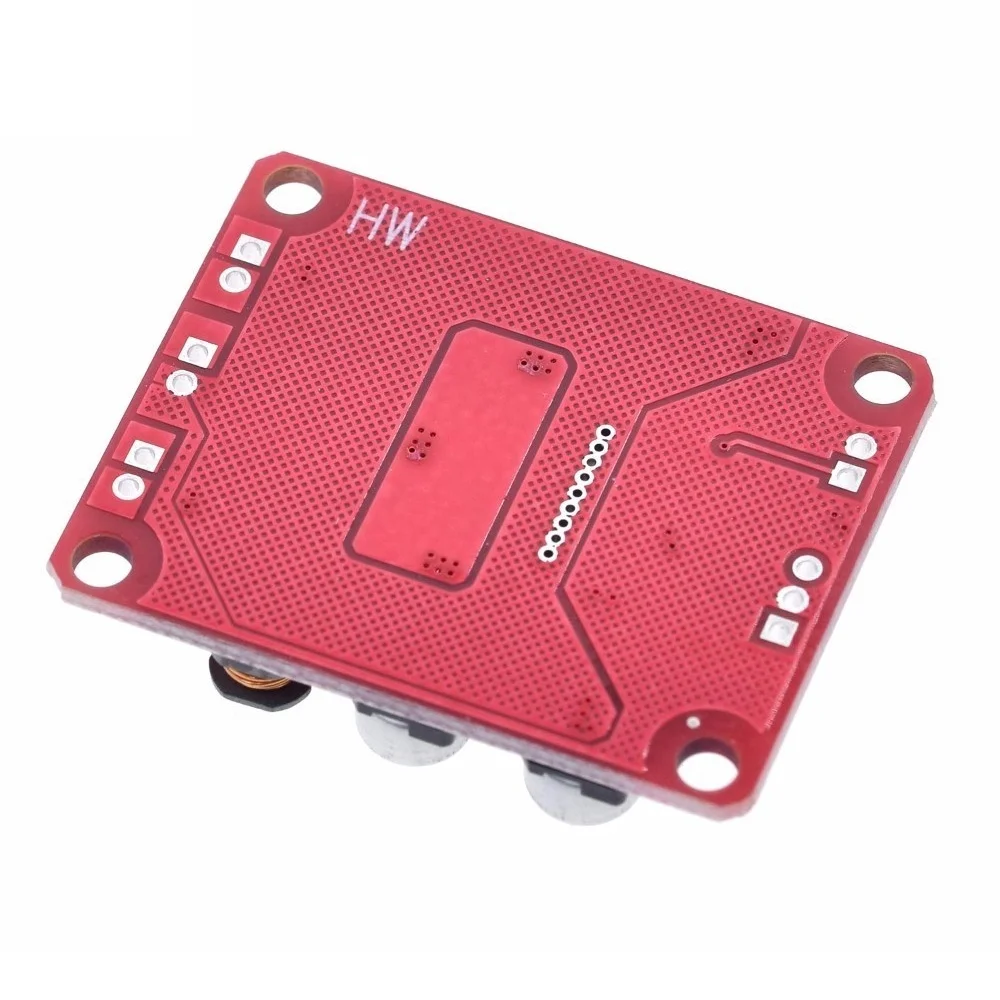

• PCB Substrate: Red FR4 Double-Sided Fiberglass Board
• Component Technology: Surface Mount Technology (SMT) with through-hole filter coils
• Mounting Holes: Four corner holes for secure physical installation

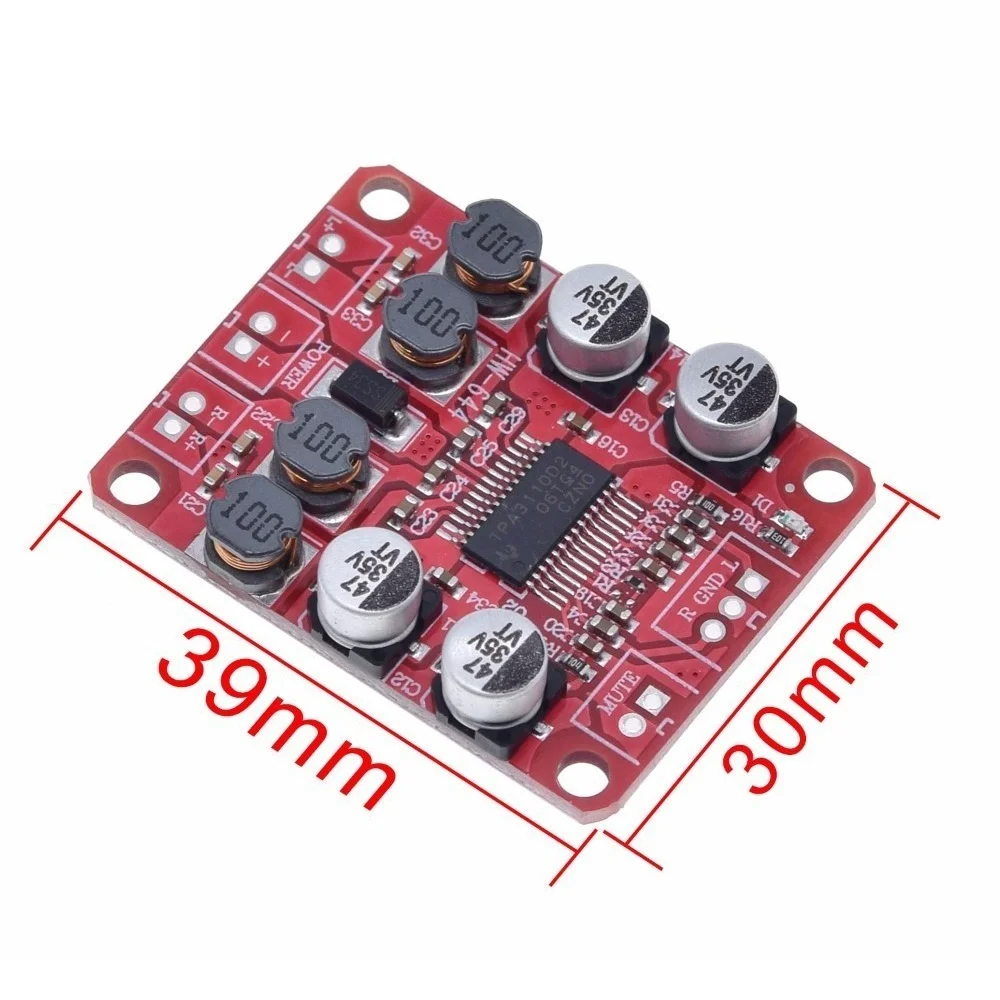

Dimensions

• Board Length: ≈ 43.0 mm
• Board Width: ≈ 33.0 mm
• Height: ≈ 15.0 mm (Including electrolytic capacitors)

Pinout and Wiring

• POWER (+ / −): Connect to the DC power source (8V–26V).
• L+ / L−: Left channel speaker output terminals.
• R+ / R−: Right channel speaker output terminals.
• R / GND / L: Audio input signal terminals (Right channel, Ground, Left channel).
• MUTE: Control pad for muting the amplifier output when grounded.

Datasheet Reference: Download Datasheet

• • TPA3110D2 30-W Filter-Free Class-D Stereo Amplifier Datasheet

Commonly Used in

• DIY Bluetooth Boomboxes
• Custom Desktop PC Speakers
• Portable Audio Amplifiers
• Home Theater Sound Bar Projects
• Interactive Electronic Displays with Audio

Applications

• Makers integrate this module into custom speaker enclosures to drive mid-range drivers cleanly.
• It serves as the main audio amplification stage in portable multimedia players.
• Consequently, it provides distortion-free sound for desktop entertainment setups.
• Furthermore, hobbyists combine it with Bluetooth decoder boards to build wireless audio systems.
• Ultimately, it delivers reliable audio amplification for battery- or adapter-powered audio appliances.

Equivalent Models

• PAM8610 Digital Amplifier Board: A 15W + 15W dual-channel Class D alternative.
• TPA3116D2 Amplifier Module: A higher-power 50W + 50W variant for larger speaker builds.
• XH-A232 Audio Amplifier Board: Another popular TPA3110-based compact stereo module.

Package Includes

• 1 x TPA3110 30W Dual Channel Digital Power Amplifier Module
