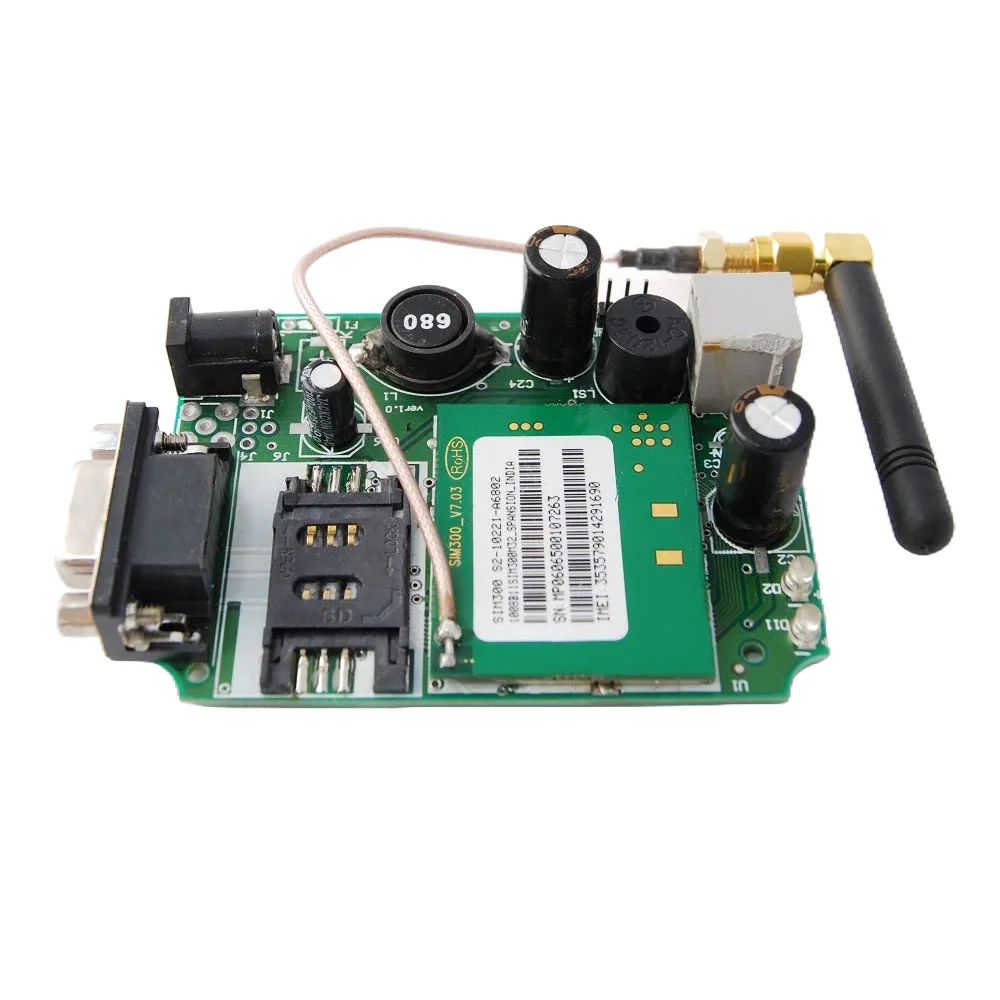

SIM300A GSM GPRS Module with RS232 Interface and SMA Antenna

SIM300A GSM GPRS Module with RS232 Interface and SMA Antenna provides a robust and reliable solution for integrating cellular connectivity into industrial and embedded systems. This powerful dual-band module enables your hardware to send SMS messages, make voice calls, and transmit data over GPRS with ease. Furthermore, the integrated RS232 interface allows for direct connection to PCs or industrial PLCs without the need for additional level converters. Consequently, you can accelerate your development cycle by utilizing standard AT commands for all communication tasks. Therefore, the SIM300A remains a preferred choice for remote monitoring and telematics applications where stable, long-range wireless communication is essential.

Key Features:

• Dual-Band Connectivity: Operates on EGSM 900 MHz and DCS 1800 MHz frequencies, ensuring broad compatibility with cellular networks across various regions.
• Integrated RS232 Interface: Features a standard DB9-style interface for seamless serial communication with legacy industrial equipment and desktop computers.
• SMA Antenna Connector: Includes a high-gain SMA antenna to provide superior signal reception even in areas with weak cellular coverage.
• On-board SIM Holder: Incorporates a secure, push-push type SIM card holder to simplify installation and ensure reliable contact.
• GPRS Multi-slot Class 10: Supports high-speed packet data transfer, making it suitable for Internet-of-Things (IoT) and telemetry data logging.

Technical Specifications:

• Operating Voltage: 9 V to 12 V DC (via DC Barrel Jack or Header)
• Power Consumption: 1.0 mA in sleep mode; up to 2.0 A peak during transmission bursts
• GPRS Data Speed: Max 85.6 kbps (Download) / 42.8 kbps (Upload)
• Communication Protocol: Standard GSM 07.07 & 07.05 and Enhanced AT Commands
• Operating Temperature: −20°C to +70°C
• SIM Interface: 3 V / 1.8 V SIM card support

Mechanical Specifications:

• Interface Type: RS232 (DB9 Female) and TTL Header
• Antenna Connection: SMA Female (Includes 3 dBi SMA Male Antenna)
• Board Material: High-quality FR4 PCB with green solder mask
• Indicators: On-board LEDs for Power (PWR) and Network Status (NET)

Dimensions:

• Board Length: ≈ 80 mm
• Board Width: ≈ 50 mm
• Overall Height: ≈ 20 mm (including DB9 connector)
• Antenna Length: ≈ 100 mm

Pinout and Wiring:

• DC Jack: Input for 12 V DC power adapter.
• DB9 Connector: Connect directly to a PC COM port or USB-to-RS232 converter for AT command control.
• TTL Pins (TX/RX): Use these pins to interface with 5 V microcontrollers like Arduino Uno or Mega.
• MIC/SPK Headers: Connect external audio hardware for voice call functionality.
• Status LED: Blinks rapidly when searching for a network and slowly once it successfully registers.

Datasheet Reference:

• Download SIM300A GSM Module Datasheet

Commonly Used in:

• Industrial Automation: Connecting PLCs to cellular networks for remote status reporting and control.
• Security Systems: Sending immediate SMS alerts upon trigger detection in home or warehouse alarms.
• Smart Metering: Transmitting energy consumption data from remote locations back to a central server.

Applications:

• Remote Data Logging: Uploading sensor data from off-grid weather stations or agricultural sensors via GPRS.
• Vehicle Tracking: Acting as the communication link for GPS-based fleet management systems.
• Interactive Systems: Creating SMS-based voting systems or remote-controlled appliances.

Equivalent Models:

• SIM800L: A more modern and smaller alternative, however, it lacks the native RS232 interface.
• SIM900A: A direct successor with improved power efficiency and identical AT command structure.
• A6 AI-Thinker: A cost-effective GSM module, although it may require different voltage levels for stable operation.

Package Includes:

• 1 x SIM300A GSM GPRS Module with RS232 Interface and SMA Antenna
• 1 x High-Gain SMA Antenna
