PD65W Fast Charging Adapter Module Standard Board

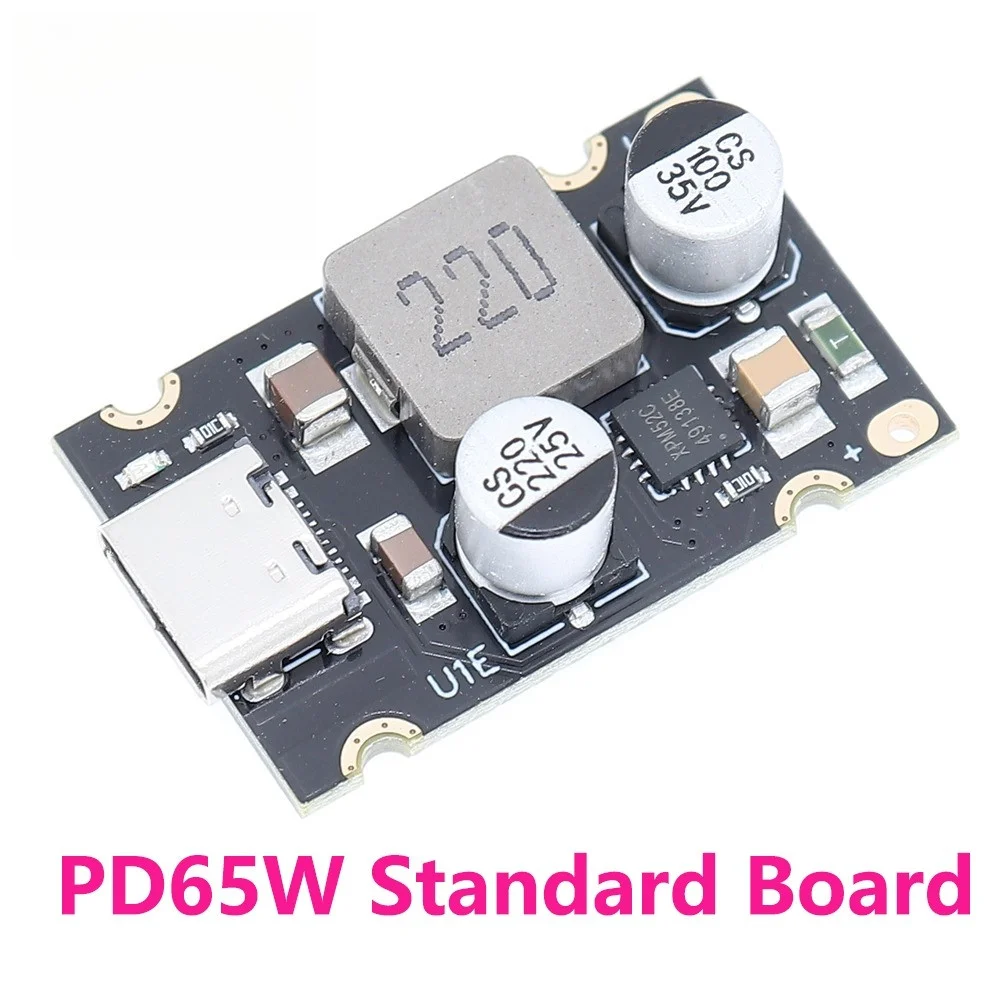

PD65W Fast Charging Adapter Module Standard BoardThis high-power PD65W Fast Charging Adapter Module Standard Board is engineered to step down higher DC voltages into a high-wattage USB Power Delivery output capable of driving modern laptops, tablets, and smartphones. Furthermore, it supports multiple fast-charging protocols up to 65W, consequently enabling rapid replenishment for demanding mobile devices. Therefore, it serves as an excellent core component for custom car chargers, solar power distribution units, and DIY bench supplies. However, users must ensure the input voltage and current capacity match the demands of the load to prevent thermal overload. Specifically, the board features an integrated USB Type-C port and large filtering capacitors to ensure clean, stable power delivery. Moreover, the compact black PCB layout includes designated mounting pads for easy physical integration. Ultimately, this module delivers professional-grade charging capabilities in a streamlined, accessible format.

Key Features

• High Power Output: Delivers up to 65W of fast-charging power via a standard USB Type-C interface.
• Wide Input Voltage Range: Accepts DC inputs from 8V to 30V, making it compatible with 12V and 24V automotive or solar systems.
• Multi-Protocol Support: Compatible with various fast-charging standards to optimize power delivery across different device models.
• Advanced Switching Circuitry: Features high-frequency inductors and low-ESR capacitors for high conversion efficiency.
• Compact Form Factor: Small printed circuit board layout designed for straightforward embedding into custom enclosures.
• Secure Connection Pads: Large through-hole pads for stable input power soldering.

Technical Specifications

• Input Voltage Range: 8V DC to 30V DC.
• Maximum Output Power: Up to 65W.
• Maximum Output Current: 3.25A.
• Output Interface: USB Type-C Reversible Port.
• Operating Temperature Range: −20°C to +85°C.

Mechanical Specifications

• PCB Substrate: FR4 Multi-Layer Black Solder Mask.
• Mounting Design: Corner castellations and through-hole solder pads.
• Component Layout: Surface Mount Technology (SMT) with integrated power management IC.

Dimensions

• Board Length: ≈ 50.0 mm.
• Board Width: ≈ 30.0 mm.
• Height: ≈ 12.0 mm (Including USB port and capacitors).

Pinout and Wiring

• VIN+ / +: Positive DC input voltage terminal (Connect to 8V–30V source).
• VIN- / −: Negative ground terminal for the power supply input.
• USB-C Port: Output interface to connect your device charging cable.
• Wiring Note: Use heavy-gauge wire for the input connections to safely handle the high current demands at maximum 65W output.

Datasheet Reference: Download Datasheet

• • High-Power Buck-Boost and PD Controller Principles

Commonly Used in

• Custom 12V/24V USB-C Car Chargers
• Solar Power Bank Charging Hubs
• DIY Laptop Power Supplies
• Off-Grid RV and Marine USB Outlets
• Portable Field Repair Toolkits

Applications

• Engineers integrate this module into automotive charging ports to fast-charge laptops directly from a car’s 12V system.
• It serves as a core power block for solar generator builds needing high-wattage USB outputs.
• Consequently, it enables portable workstations to run and charge modern Type-C devices in remote locations.
• Furthermore, makers utilize it to upgrade older battery boxes with modern Power Delivery standards.
• Ultimately, it provides an efficient way to harness high-voltage DC sources for everyday consumer electronics.

Equivalent Models

• SW2716 / SW3518S Fast Charge Module: Alternative multi-protocol step-down charging boards.
• IP6538 Dual-Port Fast Charge Module: A higher-port-count alternative supporting multi-device charging.
• 12V to 5V Standard USB Buck Converter: A basic, lower-power option without USB-C PD capabilities.

Package Includes

• 1 x PD65W Fast Charging Adapter Module Standard Board
