PD3.0 PD3.1 QC3.0 Deceiver Type-C DC 5V/9V/12V/15V/20V Fast Charging Trigger Module

PD3.0 PD3.1 QC3.0 Deceiver Type-C DC 5V/9V/12V/15V/20V Fast Charging Trigger Module is a compact hardware USB Power Delivery (PD) and Quick Charge (QC) protocol negotiation decoy board capable of extracting fixed DC voltages (5V, 9V, 12V, 15V, or 20V at up to 5A / 100W) from USB-C fast-charging wall adapters and power banks. By emulating sink protocol handshakes over the USB-C CC1/CC2 and D+/D- lines, this module instructs compatible PD 3.0, PD 3.1, and QC 3.0 power supplies to output the user-selected voltage level configured via onboard DIP switches or solder jumpers.

Key Features:

• Multi-Protocol Fast-Charge Handshake: Hardware protocol chip negotiates USB PD 3.0, PD 3.1, QC 3.0, and QC 2.0 profiles automatically.
• Selectable 5V / 9V / 12V / 15V / 20V Output: Configurable output voltage steps via onboard selector switch or jumper pads.
• High 5A / 100W Power Capability: Heavy-copper traces support up to 5A continuous current (up to 100W at 20V with an E-Marker USB-C cable).
• Automatic Downward Fallback: If the connected USB-C power adapter does not support the requested voltage, the module automatically falls back to the next highest supported voltage tier.
• Ultra-Compact Footprint: Easily converts standard USB-C GaN chargers into high-power DC bench supplies or router/laptop power adapters.

Technical Specifications:

• Supported Protocols: USB Power Delivery PD 2.0 / PD 3.0 / PD 3.1, Qualcomm QC 2.0 / QC 3.0
• Input Interface: USB Type-C Female Receptacle
• Selectable Output Voltages: 5V, 9V, 12V, 15V, 20V DC (Default 5V before configuration)
• Maximum Output Current: Up to 5.0 A
• Maximum Output Power: Up to 100 W (20V @ 5A)
• Operating Temperature Range: -20°C to +85°C

Mechanical Specifications:

• PCB Material: FR-4 Double-Sided High-Tg Fiberglass Board
• Input Connector: High-current SMD USB Type-C Female Port
• Output Terminations: Large through-hole solder pads (VOUT+ and GND-)
• Weight: Approximately 2.5 grams

Dimensions:

• Length: 23.0 mm
• Width: 12.0 mm
• Height: 4.5 mm

Pinout and Wiring:

• USB Type-C Port: Connect to a PD/QC-capable USB-C wall charger or power bank using a USB-C to USB-C cable.
• VCC / V+: Positive DC Output pad (Outputs negotiated 5V, 9V, 12V, 15V, or 20V DC).
• GND / V-: Common Ground Output pad.

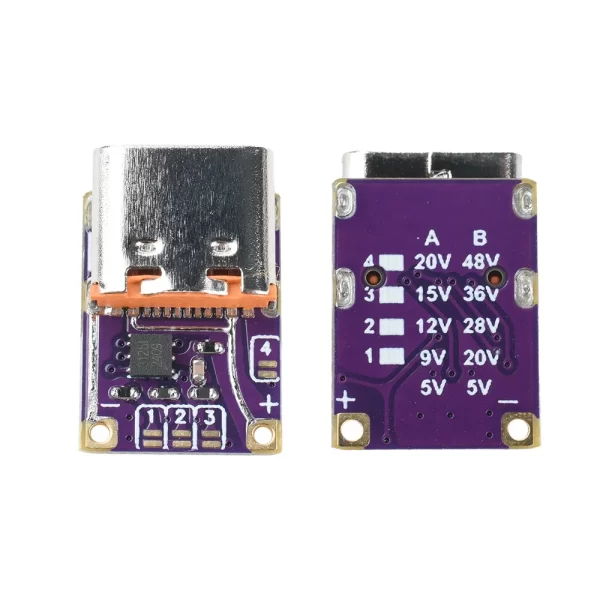

• Voltage Configuration Pads / Switch: Set according to the silkscreen truth table on the back of the PCB prior to connecting sensitive loads.

Datasheet Reference:

• Refer to the USB Power Delivery (USB-PD Rev 3.1) Sink Controller IC application note and PCB silkscreen jumper configuration table.

Commonly Used in:

• Converting 65W/100W USB-C GaN chargers into portable 12V/20V DC power supplies
• Powering TS100, TS80P, and Pinecil portable DC soldering irons from USB-C power banks
• 12V Wi-Fi router, modem, and mini-PC backup power cables powered by PD power banks
• Replacing bulky proprietary laptop brick chargers with USB-C PD decoy DC barrel adapters

Applications:

• USB-C PD to DC Barrel Conversion: Driving 12V, 15V, or 19V–20V DC equipment from universal Type-C chargers.
• Automated Charger Load Testing: Triggering 9V/12V/15V/20V rails on USB-C adapters for burn-in and ripple testing.
• Portable Field Equipment: Running 12V amateur radios, cameras, and LED studio lights off USB-C PD battery banks.

Equivalent Models:

• ZY12PDN USB-C PD Trigger Module: Pushbutton-selectable USB-C PD decoy board with multicolor LED voltage indicator.
• CH224K USB PD Decoy Module: Hardware resistor-configured 5V/9V/12V/15V/20V fast-charge sink trigger module.
• IP2721 PD Sink Trigger Board: Dedicated fixed-voltage USB Type-C PD trigger breakout module.

Package Includes:

• 1 × PD3.0 PD3.1 QC3.0 Deceiver Type-C DC 5V/9V/12V/15V/20V Fast Charging Trigger Module
