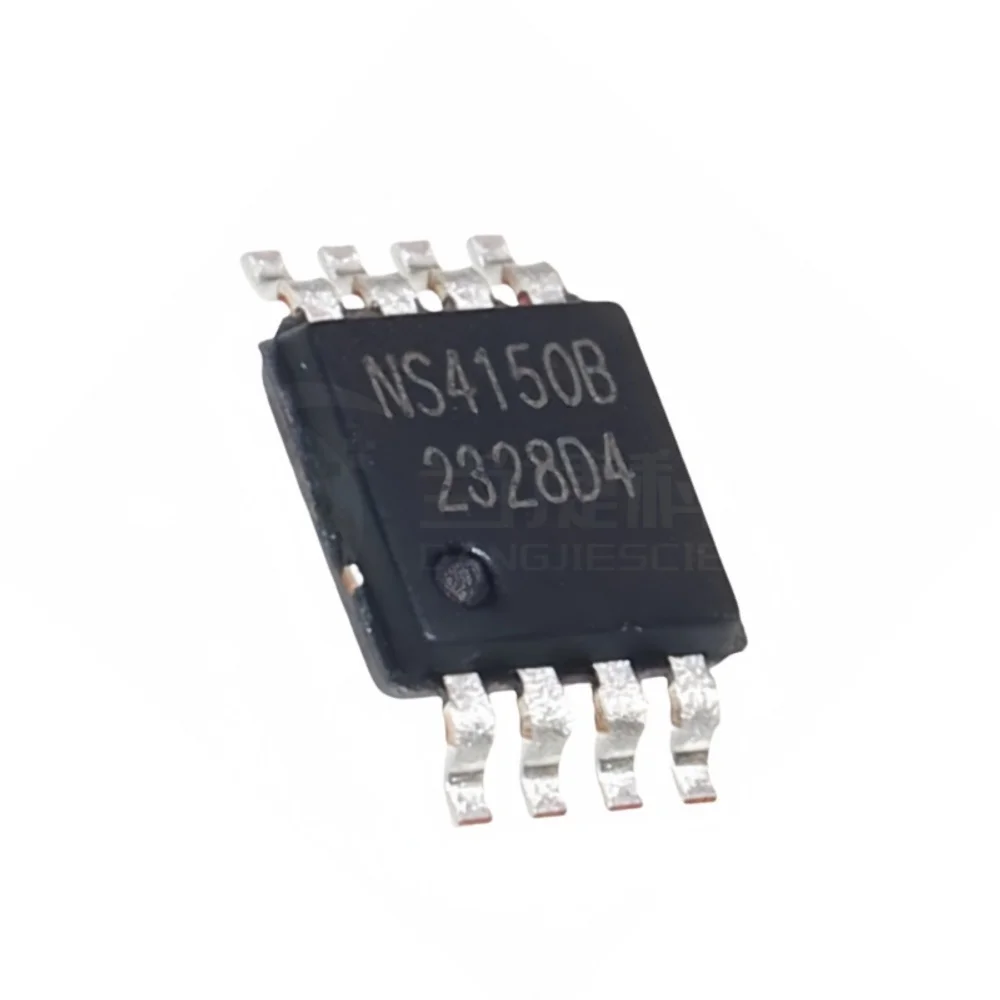

NS4150B 3W Mono Class-D Audio Power Amplifier MSOP-8

NS4150B 3W Mono Class-D Audio Power Amplifier MSOP-8 is a highly efficient, filter-less mono Class-D audio amplifier designed to deliver high-quality sound in space-constrained portable applications. This compact integrated circuit utilizes a specialized architecture that eliminates the need for bulky output filters, which significantly reduces the overall bill of materials and board space. Furthermore, the NS4150B achieves an impressive efficiency of up to 90%, ensuring that your device conserves battery life while minimizing heat generation during operation. Consequently, it represents an ideal solution for modern mobile electronics that require loud, clear audio output from a minimal footprint. Therefore, you can easily integrate this amplifier into your next DIY project or commercial product to achieve professional-grade audio performance with extreme power efficiency.

Key Features:

• High Efficiency: The Class-D architecture ensures up to 90% efficiency, extending the battery life of portable devices compared to traditional Class-AB amplifiers.
• Filter-less Design: This module requires no external LC low-pass filters, reducing component count and simplifying the PCB layout.
• Excellent Noise Suppression: Advanced PWM technology provides superior signal-to-noise ratios and minimizes electromagnetic interference (EMI).
• Comprehensive Protection: The IC includes built-in over-current protection, short-circuit protection, and thermal shutdown features to prevent damage during fault conditions.
• Low Shutdown Current: It features a dedicated shutdown mode that draws less than 0.1 μA, making it perfect for power-sensitive applications.

Technical Specifications:

• Operating Voltage Range: 2.5 V to 5.5 V DC
• Output Power: 3.0 W (at 5 V supply, 4 Ω load, 10% THD+N)
• Efficiency: ≈ 90% (at 8 Ω load)
• Quiescent Current: 3.0 mA typical
• Signal-to-Noise Ratio (SNR): 80 dB
• Total Harmonic Distortion (THD+N): < 0.1% (at 1 W, 8 Ω load)
• Operating Temperature: −40°C to +85°C

Mechanical Specifications:

• Package Type: MSOP-8 (Mini Small Outline Package)
• Mounting Type: Surface Mount Device (SMD/SMT)
• Number of Pins: 8 Pins
• Encapsulation: Plastic Green Mold Compound

Dimensions:

• Body Length: ≈ 3.00 mm
• Body Width: ≈ 3.00 mm
• Overall Width (including pins): ≈ 4.90 mm
• Height: ≈ 1.10 mm (Maximum)
• Pin Pitch: 0.65 mm

Pinout and Wiring:

• Pin 1 (CTRL/SD): Shutdown control pin; pull low to disable the amplifier and high for normal operation.
• Pin 2 (BYPASS): Connect a bypass capacitor here to stabilize the internal reference voltage.
• Pin 3 (IN+): Positive audio signal input.
• Pin 4 (IN-): Negative audio signal input (or connect to ground via capacitor for single-ended input).
• Pin 5 (VO+): Positive audio output to the speaker.
• Pin 6 (VDD): Main power supply input (2.5 V to 5.5 V).
• Pin 7 (GND): System ground connection.
• Pin 8 (VO-): Negative audio output to the speaker.

Datasheet Reference:

• Download NSIWAY NS4150B Class-D Amplifier Datasheet

Commonly Used in:

• Bluetooth Speakers: Providing high-power audio output in compact, rechargeable sound systems.
• Smart Home Devices: Powering the voice output for smart assistants and interconnected appliances.
• Handheld Gaming Consoles: Driving small internal speakers with high efficiency to preserve battery life.

Applications:

• Portable Audio Players: However, it is most frequently used in MP3 players and portable docking stations.
• Mobile Phones and Tablets: Enhancing the speaker output without consuming excessive internal board space.
• Navigation Systems: Providing clear voice prompts in GPS and automotive diagnostic tools.

Equivalent Models:

• PAM8403: A common dual-channel Class-D alternative, though it occupies a larger footprint than the NS4150B.
• TPA2005D1: A high-quality mono Class-D amplifier from Texas Instruments with similar power ratings and package options.
• HT8691: A comparable mono audio amplifier often utilized as a functional cross-reference in consumer electronics.

Package Includes:

• 1 x NS4150B 3W Mono Class-D Audio Power Amplifier MSOP-8
