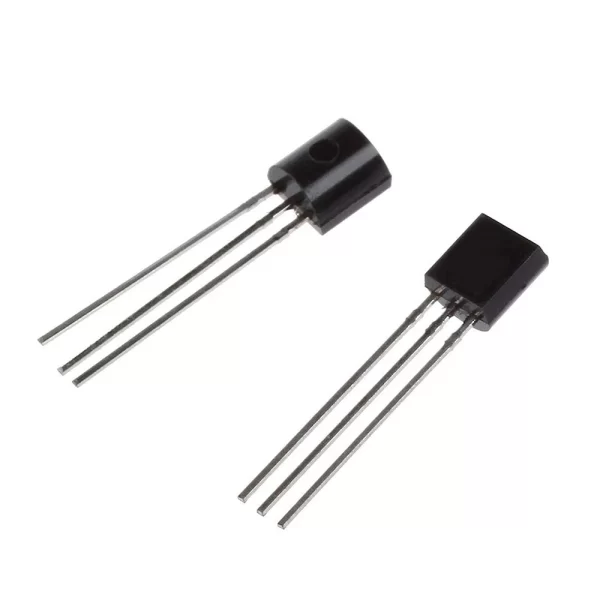

BT66/UM66 Melody Generator Musical Alarm IC TO-92

BT66/UM66 Melody Generator Musical Alarm IC TO-92 is a CMOS-integrated circuit designed to provide high-quality melody synthesis for various electronic applications. This low-power device incorporates an internal ROM programmed with a specific musical tune, which simplifies the design of audible notification systems. Consequently, engineers can implement musical alarms or chimes without the need for complex programming or external microcontrollers. The IC operates efficiently on low voltage, making it perfect for battery-powered devices. Furthermore, its small TO-92 footprint ensures it fits easily into space-constrained hobbyist and industrial projects alike. Therefore, you should utilize this reliable generator whenever your circuit requires a simple yet effective audio signaling solution.

Key Features:

• Integrated Melody ROM: The chip features a pre-programmed musical sequence, which eliminates the requirement for external memory or digital-to-analog conversion stages.
• Low Power Consumption: It draws minimal current during operation, thereby extending the battery life of portable electronic toys and gadgets.
• Simple Trigger Mechanism: The IC starts playing the melody immediately upon power application, allowing for straightforward integration into existing circuits.
• Compact TO-92 Package: Its transistor-style casing provides easy handling for through-hole soldering and breadboard prototyping.
• Wide Frequency Response: Built-in oscillators produce clear, distinct tones, ensuring the musical output remains audible and pleasant.

Technical Specifications:

• Operating Voltage Range: 1.3 V to 3.3 V (Typical 1.5 V or 3.0 V)
• Standby Current: ≈ 1.0 μA
• Operating Current: ≈ 60 μA to 100 μA
• Internal Oscillator Frequency: ≈ 64 kHz to 100 kHz
• Output Type: Driven by an internal NPN transistor (Direct drive for small speakers or piezo buzzers)
• Operating Temperature: −10°C to +60°C

Mechanical Specifications:

• Package Type: TO-92 (Plastic Package)
• Mounting Type: Through-Hole Technology (THT)
• Lead Material: Solder-plated copper alloy
• Body Material: Molded plastic epoxy

Dimensions:

• Body Height: ≈ 4.58 mm
• Body Width: ≈ 4.58 mm
• Body Thickness: ≈ 3.80 mm
• Lead Length: ≈ 13.5 mm to 15.0 mm
• Lead Pitch: ≈ 1.27 mm

Pinout and Wiring:

• Pin 1 (VSS/GND): Connect this pin to the negative terminal of the power supply or circuit ground.
• Pin 2 (VDD): Connect to the positive supply voltage (typically 1.5 V to 3 V).
• Pin 3 (Output): Connect to a piezo buzzer or the base of a transistor to drive a larger 8 Ω speaker.
• Wiring Note: However, always ensure you use a small electrolytic capacitor across the VDD and VSS pins to maintain stable melody playback.

Datasheet Reference:

• Download BT66/UM66 Melody Generator IC Datasheet

Commonly Used in:

• Musical Greeting Cards: Manufacturers use these chips extensively to play short tunes when a card opens.
• Electronic Toys: Designers integrate these ICs into dolls and simple gaming devices for cost-effective sound effects.
• Doorbell Systems: It serves as the primary sound source for simple, low-power battery-operated door chimes.

Applications:

• Audible Alarms: Providing a pleasant musical alert for timers, clocks, or low-battery indicators.
• Telephone Ringers: Used in older or novelty telephone designs to generate melodic ringing tones.
• Project Notifications: Furthermore, hobbyists use it in DIY electronics to signal the completion of a specific task or process.

Equivalent Models:

• UM66T Series: The most common alternative, offering various melody options like “Jingle Bells” or “Happy Birthday.”
• BT66T: A direct functional equivalent often used in identical circuit configurations.
• M11/M33 Series: Similar melody generator chips, however, you must verify the pinout compatibility before substitution.

Package Includes:

• 1 x BT66/UM66 Melody Generator Musical Alarm IC TO-92
