LM3915 DIY Kit Electronic Audio Indicator DIY Kit

LM3915 DIY Kit Electronic Audio Indicator DIY Kit provides an engaging and educational way to visualize audio signals using a logarithmic 10-segment LED display. This kit centers around the powerful LM3915 IC, which senses analog voltage levels and drives a series of LEDs to indicate the intensity of the input signal in 3 dB increments. Consequently, it offers a professional-grade “VU meter” effect that accurately represents how the human ear perceives sound volume changes. Users will find the assembly process straightforward, as the high-quality PCB features clear silk-screen labeling for every component. Furthermore, the adjustable sensitivity allows the module to work perfectly with various audio sources ranging from mobile phones to high-power amplifiers. Therefore, you should consider this kit as a perfect addition to any custom speaker build or as a standalone piece of desktop audio equipment.

Key Features:

• Logarithmic Display: The LM3915 IC drives LEDs in a 3 dB per step log scale, which is essential for accurate audio power and signal level monitoring.
• Adjustable Sensitivity: An on-board potentiometer allows you to fine-tune the display range to match your specific audio input level.
• Dual Display Modes: Users can easily switch between “Dot” mode (single LED moving) and “Bar” mode (continuous strip of light) by adjusting a simple jumper or pin connection.
• Wide Voltage Range: The circuit operates efficiently on a variety of DC power supplies, making it compatible with most standard battery packs and power adapters.
• DIY Educational Value: Assembling this kit helps hobbyists understand signal processing, voltage dividers, and LED driver circuitry through hands-on experience.

Technical Specifications:

• Operating Voltage: 9 V to 12 V DC
• Input Signal Type: Analog Audio (Line Level)
• Display Range: 30 dB (Logarithmic, 3 dB steps)
• Quiescent Current: ≈ 10 mA
• Full Scale Current: ≈ 70 mA to 100 mA (with all LEDs lit in Bar mode)
• LED Configuration: 10 Segments (typically 7 Green, 3 Red or 10 Blue)
• Input Impedance: ≥ 10 kΩ

Mechanical Specifications:

• PCB Material: FR-4 High-Quality Glass Fiber Board
• Mounting Method: Through-hole soldering for all discrete components
• Connector Type: Screw terminals or solder pads for Power and Signal input
• PCB Finish: Solder-masked with white silk-screen component legend

Dimensions:

• PCB Length: ≈ 62 mm
• PCB Width: ≈ 27 mm
• Overall Height: ≈ 15 mm (including LED height)
• Mounting Hole Diameter: ≈ 3.0 mm

Pinout and Wiring:

• VCC/12V: Connect to the positive terminal of your 9 V – 12 V DC power source.
• GND: Connect to the common ground (negative terminal) of the power supply and audio source.
• Signal IN: Connect to the audio source (e.g., L or R channel of a headphone jack or pre-amp output).
• Mode Pin: Bridge to VCC for Bar mode or leave open for Dot mode operation.
• Wiring Note: However, you must ensure that the audio input does not exceed the VCC voltage to prevent damage to the IC.

Datasheet Reference:

• Download Texas Instruments LM3915 IC Datasheet

Commonly Used in:

• Custom Audio Amplifiers: Adding a visual volume level display to DIY home theater or portable speakers.
• Studio Gear: Building rack-mounted level indicators for monitoring recording signal paths.
• Modding Projects: Integrating reactive lighting into PC cases or car audio consoles.

Applications:

• VU Metering: Providing a visual reference for audio amplitude in real-time.
• Battery Level Indication: Modifying the input divider allows this kit to act as a precise voltage level monitor for battery packs.
• Sound Pressure Visualization: Connecting a microphone pre-amplifier converts this module into a reactive sound-level meter.

Equivalent Models:

• LM3914 Kit: Features a linear scale rather than logarithmic, making it better for battery testers than audio meters.
• LM3916 Kit: Designed specifically for audio with a scale that closely mimics standard VU meter ballistics.
• KA2284 Module: A smaller, 5-LED alternative; however, it offers significantly less resolution than the 10-segment LM3915.

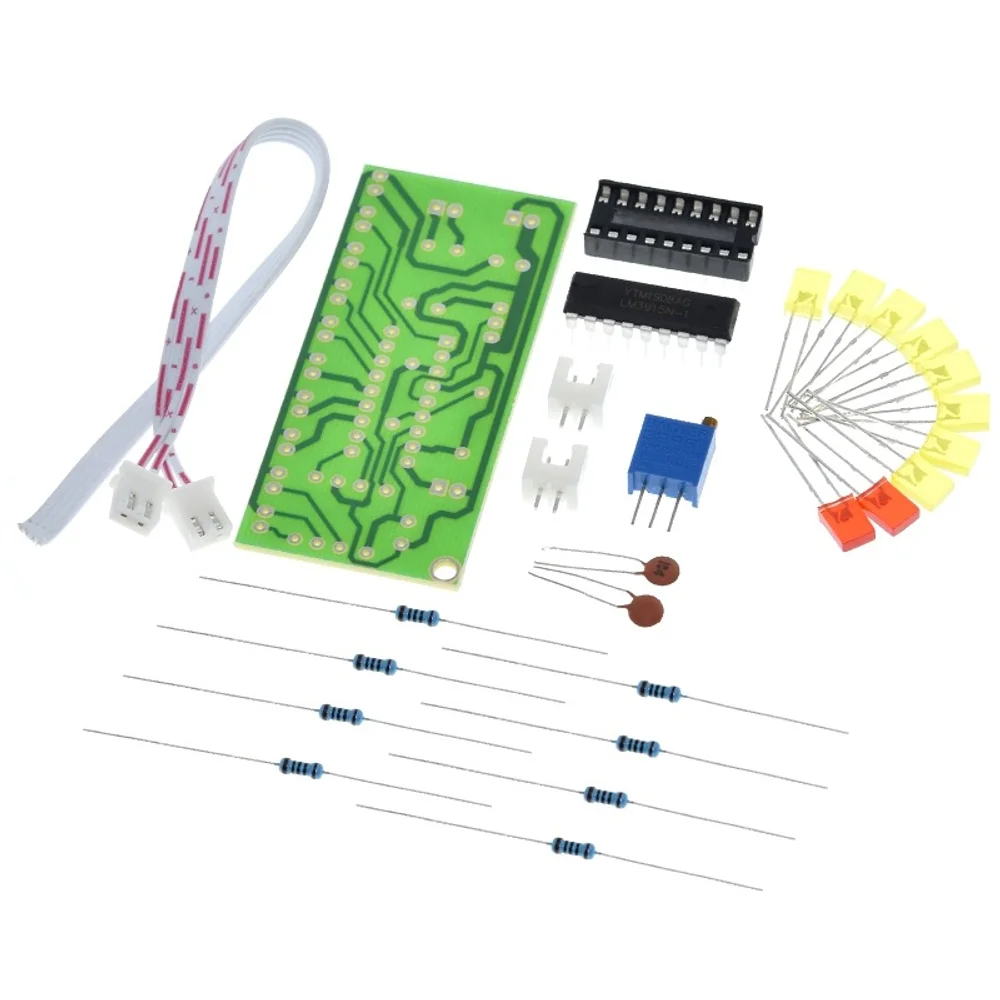

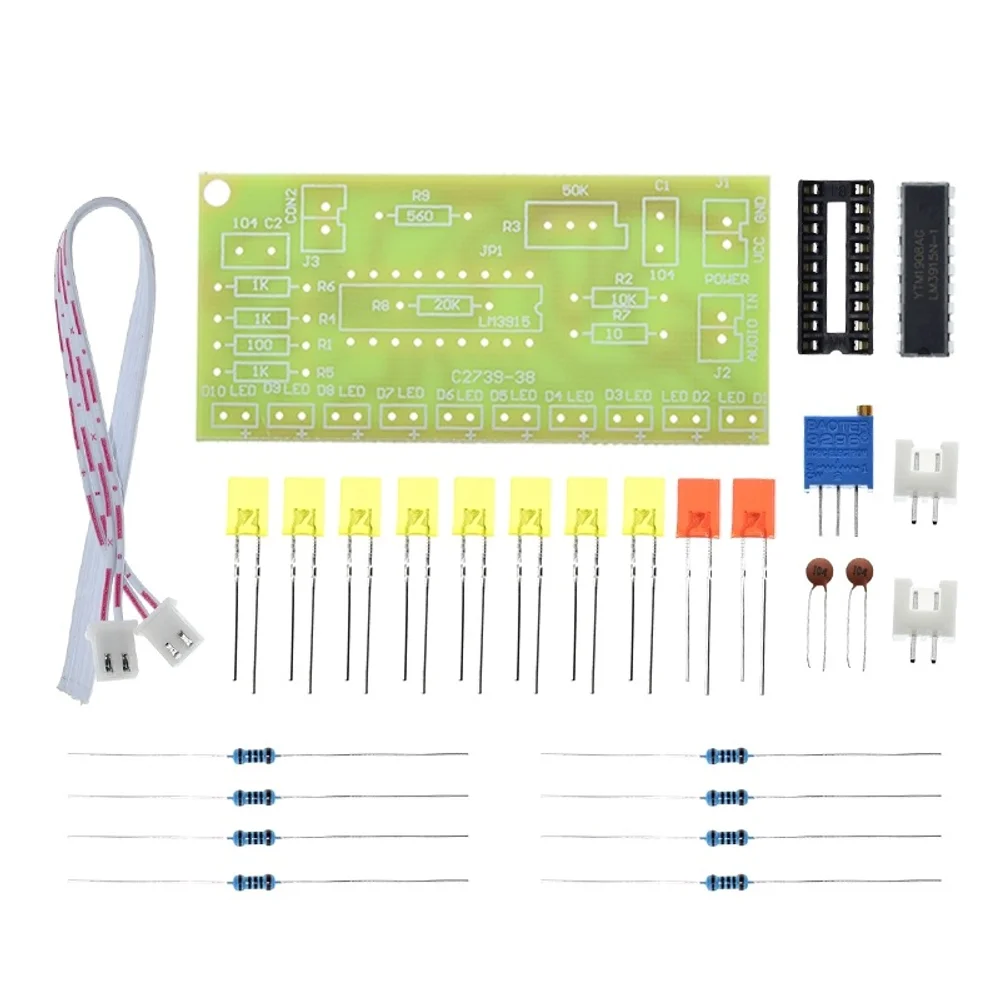

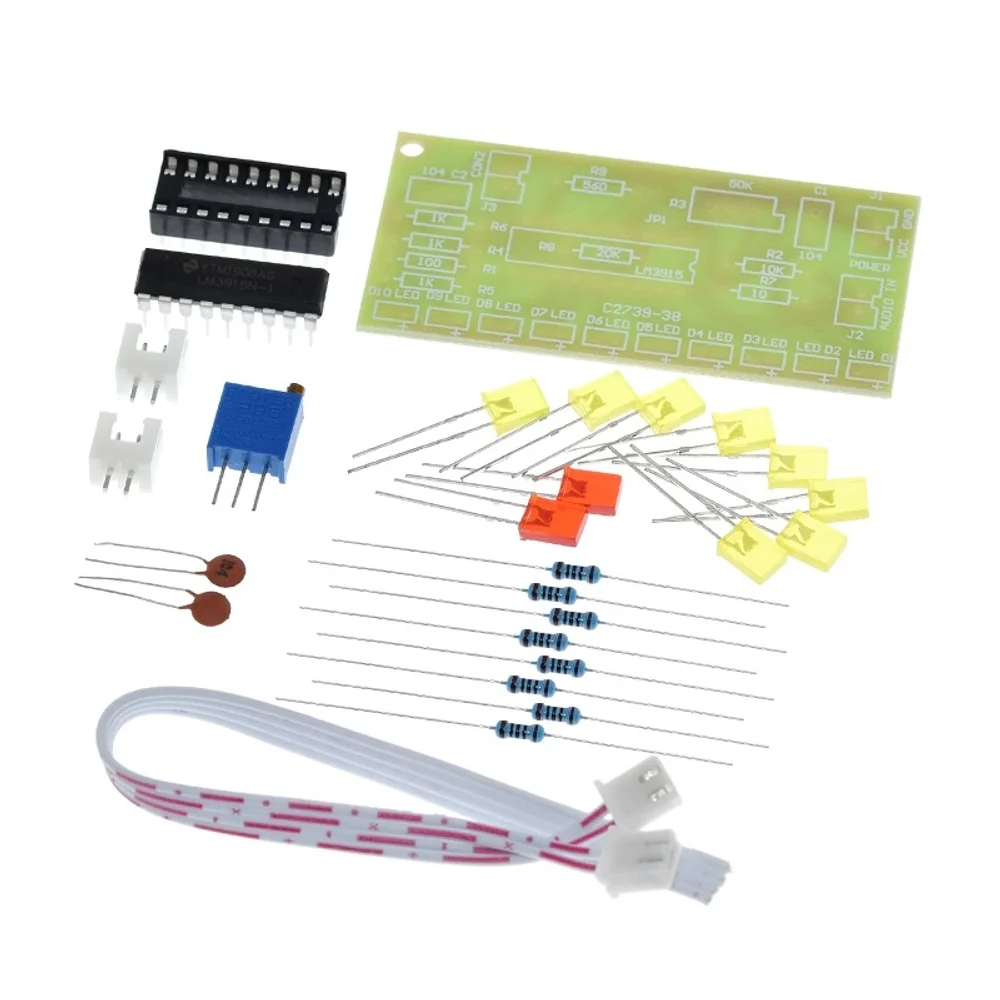

Package Includes:

• 1 x High-Quality FR-4 Printed Circuit Board (PCB)
• 1 x LM3915 Monolithic Dot/Bar Display Driver IC
• 1 x 18-Pin IC Socket
• 10 x Rectangular LEDs (Various Colors)
• 1 x Complete Set of Resistors, Capacitors, and Potentiometer
