DIY NE555 Ding Dong Bell Doorbell Module Kit DIY

DIY NE555 Ding Dong Bell Doorbell Module Kit DIY is an engaging, educational soldering project designed to produce the classic “Ding-Dong” chime using the versatile NE555 timer integrated circuit. This kit provides all the necessary discrete components to build a fully functional electronic doorbell from scratch, making it an excellent choice for hobbyists and students. Furthermore, the circuit utilizes a clever dual-frequency oscillation technique to mimic the acoustic resonance of mechanical bells. Consequently, users gain hands-on experience with timing circuits, capacitor discharge cycles, and audio signal generation. Therefore, you can use this kit to master fundamental electronics assembly while creating a practical device for home or classroom use.

Key Features:

• NE555 Timer Heart: The kit centers around the legendary NE555 IC, which reliably controls the pulse width and frequency of the chime sounds.
• Dual-Tone Generation: High-quality capacitors and resistors work together to produce two distinct tones, effectively replicating the traditional ding-dong sequence.
• Educational Value: This project offers a clear, manageable entry point into through-hole soldering and circuit board population for beginners.
• Low Power Operation: The module operates efficiently on standard low-voltage DC, ensuring safety and long battery life for portable setups.
• Adjustable Feedback: The component values determine the decay and pitch, allowing advanced users to experiment with the sound profile.

Technical Specifications:

• Operating Voltage: 4.0 V to 7.0 V DC (Typical 5 V)
• Working Current: ≈ 50 mA (During chime)
• Standby Current: < 5 mA
• Speaker Impedance: 8 Ω (Included in most kits)
• Output Power: ≈ 0.25 W to 0.5 W
• Tone Frequency: Dual-frequency modulated via RC network

Mechanical Specifications:

• PCB Type: Single-sided FR-4 high-quality glass fiber board
• Soldering Type: Through-Hole Technology (THT)
• Solder Mask: Green with clear white silk-screen component labeling
• Component Layout: Optimized for ease of assembly with labeled polarities for electrolytic capacitors and ICs.

Dimensions:

• PCB Length: ≈ 40 mm
• PCB Width: ≈ 35 mm
• Mounting Hole Diameter: ≈ 3.0 mm
• Overall Height: ≈ 15 mm (Including components)

Pinout and Wiring:

• VCC (+): Connect to the positive terminal of your 5 V DC power source.
• GND (-): Connect to the negative terminal or common ground of the power supply.
• SPK Out: Terminals for connecting the 8 Ω speaker leads (polarity usually not critical for single speaker).
• Switch Interface: Connect the provided momentary push-button to these terminals to trigger the chime.
• Wiring Note: However, ensure you observe the polarity of the electrolytic capacitors and the orientation of the NE555 IC notch during assembly to prevent circuit failure.

Datasheet Reference:

• Download TI NE555 Timer IC Datasheet

Commonly Used in:

• STEM Education: Schools frequently use this kit to teach the basics of RC timing and integrated circuit functionality.
• DIY Electronics Projects: Enthusiasts incorporate this module into custom enclosures or smart home prototypes.
• Introductory Soldering Labs: It serves as a perfect “first build” for students transitioning from breadboards to permanent PCBs.

Applications:

• Home Doorbell: Building a simple, functional doorbell for indoor use or as a workshop alert.
• Electronic Toys: Integrating sound effects into custom-made toys or mechanical models.
• Announcement Systems: Providing a clear audio cue for customer entry in small retail environments.

Equivalent Models:

• Discrete Multi-vibrator Circuits: Transistor-based bell circuits, however, these often lack the stability of the NE555 design.
• UM66 Melody Modules: Simple 3-pin ICs that play music, though they do not offer the same “Ding-Dong” technical experience.
• Microcontroller-based Sounders: Using an Arduino to play tones, consequently requiring much more complex programming and overhead.

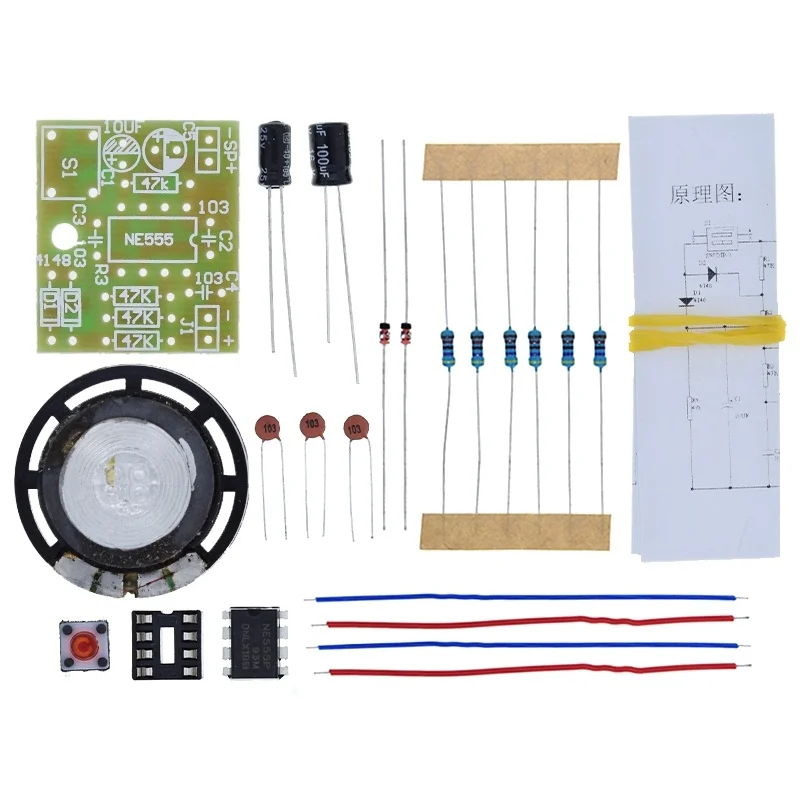

Package Includes:

• 1 x Pre-drilled FR-4 PCB
• 1 x NE555 IC
• 1 x 8-Pin IC Socket
• 1 x 8 Ω Speaker
• 1 x Push Button Switch
• and All Required Resistors and Capacitors.
