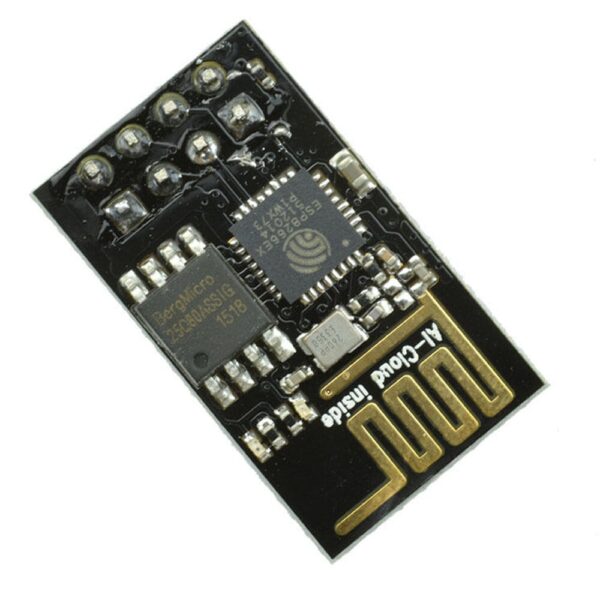

ESP8266-01 SERIAL WIFI WIRELESS MODULE

The ESP-01 ESP8266 Serial WIFI Wireless Transceiver Module is a self-contained SOC with integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. The ESP8266 is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers (and that’s just out of the box)! The ESP8266 module is an extremely cost-effective board with a huge, and ever growing, community.

This module has a powerful enough onboard processing and storage capability that allows it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, is designed to occupy minimal PCB area. The ESP8266 supports APSD for VoIP applications and Bluetooth co-existing interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions and requires no external RF parts.

There is an almost limitless fountain of information available for the ESP8266, all of which has been provided by amazing community support. In the Documents section below you will find many resources to aid you in using the ESP8266, even instructions on how to transforming this module into an IoT (Internet of Things) solution!

Note: The ESP8266 Module is not capable of 5-3V logic shifting and will require an external Logic Level Converter. Please do not power it directly from your 5V dev board.

Note This item is not 5v tolerant. You must use at 3.3v for this Esp8266-01 module.

Electrical Characteristics:

• • Communication range up to 100 yards depending on environment.
  • Standard 3 wire (TXD/RXD/GND) serial communication (idle high) at 115200/8/N/1.
  • Standard 0.1″ (2.54mm) 4×2 header. (Other form factor available)
  • Three mode of operations: Client/Access Point/Both Client and Access Point.
  • Support all major security schemes: OPEN/WEP/WPA_PSK/WPA2_PSK/WPA_WPA2_PSK.
  • Working as TCP/UPD server supports up to five (5) connections.
  • Working as station can connect up to 5 TCP/UPD servers. The ESP-01 can connect to all standard non-SSL websites in the world.
  • Integrated TCP/IP protocol stack
  • +19.5dBm output power in 802.11b mode
  • Power down leakage current of <10uA
  • Integrated low power 32-bit CPU could be used as application processor
  • SDIO 1.1 / 2.0, SPI, UART
  • STBC, 1×1 MIMO, 2×1 MIMO
  • A-MPDU & A-MSDU aggregation & 0.4ms guard interval
  • Wake up and transmit packets in < 2ms
  • Standby power consumption of < 1.0mW (DTIM3)

Connections:

• • GND – ground
  • UTXD – serial transmit (idle high)
  • URXD – serial receive (idle high)
  • VCC – 3.3VDC
  • CH_PD – must pull high or just connect to VCC
  • RST – must pull high or just connect to VCC
  • GPIO0 – must pull high or just connect to VCC
  • GPIO2 – must pull high or just connect to VCC

Applications:

• • IOT Project
  • Add Wi-Fi capabilities to any projects.
  • Create Wi-Fi extender
  • To make access point
  • To make internet hotspot

DataSheet:

• • Download Datasheet

Known As:

• • • ESP8266-01

Package Includes:

1. 1. • 1 X ESP-01 ESP8266 Serial WIFI Transceiver Module
