NE555 Component Electronics Electric Piano DIY Kit Module

NE555 Component Electronics Electric Piano DIY Kit Module Electronics students and hobbyists utilize this classic DIY learning kit to master the fundamentals of analog sound synthesis and oscillation frequencies. Consequently, it utilizes a precision NE555 timer configured as an astable multivibrator where varying resistance values alter the output audio frequency across a small speaker. Therefore, this interactive kit serves as an excellent educational assembly project for practicing precision soldering while exploring the relationship between component values and acoustic pitch.

Key Features:

• 8-Note Scale Playability: Features 8 tactile musical keys complete with custom caps to produce 8 distinct frequencies or tones across a standard monophonic scale.
• Astable Multivibrator Architecture: Leverages the ubiquitous NE555 timer IC to handle stable, reliable frequency oscillation purely through analog hardware without programming.
• Onboard Dynamic Audio Output: Equipped with a low-impedance 8 Ω 0.5W speaker for immediate sound generation upon key activation.
• Clear Component Silkscreen: Features a clearly labeled PCB silkscreen layer with distinct component outlines to guide beginners during manual soldering.
• Low Power Consumption: Operates efficiently on standard low-voltage DC power sources, making it safe for classroom environments and battery operation.

Technical Specifications:

• Operating Voltage: 3 V to 12 V DC (5V nominal input recommended).
• Core Integrated Circuit: NE555 Precision Timer IC.
• Audio Output Device: 8 Ω 0.5W Dynamic Speaker.
• Tone Control Channel: 8-key input array mapping specific series resistance values to discrete frequencies.
• Circuit Type: Analog sound generation network (No programming required).

Mechanical Specifications:

• PCB Shape: Slim rectangular keyboard strip layout optimized for linear button placement.
• PCB Color: High-contrast green mask with clear white component designations.
• Assembly Type: Through-hole technology (THT) for straightforward manual component population.

Dimensions:

• PCB Length: ≈ 135.00 mm.
• PCB Width: ≈ 22.00 mm.
• Total Kit Weight: ≈ 35.00 g (Includes speaker, keys, and discrete components).

Pinout and Wiring:

• Power Input Node (+): Direct connection terminal to the positive rail of a 3V–12V DC power source or battery holder.
• Ground Input Node (-): Direct connection terminal to the negative/GND supply terminal.
• Key Inputs (S1–S8): Parallel-to-series switch network that inserts specific resistors into the NE555 charging loop to shift the output pitch.

Datasheet Reference: Download Datasheet

• NE555 Monophonic Electric Piano DIY Assembly and Frequency Formula Guide

Commonly Used in:

• Vocational Labs: Teaching vocational or engineering students fundamental concepts of frequency calculation, capacitance charging cycles, and basic acoustics.
• Soldering Practice Kits: Standard introductory tool for beginners to gain confidence with through-hole components, multi-switch arrays, and basic audio peripherals.
• STEM Education: Acting as an engaging hands-on project to introduce younger students to simple electronic instruments and analog circuit sound generation.

Applications:

• Analog Sound Generation Training: Enhancing practical understanding of manipulating resistor-capacitor (RC) time constants to scale sound wave pitches. However, running excessively high voltages over extended periods can cause overheating in the NE555 chip or speaker coil; therefore, technicians must strictly verify recommended supply thresholds and avoid leaving keys continuously closed.

Equivalent Models:

• Discrete Transistor Organ Kit: A legacy multi-tone sound generator kit built entirely on discrete multi-vibrator transistor pairs without integrated circuits.
• Microcontroller-Based Polyphonic Synth: A modern MCU-driven synthesizer kit that uses code-based pulse-width modulation (PWM) to output advanced polyphonic audio tracks.

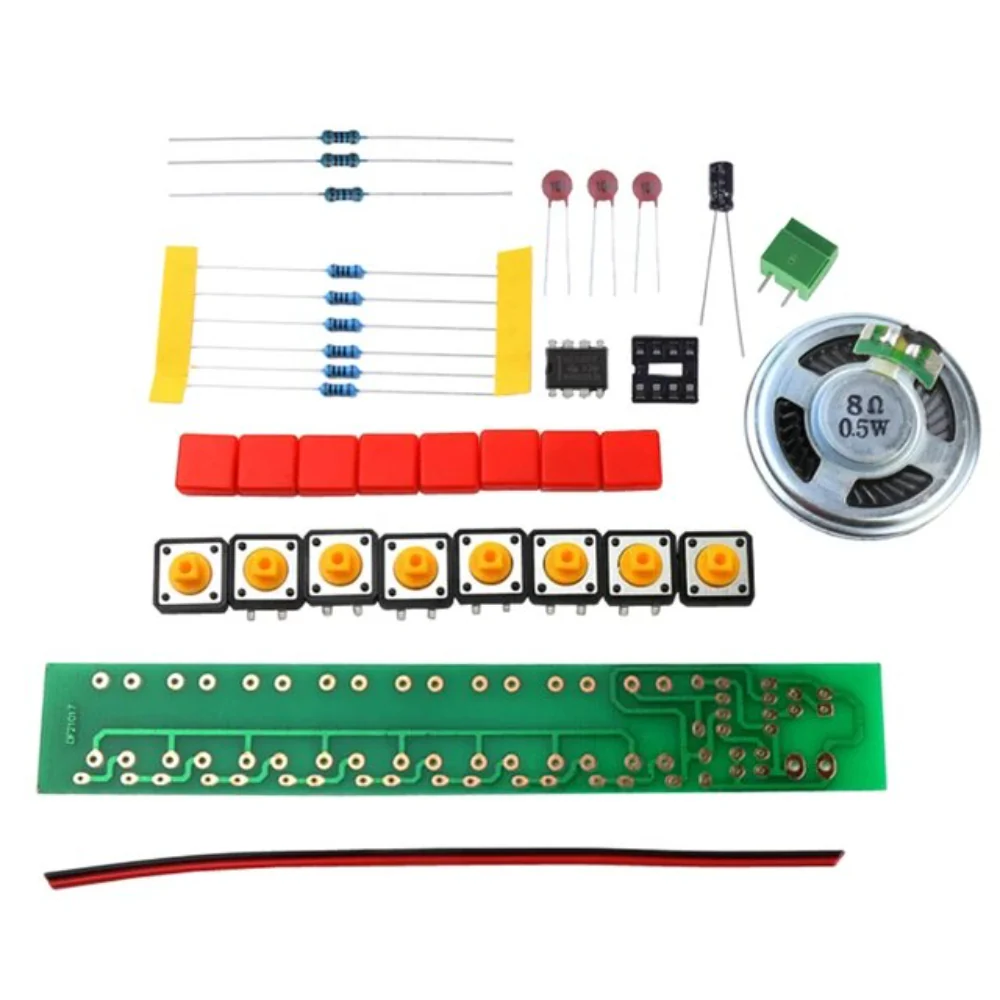

Package Includes:

• 1 × High-Quality Slim Keyboard PCB Board
• 1 × NE555 Precision Timer IC
• 1 × 8-Pin DIP IC Socket
• 1 × 8 Ω 0.5W Dynamic Speaker
• 8 × Tactile Push Button Switches (with Yellow Plungers)
• 8 × Vibrant Red Square Keycaps
• 1 × 2-Pin Screw Terminal Block
• 9 × Metal Film Through-Hole Resistors (Selected for Tone Configuration)
• 3 × Ceramic Disc Capacitors
• 1 × Electrolytic Capacitor
• 1 × Dual-Core Power Hookup Wire (Red/Black)
