ADUM1201 Magnetic Isolator Module

ADUM1201 Magnetic Isolator ModuleThis high-performance ADUM1201 Magnetic Isolator Module provides complete galvanic isolation between two digital circuits, protecting sensitive microcontrollers from high-voltage spikes and ground loops. Furthermore, it utilizes Analog Devices’ iCoupler technology, consequently combining high-speed CMOS and monolithic transformer technologies to deliver superior performance compared to optocouplers. Therefore, it is an essential component for industrial automation, medical equipment, and noisy communication lines. However, users must ensure that both side power domains (V1 and V2) are supplied independently to maintain proper isolation barriers. Specifically, the purple PCB features a compact dual-channel layout with clearly labeled breakout pins for effortless wiring. Moreover, the bi-directional data transmission capability allows for flexible communication routing. Ultimately, this module ensures safe and reliable signal integrity in harsh electrical environments.

Key Features:

• Dual-Channel Isolation: Provides two independent isolation channels for bidirectional or unidirectional digital signals.
• iCoupler Technology: Uses high-frequency magnetic coils to transfer data safely across the isolation barrier without optical degradation.
• High Transient Immunity: Offers exceptional common-mode transient immunity (CMTI), consequently preventing data corruption in high-noise environments.
• Low Power Operation: Consumes minimal quiescent current across both operating domains.
• Wide Compatibility: Supports standard logic levels for seamless integration with 3.3V and 5V microcontrollers.
• Compact Footprint: Tiny module design easily fits onto breadboards and custom carrier PCBs.

Technical Specifications:

• Isolation IC: ADuM1201ARZ
• Number of Channels: 2 Independent Channels
• Input/Output Power Supply (V1/V2): 2.7V to 5.5V DC
• Maximum Data Rate: Up to 1 Mbps (or higher depending on specific chip grade)
• Isolation Voltage: 2500 Vrms for 1 minute per UL 1577
• Operating Temperature Range: −40°C to +105°C

Mechanical Specifications:

• PCB Substrate: Purple FR4 Fiberglass Board
• Pin Layout: Dual 4-pin header rows on either side of the isolation gap
• Component Technology: Surface Mount Technology (SMT) with integrated decoupling capacitors

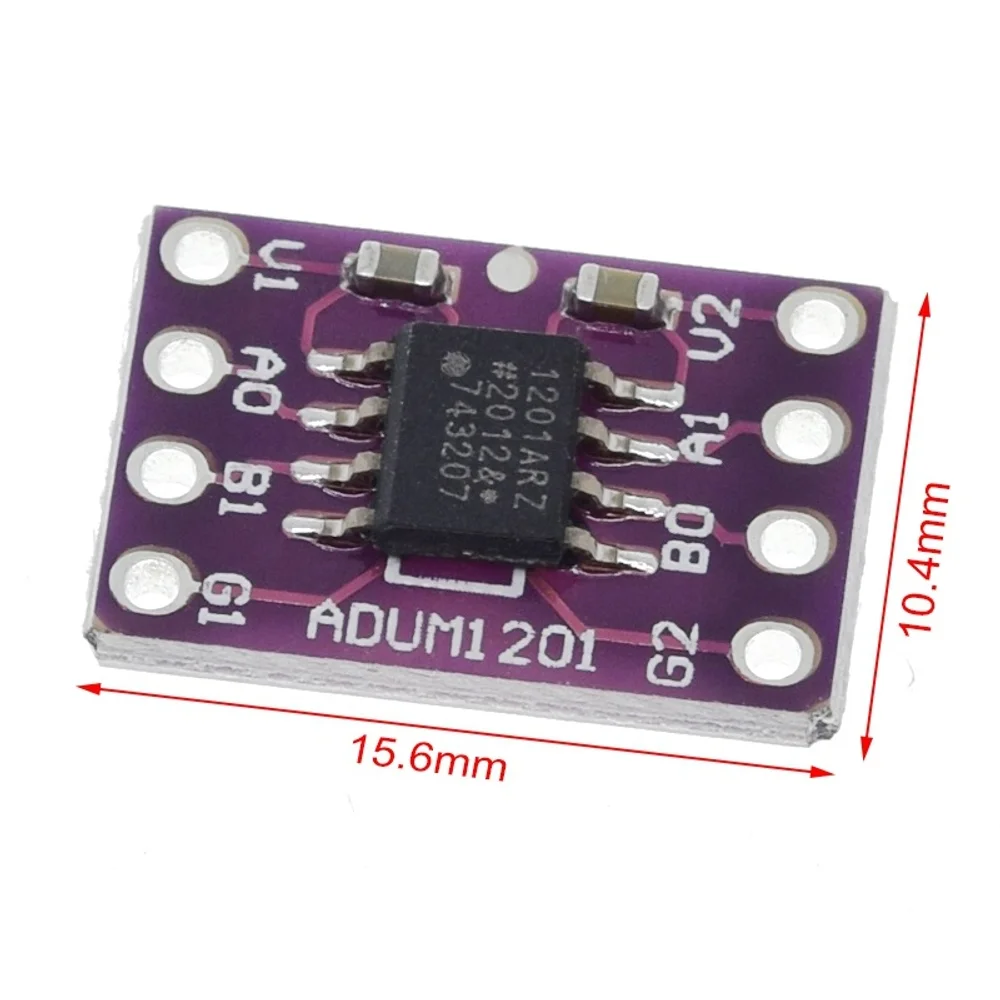

Dimensions:

• Board Length: ≈ 20.0 mm
• Board Width: ≈ 15.0 mm
• Height: ≈ 4.0 mm

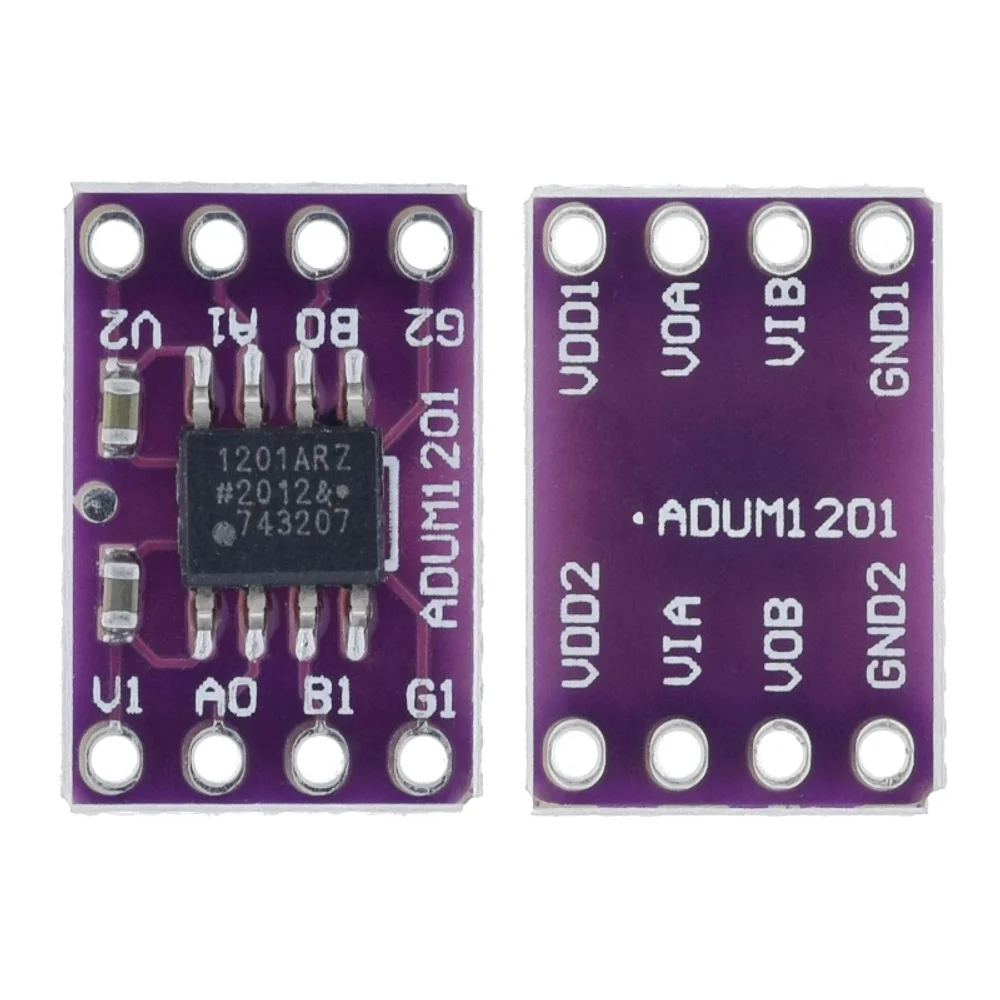

Pinout and Wiring:

• V1: Power supply input for Side 1 (2.7V–5.5V).
• A0 / B1: Data channels on Side 1 (configured as input/output).
• G1: Ground reference for Side 1.
• V2: Power supply input for Side 2 (2.7V–5.5V).
• AI / B0: Data channels on Side 2 (isolated counterpart to Side 1).
• G2: Ground reference for Side 2 (completely isolated from G1).

Datasheet Reference:

• Download ADuM1201 Dual-Channel Digital Isolator Datasheet

Commonly Used in:

• Industrial Automation: Protecting control systems from high-voltage motor and relay transients.
• Medical Instruments: Ensuring patient safety by isolating low-voltage logic from mains-powered peripherals.
• Communication Interfaces: Breaking ground loops in SPI, UART, and I2C bus lines.

Applications:

• Ground Loop Elimination: Preventing unwanted noise currents between interconnected digital devices.
• High-Voltage Power Supplies: Safely transmitting control signals across primary and secondary power stages.
• Microcontroller Protection: Shielding delicate GPIO pins from external static and inductive spikes.

Equivalent Models:

• ADUM1200 Module: A similar dual-channel isolator featuring two channels in the same direction.
• ADUM1301 Module: A 3-channel magnetic isolation board for more complex bus lines.
• PC817 Optocoupler Board: A traditional, slower optical isolation alternative.

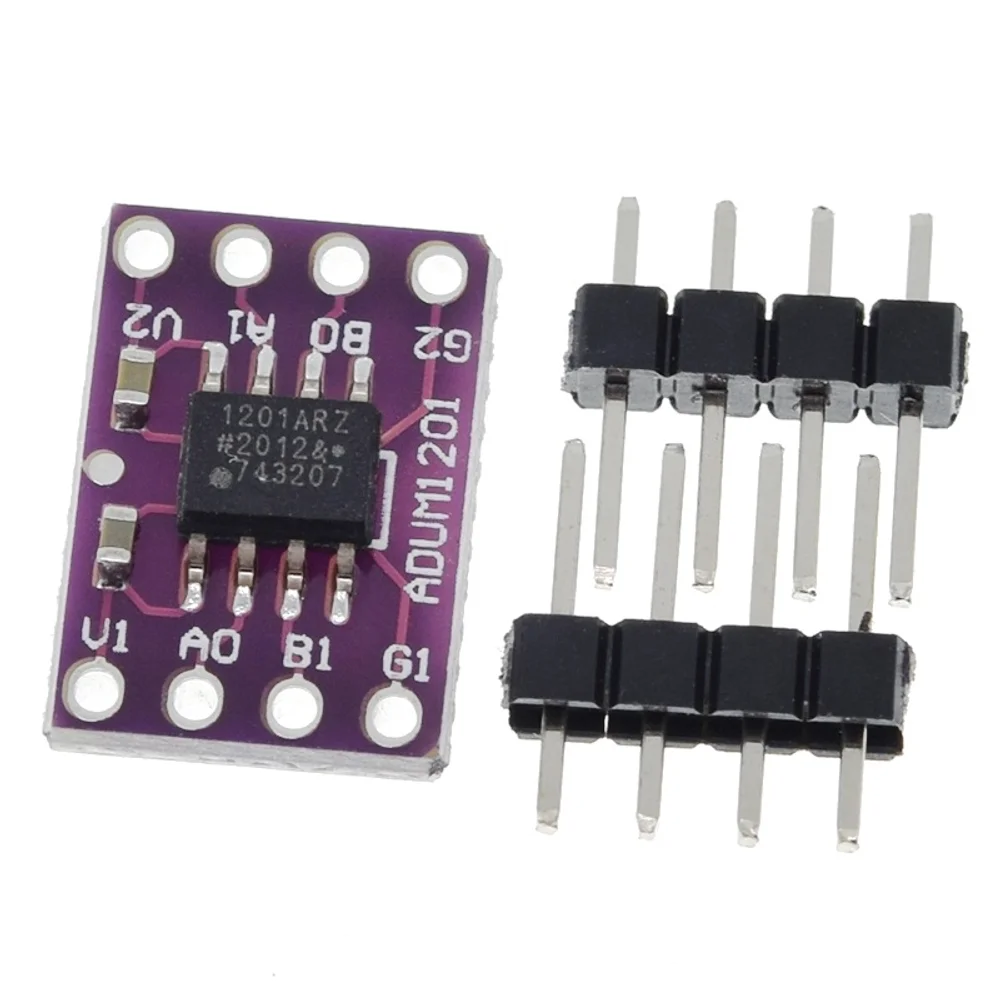

Package Includes:

• 1 x ADUM1201 Magnetic Isolator Module
• 2 x 4-Pin Male Header Strips
