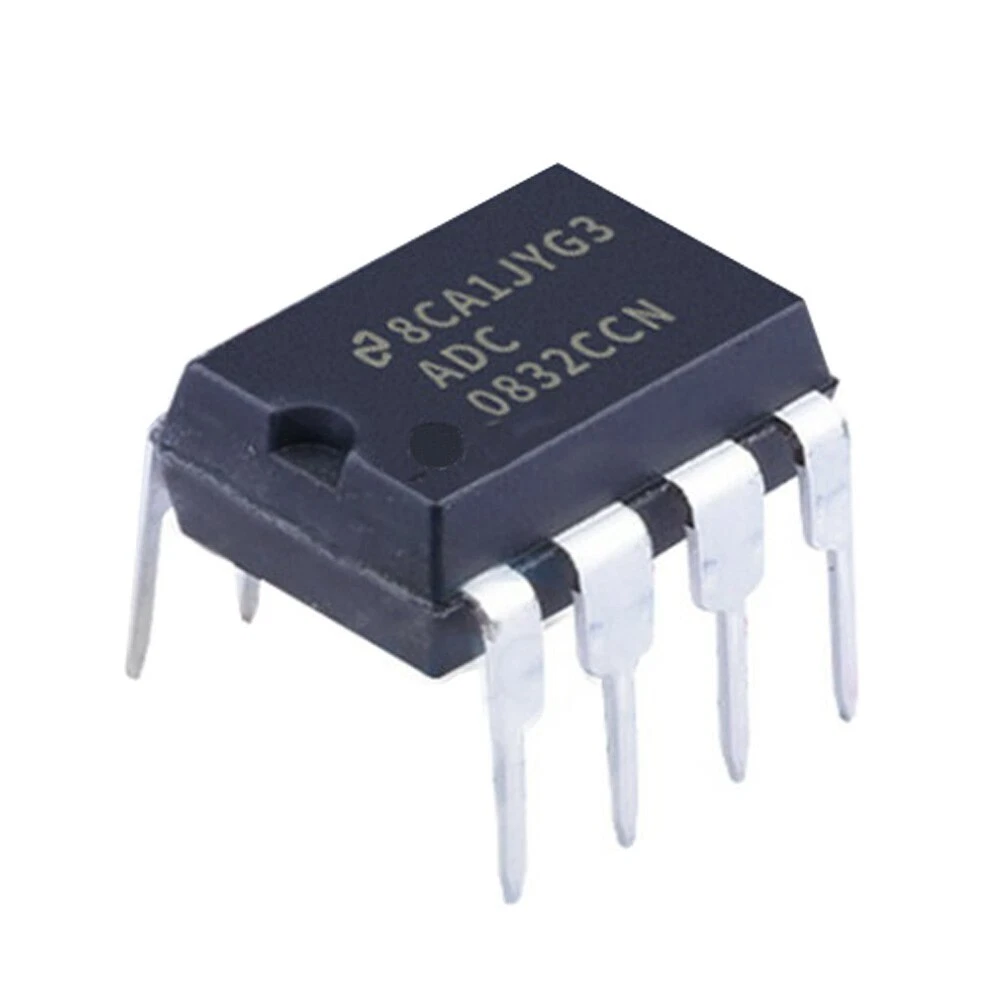

ADC0832CCN Chip 8-bit Analog-to-Digital Converter IC DIP-8

ADC0832CCN Chip 8-bit Analog-to-Digital Converter IC DIP-8 serves as a highly versatile and cost-effective solution for interfacing analog sensors with digital microcontrollers. This successive approximation register (SAR) converter features two input channels that you can configure for either single-ended or differential operation. Furthermore, the device utilizes a serial I/O interface, which significantly reduces the number of pins required for communication with a host processor. By operating on a single 5 V power supply, the ADC0832CCN simplifies circuit design while maintaining high accuracy for general-purpose data acquisition. Consequently, this IC remains a favorite among hobbyists and engineers for projects requiring precise voltage measurement in a compact DIP-8 footprint. Therefore, you should consider this chip for any application where space and simplicity are paramount.

Key Features:

• Two-Channel Multiplexer: The internal multiplexer allows software selection between two independent channels or a single differential pair.
• Serial I/O Interface: It communicates via a synchronous serial link, which minimizes the GPIO requirements on your microcontroller.
• No Zero or Full-Scale Adjust: The factory calibration eliminates the need for external potentiometers to adjust the conversion range.
• TTL Compatible: All inputs and outputs interface seamlessly with standard 5 V TTL and CMOS logic levels.
• Low Power Consumption: The device draws minimal current during operation, making it suitable for battery-powered instruments.

Technical Specifications:

• Resolution: 8-Bit
• Conversion Time: ≈ 32 μs
• Supply Voltage (V_CC): 4.5 V to 6.3 V (Typically 5 V)
• Total Unadjusted Error: ±1/2 LSB or ±1 LSB
• Sample Rate: Up to 31 kHz
• Input Voltage Range: 0 V to V_CC
• Clock Frequency: 10 kHz to 400 kHz

Mechanical Specifications:

• Package Type: DIP-8 (Dual In-line Package)
• Mounting Type: Through-Hole
• Lead Finish: Tin (Sn)
• Housing Material: Molded Plastic Epoxy

Dimensions:

• Body Length: ≈ 9.27 mm
• Body Width: ≈ 6.35 mm
• Pin Pitch: 2.54 mm
• Row Spacing: 7.62 mm

Pinout and Wiring:

• Pin 1 (CS): Chip Select; drive this pin low to initiate communication with the IC.
• Pin 2 (CH0): Analog Input Channel 0.
• Pin 3 (CH1): Analog Input Channel 1.
• Pin 4 (GND): System Ground connection.
• Pin 5 (DI): Data Input; use this to send configuration bits (Start bit, SGL/DIF, ODD/SIGN) to the ADC.
• Pin 6 (DO): Data Output; the 8-bit digital result shifts out through this pin.
• Pin 7 (CLK): Serial Clock; provides the timing for data shifting and internal conversion.
• Pin 8 (VCC/REF): Positive Power Supply and Reference Voltage input.

Datasheet Reference:

• Download TI ADC0832 Series Datasheet

Commonly Used in:

• 8051 Microcontroller Projects: Traditional embedded systems often use this IC for simple analog feedback loops.
• Arduino-Based Data Loggers: Educators use it to demonstrate serial ADC concepts on breadboards.
• Industrial Monitoring: However, it typically appears in legacy equipment for basic sensor reporting.

Applications:

• Temperature Sensing: Converting voltage from analog thermistors or LM35 sensors into digital data.
• Battery Voltage Monitoring: Tracking charge levels in portable electronics by scaling the input voltage.
• Potentiometer Interfacing: Reading the position of knobs or sliders for user input controls.
• Light Level Detection: Working with LDRs (Light Dependent Resistors) to trigger automated lighting.

Equivalent Models:

• MCP3002: A modern Microchip alternative that offers 10-bit resolution and SPI communication.
• ADC0831: A single-channel version of this chip, suitable if you only require one input.
• LTC1286: A pin-compatible 12-bit micropower ADC consequently used when higher precision is necessary.

Package Includes:

• 1 x ADC0832CCN 8-bit Analog-to-Digital Converter IC DIP-8
