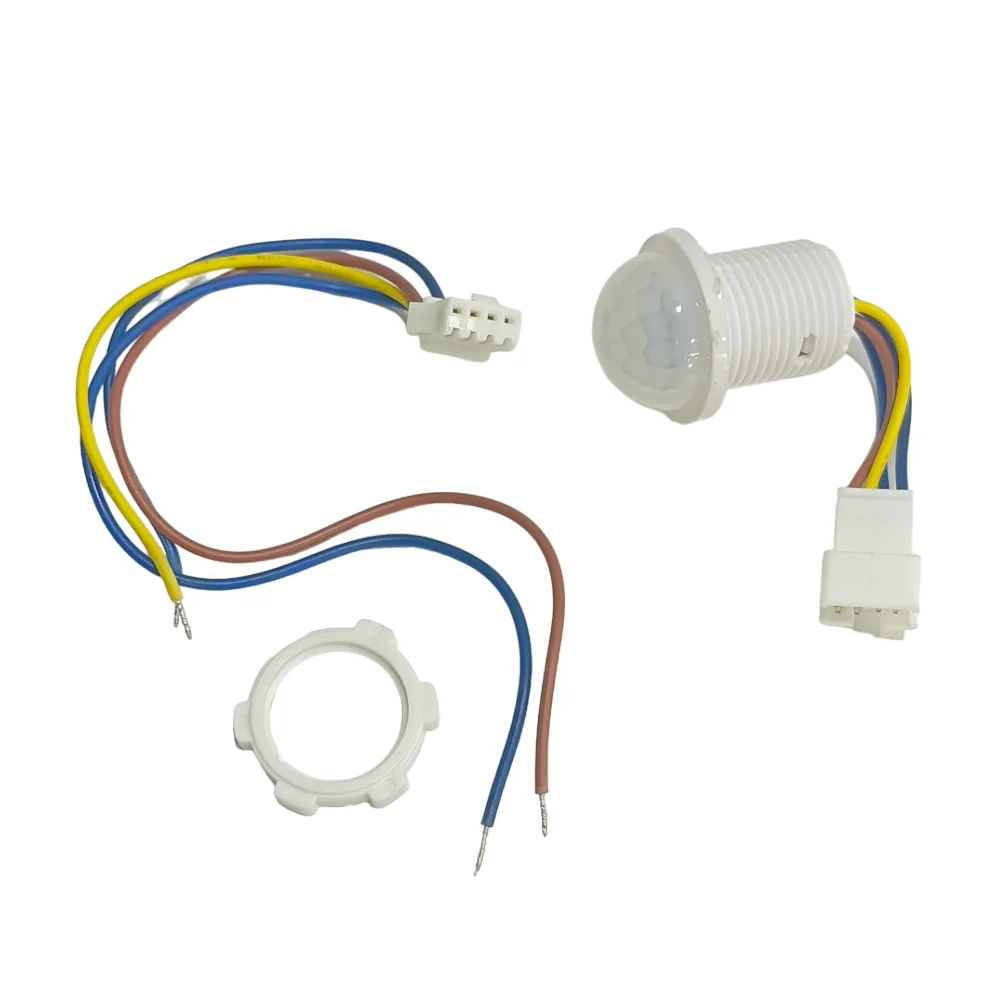

AC110-240V PIR Infrared Motion Sensor

AC110-240V PIR Infrared Motion Sensor is a mains-powered automatic detection module that switches lighting directly from the AC supply. Consequently, you need no separate DC adapter or external relay to control lamps. This PIR motion sensor detects infrared heat changes from moving people in its coverage area. Furthermore, it switches the connected lamp automatically using an internal switching function. Therefore, it is the standard choice for hallways, staircases, corridors, and porches where hands-free lighting is essential. Additionally, the wide AC110-240V input range suits both 110V and 240V regions, simplifying stocking and installation for shops and electricians alike.

Key Features of the PIR Motion Sensor:

• Direct Mains Operation: Connects straight to the AC supply and controls lamps without a transformer or DC adapter, reducing wiring and component count.
• Multi-Lamp Support: Provides soft, stable lighting with no flickering, working reliably with LED, fluorescent, and other energy-saving lighting loads.
• Preset Time Delay: Employs factory-configured delay off times, operating around an average of 45 seconds with optional intervals at 15 seconds, 45 seconds, or 5 minutes.
• Auto Sensitivity Setup: Fully auto-sensitive system that requires no extra variable resistance or manual potentiometer adjustments to tune the range.
• Day and Night Control: Automatic light-sensing mode that shifts across discrete lux thresholds, including low-light modes at 2 Lux or 25 Lux, up to 2000 Lux.

Technical Specifications:

• Operating Voltage: AC 110-240 V, 50/60 Hz
• Standby Power Consumption: Low energy draw for efficient power preservation
• Maximum Load: Output power rated for operations greater than or equal to 40 Watts (≥40W)
• Sensing Distance: Fixed range of 4 meters to 6 meters
• Detection Angle: 110 degrees
• Delay Off Time: Approximately 45 seconds (factory choices: 15s, 45s, 5min)
• Photosensing Setting: Supports settings at ≤2 Lux, ≤25 Lux, and 2000 Lux
• Output Type: Switch-level automatic load trigger
• Operating Frequency: 50/60 Hz standard AC grid

Mechanical Specifications:

• Enclosure Color: Premium white finish
• Mounting Type: Flush embedding or recess mounting using standard fittings
• Connection: Fly-leads for supply and load hookup (internal wire colors may vary by batch)
• Device Marking: Product SKU code and technical ratings cataloged under code
• Weight: 15 grams

Dimensions:

• Body Size: 45 x 40 x 25 mm (L x W x H)
• Fitting Diameter: 40 mm hole cut-out requirement
• Sensing Coverage: Optimized for standard ceiling or internal wall placements

Pinout and Wiring:

• Input Leads: Connect the incoming phase lines from the alternating current utility line.
• Output Leads: Link directly to the active live connection point of your lamp assembly.
• Neutral Path: Connected in line to complete the supply loop for internal electronics.
• Wiring Note: Switch off the mains breaker before wiring. Always install the sensor in series with the lamp load and never exceed the maximum wattage capacity to ensure smooth operation.

Datasheet Reference:

• Download AC 220V PIR Detector Infrared Motion Sensor Switch Specs Label

Commonly Used in:

• Automatic Lighting: Controlling corridor, stairwell, and bathroom lamps without manual switches.
• Security Lighting: Activating porch and entrance lights when someone approaches at night.
• Energy Saving: Turning off lights automatically in unoccupied rooms, reducing electricity bills.

Applications:

• Residential Hallways: Providing hands-free lighting for family members carrying objects.
• Commercial Corridors: Keeping common areas lit only when staff or visitors are present.
• Warehouses and Garages: Illuminating aisles briefly when vehicles or people move through. Browse more PIR Sensors here

Equivalent Models:

• HC-SR501 PIR Module: Low-voltage pyroelectric infrared board module for customizable automation.
• Automatic DC 12V-24V Switch: An 8A infrared motion module designed for low-voltage LED strips.

Package Includes:

• 1 x AC 220V PIR Detector Infrared Motion Sensor Switch With Adjustable Light Sensitivity and Time Delay
