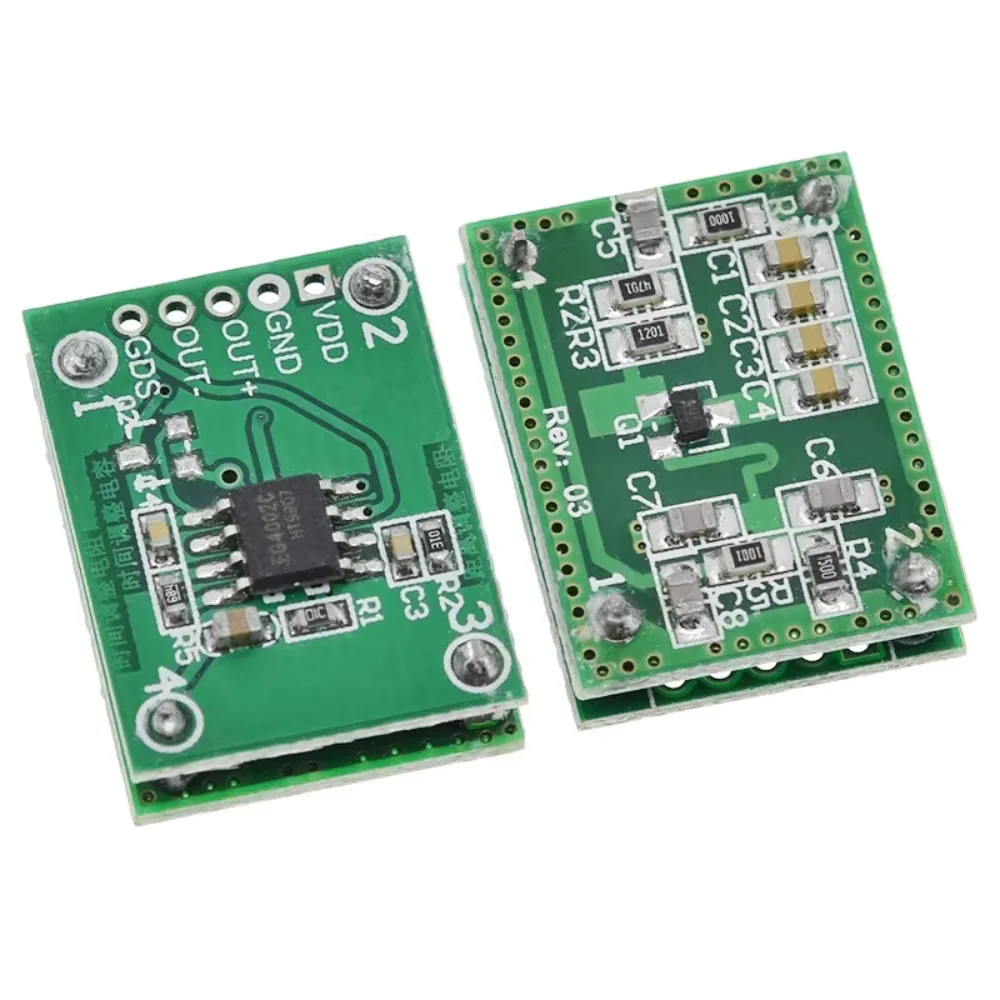

8-15m LV002 Doppler Radar Microwave Sensor Switch Module

8-15m LV002 Doppler Radar Microwave Sensor Switch Module delivers advanced motion detection capabilities for automated lighting and security installations. This compact microwave sensor board utilizes the Doppler radar principle to detect moving targets within a wide operational range. Therefore, it easily outperforms traditional infrared sensors by penetrating non-metallic materials and operating reliably across diverse environmental conditions. Furthermore, the flexible DC input voltage range ensures seamless compatibility with various power setups. Consequently, engineers and DIY hobbyists frequently choose this module to upgrade standard fixtures into intelligent, energy-saving systems.

Key Features:

• Long-Range Detection: Provides an extended sensing distance of 8 to 15 meters for expansive room coverage.
• Wide Detection Angle: Delivers a 180-degree hemispherical sensing pattern to capture movement from multiple directions.
• Penetrating Capability: Operates efficiently through glass, wood, and plastic enclosures without requiring a direct line of sight.
• Adjustable Delay Times: Features configurable trigger output durations of 40 seconds and 60 seconds to match specific application needs.
• Compact Form Factor: Utilizes a space-saving two-layer printed circuit board design optimized for tight installations.

Technical Specifications:

• Operating Voltage: DC 6V to 40V
• Rated Voltage: DC 12V
• Sensing Range: 8 m to 15 m
• Detection Angle: 180°
• Microwave Frequency: 2.6 GHz to 3.3 GHz ±100 MHz
• Transmitting Power: < 2 mW
• Working Delay: 40s and 60s default trigger output
• Maximum Load Power: Up to 1000W (requires an external relay for high-power loads)

Mechanical Specifications:

• Board Construction: Durable two-layer PCB architecture
• Mounting Styles: Wall installation, ceiling installation, and T8 tube internal integration
• Terminal Layout: Clearly marked soldering pads for power input and signal output

Dimensions:

• Board Length: 31 mm
• Board Width: 17 mm
• Weight: ≈ 0.01 g (module only)

Pinout and Wiring:

• VDD / VCC: Positive power supply input (DC 6V to 40V).
• GND: Common ground connection for the electrical circuit.
• OUT+ / OUT-: Trigger signal output lines for driving external switches or control boards.
• Warning: However, you must verify correct polarity during installation because reversing the power connections will permanently burn the onboard components.

Datasheet Reference:

• Download LV002 Doppler Radar Sensor Manual and Datasheet

Commonly Used in:

• T8 LED Tubes: Upgrading fluorescent and LED lighting fixtures with built-in motion sensing.
• Corridors and Hallways: Automating architectural lighting to turn on only when pedestrians approach.
• Security Systems: Serving as a primary movement detector for perimeter monitoring enclosures.

Applications:

• Energy-Saving Lighting: Reducing power consumption in commercial basements, stairwells, and underground parking garages.
• Automated Yard Security: Triggering outdoor floodlights or alarms upon detecting unauthorized entry.
• Smart Home Automation: Interfacing with microcontrollers to trigger customized home events upon human presence detection.

Equivalent Models:

• RC-WL-01: A similar microwave radar motion detector module operating at comparable frequencies.
• HW-M10: A compact Doppler radar sensor board designed for low-voltage embedded applications.
• HC-SR501: A traditional passive infrared (PIR) sensor, although it lacks the microwave penetration capabilities of the LV002.

Package Includes:

• 1 x 8-15m LV002 Doppler Radar Microwave Sensor Switch Module
