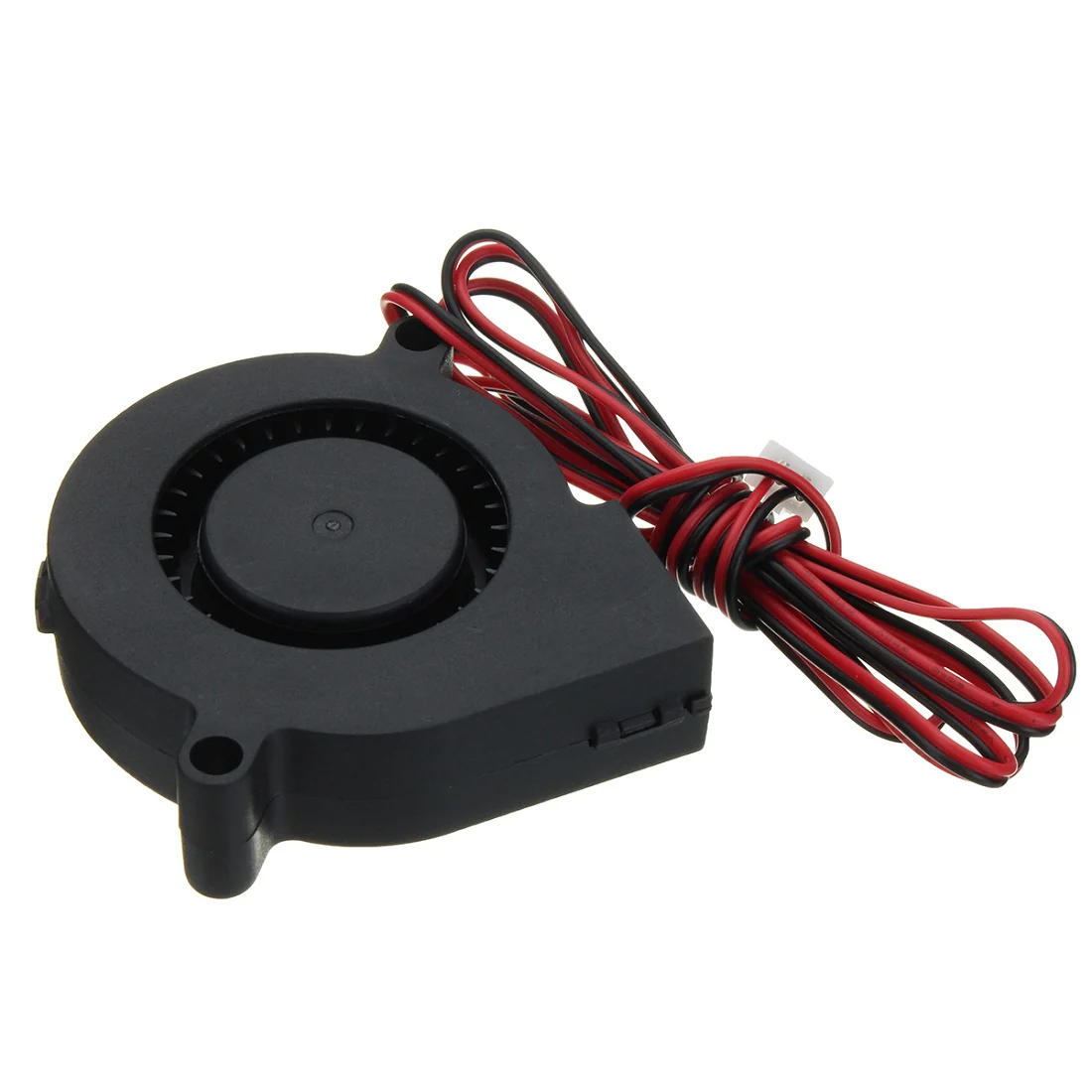

24V 5015 DC 3D Printer Vortex Turbo Cooling Fan

24V 5015 DC 3D Printer Vortex Turbo Cooling Fan provides high-pressure airflow specifically designed for part cooling and heat dissipation in high-performance 3D printing environments. This centrifugal blower, often referred to as a “turbo fan,” utilizes a unique internal blade geometry to accelerate air through a narrow exhaust nozzle. Consequently, it delivers a focused stream of air that hardens extruded filament almost instantly, which is vital for achieving clean bridges and sharp overhangs. Operating at 24V, this fan integrates seamlessly with modern controller boards like those found in Creality, Anycubic, and Voron printers. Furthermore, its sleeve-bearing or dual-ball bearing construction ensures a long service life even under continuous operation. Therefore, upgrading to a 5015 blower remains one of the most cost-effective ways to improve the surface finish and structural integrity of your 3D printed models.

Key Features:

• High Static Pressure: Unlike axial fans, this turbo blower creates high static pressure to push air through restrictive cooling ducts and fan shrouds efficiently.
• Low Noise Operation: Optimized blade design minimizes turbulence, allowing for a quieter workspace without sacrificing cooling performance.
• PWM Compatibility: You can easily control the fan speed via pulse width modulation (PWM) from your 3D printer’s motherboard to suit different materials like PLA or PETG.
• Brushless DC Motor: The brushless internal motor design reduces friction and electrical interference, providing a reliable and maintenance-free cooling solution.
• Compact Form Factor: The 50mm x 15mm profile fits perfectly into standard aftermarket toolheads such as the Voron Stealthburner or Hero Me systems.

Technical Specifications:

• Rated Voltage: 24 V DC
• Operating Voltage Range: 18 V to 26 V
• Rated Current: ≈ 0.1 A to 0.15 A (depending on specific model)
• Rated Power: ≈ 2.4 W to 3.6 W
• Fan Speed: 5000 to 6500 RPM (±10%)
• Airflow Volume: ≈ 4.5 CFM to 5.4 CFM
• Static Pressure: ≈ 0.8 in-H₂O
• Noise Level: ≤ 35 dBA

Mechanical Specifications:

• Bearing Type: High-Quality Sleeve Bearing (Long-Life)
• Blade Material: PBT Plastic (UL94V-0 Rated)
• Housing Material: Reinforced Thermoplastic
• Weight: ≈ 25 g to 30 g
• Lifespan: ≈ 30,000 to 50,000 hours at 25°C

Dimensions:

• Outer Diameter: 50 mm
• Total Thickness: 15 mm
• Air Outlet Size: ≈ 20 mm x 15 mm
• Mounting Hole Pitch: ≈ 58 mm (Diagonal distance between centers)
• Cable Length: ≈ 300 mm (Standard)

Pinout and Wiring:

• Red Wire (Positive): Connect to the 24V Fan or PWM port positive (+) terminal.
• Black Wire (Negative): Connect to the 24V Fan or PWM port negative (−) terminal.
• Polarity Warning: However, you must ensure correct polarity during installation, as reversing the wires may damage the internal brushless driver circuit.

Datasheet Reference:

• Download 5015 DC Blower Fan Datasheet

Commonly Used in:

• FDM 3D Printers: Acting as the primary component for part cooling shrouds to prevent drooping and stringing.
• Custom Toolheads: Integrating into open-source designs like the Petsfang, Bullseye, or Voron toolheads.
• Electronic Enclosures: Cooling stepper drivers and MOSFETs within control boxes where space is restricted.

Applications:

• Bridge Cooling: Rapidly cooling filament as it spans a gap to ensure the plastic remains horizontal.
• Overhang Management: Allowing for steeper angles without the need for support structures.
• Spot Cooling: Providing concentrated airflow for localized heat dissipation in small robotic projects.

Equivalent Models:

• Winsinn 5015 24V Blower: A popular retail equivalent known for high-speed performance in the 3D printing community.
• Sunon MagLev 5015: A premium alternative that uses magnetic levitation technology for even quieter operation.
• GDT 50mm Turbo Fan: A direct functional equivalent with similar RPM and airflow characteristics.

Package Includes:

• 1 x 24V 5015 DC 3D Printer Vortex Turbo Cooling Fan with 2-Pin Connector
