12V 4020 DC 3D Printer Vortex Turbo Cooling Fan

12V 4020 DC 3D Printer Vortex Turbo Cooling Fan is a high-performance centrifugal blower designed specifically to provide concentrated, high-pressure airflow for 3D printer hotends and part cooling. This robust 40x20mm fan utilizes a specialized “turbo” design to force air through a narrow nozzle, making it remarkably effective at cooling freshly extruded filament. Consequently, users experience significantly improved print quality and sharper overhangs even at higher printing speeds. Furthermore, its high-speed motor maintains consistent static pressure, which is essential for overcoming the resistance of custom fan ducts. Therefore, upgrading to this vortex cooling fan ensures that your 3D printer remains thermally stable during long-duration prints.

Key Features:

• High Static Pressure: The centrifugal blower design generates concentrated airflow, which allows the fan to push air through tight spaces and cooling ducts more effectively than axial fans.
• Low Noise Operation: Engineered with precision bearings, this fan delivers powerful cooling while maintaining a relatively low acoustic profile.
• Plug-and-Play Compatibility: It features a standard 2-pin connector that fits most 3D printer control boards, ensuring a straightforward installation process.
• Durable Construction: The housing consists of high-quality thermoplastic, which prevents warping or melting when the fan resides near the heated components of the printer.
• Efficient Heat Dissipation: Its unique vortex airflow pattern accelerates heat removal, preventing “heat creep” and nozzle clogs in the extruder assembly.

Technical Specifications:

• Rated Voltage: 12 V DC
• Operating Current: ≈ 0.10 A to 0.15 A (Typical)
• Rated Speed: ≈ 6500 ±10% RPM
• Airflow: ≈ 3.5 CFM
• Static Pressure: ≈ 0.40 in-H₂O
• Noise Level: ≈ 25 dBA to 30 dBA
• Bearing Type: Oil-impregnated Sleeve Bearing (or Ball Bearing variant)
• Operating Life: ≈ 30,000 to 50,000 hours at 25°C

Mechanical Specifications:

• Frame Material: PBT Plastic (UL94V-0 Rated)
• Blade Material: Reinforced Plastic
• Connector Type: XH2.54-2P (Standard 2-Pin)
• Wire Length: ≈ 20 cm to 30 cm

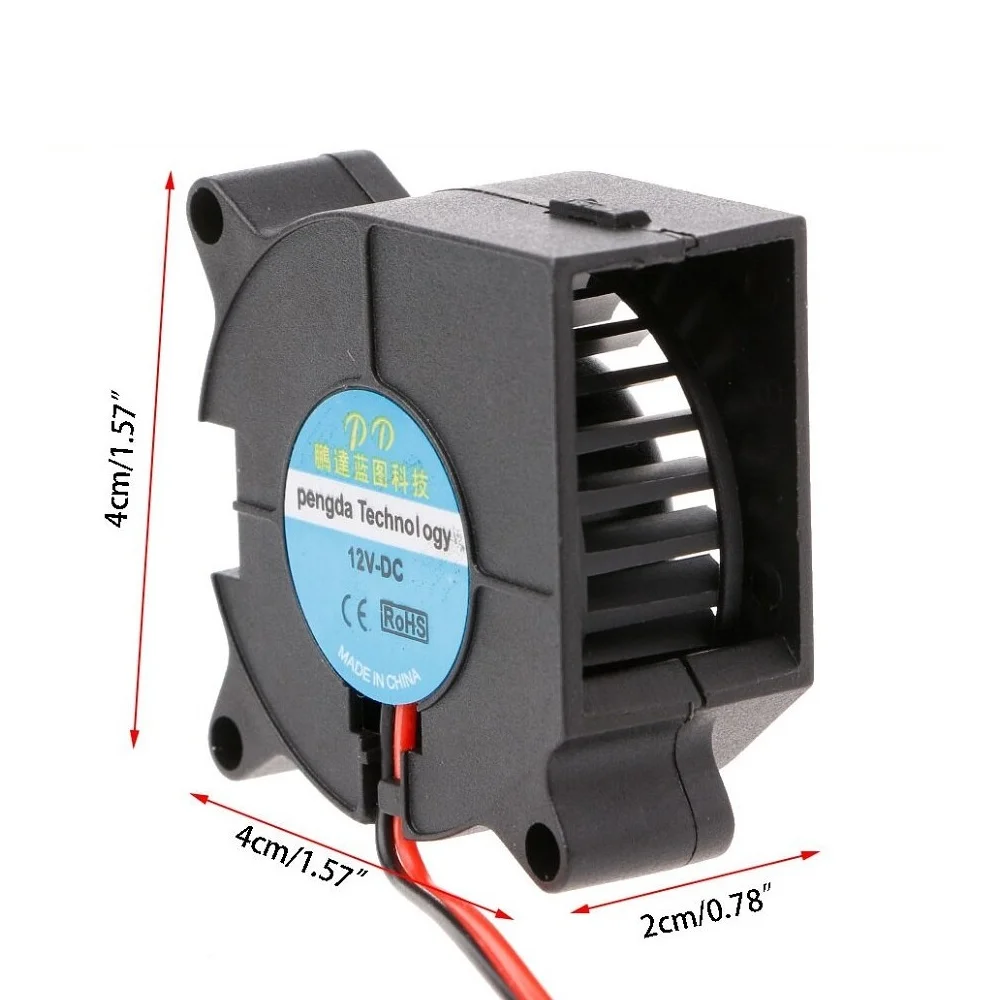

Dimensions:

• Frame Size: 40 mm x 40 mm
• Thickness: 20 mm
• Mounting Hole Diameter: ≈ 4.0 mm
• Air Outlet Size: ≈ 20 mm x 15 mm

Pinout and Wiring:

• Red Wire (Positive): Connect to the 12V DC positive output of the fan controller or power supply.
• Black Wire (Negative): Connect to the ground (GND) terminal or the PWM negative terminal for speed control.
• Wiring Note: However, always ensure the polarity matches your control board, as reversing the wires may damage the internal fan circuitry.

Datasheet Reference:

• Download 4020 DC Brushless Blower Fan Datasheet

Commonly Used in:

• 3D Printer Hotends: Specifically used on Ender 3, CR-10, and Prusa clones to cool the heatsink or the printed part.
• Small Project Enclosures: Ideal for ventilating compact electronics boxes where air must be directed precisely.
• DIY Humidifiers: Used in small ultrasonic mist makers to push water vapor out of a chamber.

Applications:

• Part Cooling: Directing air at the nozzle tip to solidify plastic instantly for better bridge performance.
• Heat Sink Ventilation: Removing heat from stepper motor drivers or MOSFETs on 3D printer mainboards.
• Laser Module Cooling: Maintaining safe operating temperatures for small diode laser engravers.

Equivalent Models:

• Winsinn 4020 12V Blower: A popular alternative often found in e-commerce markets with similar RPM ratings.
• GDSTIME 40x40x20mm Turbo Fan: A high-durability variant known for long-term industrial use.
• Snowfan YY4020 Series: A functional equivalent providing similar static pressure and airflow dimensions.

Package Includes:

• 1 x 12V 4020 DC 3D Printer Vortex Turbo Cooling Fan
