22.5W 5V 4.5A QC4.0 PD3.0 Dual USB Type C Micro USB 18650 PowerBank Module

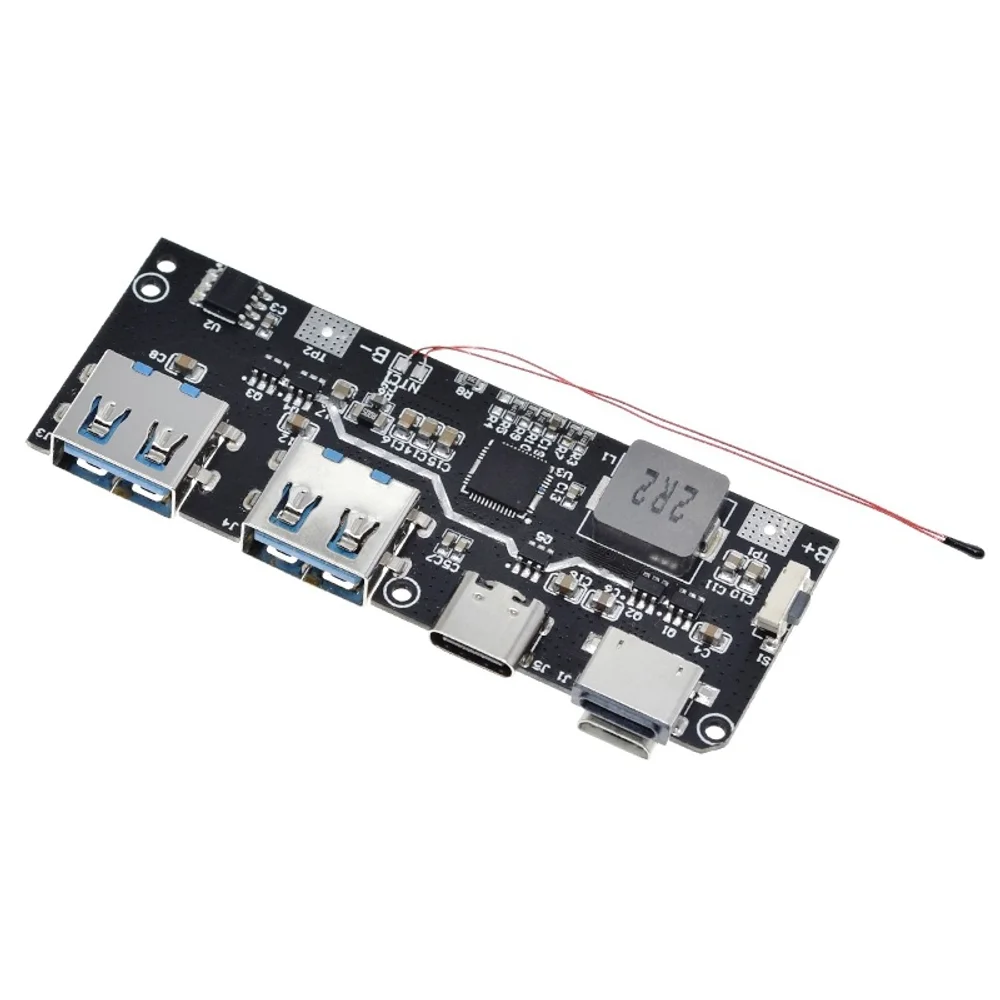

22.5W 5V 4.5A QC4.0 PD3.0 Dual USB Type C Micro USB 18650 PowerBank Module is an advanced, high-efficiency bidirectional fast charging circuit board engineered for custom lithium-ion portable power solutions. This controller integrates intelligent multi-protocol fast-charging technology that supports Quick Charge 4.0+, USB Power Delivery 3.0, Huawei SCP/FCP, and Samsung AFC protocols to achieve up to 22.5W output power. Consequently, it enables ultra-fast charging and discharging across a broad spectrum of modern smartphones, tablets, and embedded development systems. Furthermore, the board features five dedicated interface ports, including dual USB Type-A female sockets, a bidirectional USB Type-C port, a Micro USB port, and a Lightning input connector. Therefore, electronics hobbyists and engineers can design versatile, high-capacity 1S battery power banks with comprehensive hardware protection and clear digital status indication.

Key Features:

• High-Power Fast Charging: Delivers high-speed output up to 22.5W and 5V/4.5A, significantly reducing recharge times for connected mobile devices.
• Broad Protocol Support: Compatible with QC4.0+, QC3.0, PD3.0, PPS, AFC, FCP, SCP, PE2.0, and VOOC charging standards for universal interoperability.
• Five-Port Interface Architecture: Provides dual USB-A output ports, a bidirectional Type-C port, a Micro-USB input port, and a Lightning input port on a single circuit board.
• Onboard Digital LED Display: Indicates real-time battery percentage and fast-charge handshaking status with high precision.
• Integrated Protection Suite: Includes over-voltage, under-voltage, over-current, short-circuit, and over-temperature safety protections for battery safety.

Technical Specifications:

• Main Controller Chipset: SW6208 / IP5356 Highly Integrated Power Management SOC
• Supported Battery Chemistry: 3.7V / 4.2V / 4.35V / 4.4V Single-Cell (1S) Lithium-ion or Li-Po Batteries (Parallel arrays supported)
• Input Voltage Range: 5V/3A, 9V/2A, 12V/1.5A (via Type-C, Micro-USB, or Lightning)
• Output Voltage & Current: 5V/4.5A, 4.5V/5A, 5V/3A, 9V/2A, 12V/1.5A (Max 22.5W)
• Conversion Efficiency: Boost efficiency up to 95%, Synchronous buck charging efficiency up to 96%
• Static Quiescent Current: ≤ 100 μA
• Operating Temperature Range: -20°C to +85°C

Mechanical Specifications:

• PCB Material: High-TG FR-4 Multilayer Board with Heavy Copper Traces
• Connectors: 2 x USB Type-A (Female), 1 x Type-C (Female), 1 x Micro USB (Female), 1 x Lightning (Female)
• Display Screen Size: ≈ 27 mm x 17 mm Digital Numerical LED Segment Screen
• Control Switch: 1 x Tactile Wake / Status Push Button

Dimensions:

• Length: ≈ 72 mm
• Width: ≈ 27 mm
• Height / Thickness: ≈ 6 mm (Board without connectors ≈ 6 mm, Total height with USB sockets ≈ 11 mm)
• Weight: ≈ 12 g

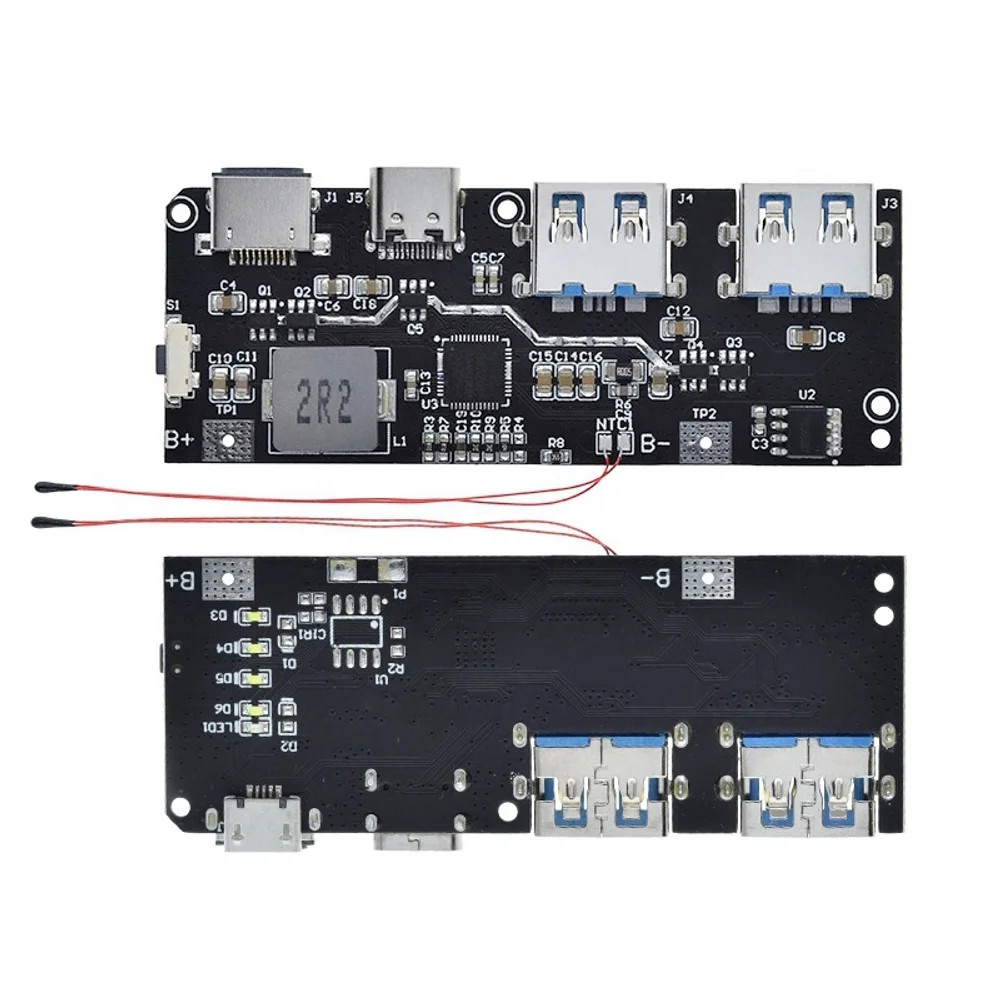

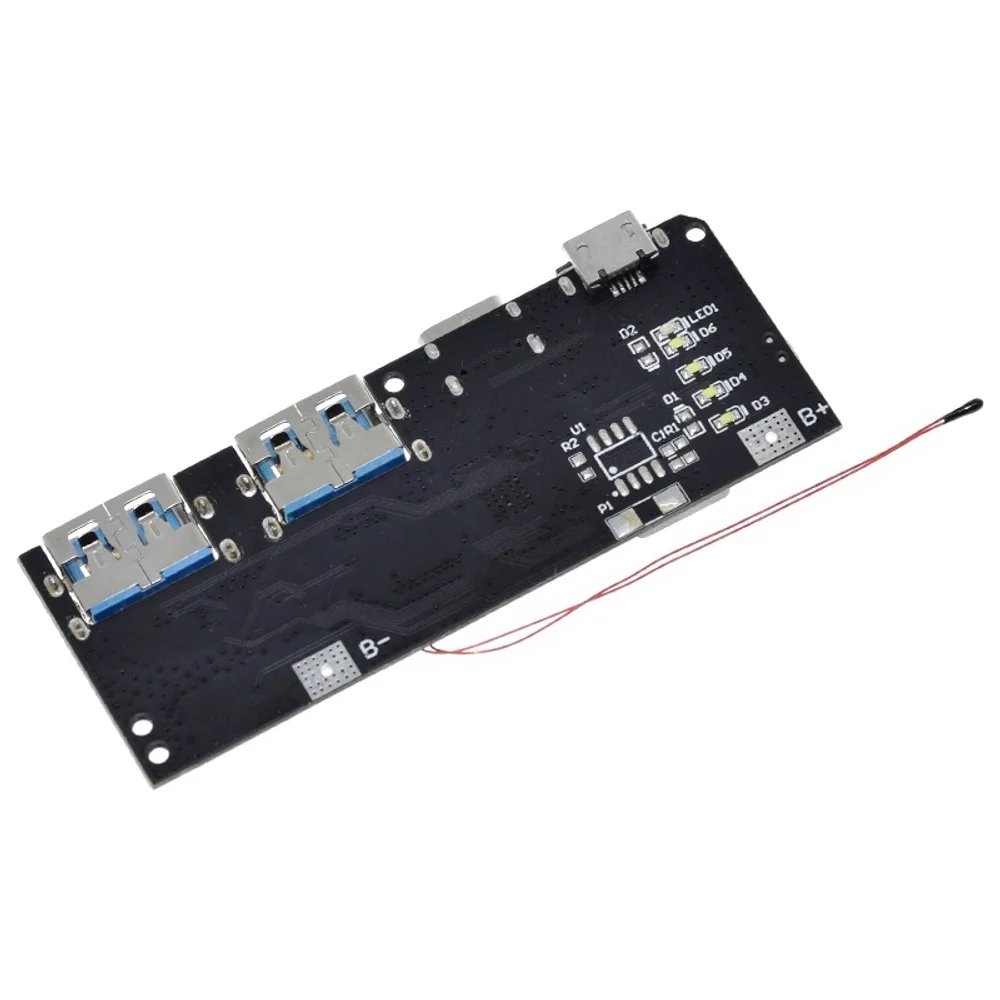

Pinout and Wiring:

• B+ (BAT+): Solder pad for the positive terminal of the 3.7V / 4.2V lithium-ion battery pack.
• B- (BAT-): Solder pad for the negative terminal of the 3.7V / 4.2V lithium-ion battery pack.
• NTC: Solder pads for an optional 10kΩ temperature-sensing thermistor to monitor battery pack thermal conditions.
• Note: However, connecting batteries in series (such as 2S, 3S, or 4S) will destroy the module, so you must wire multiple 18650 or 21700 cells strictly in parallel.

Datasheet Reference:

• Download ISMARTWARE SW6208 Power Management IC Datasheet

Commonly Used in:

• DIY Portable Power Banks: Constructing custom-capacity 18650, 21700, or flat pouch polymer battery storage units.
• Field Testing Stations: Powering portable test instruments, oscilloscopes, and logic analyzers with multi-voltage quick charge capabilities.
• Uninterruptible Power Supplies (UPS): Providing clean 5V/9V/12V backup power to microcontrollers, routers, and edge AI compute sticks.

Applications:

• Mobile Fast Charging: Rapidly refueling smartphones, tablets, wireless headphones, and handheld gaming consoles.
• Single Board Computer Power Delivery: Delivering continuous high-current 5V/3A or 9V PD power to Raspberry Pi 4/5 development boards.
• Outdoor & Emergency Power: Combining with solar charge controllers to deliver off-grid USB power during field expeditions.

Equivalent Models:

• IP5356 Power Bank Module: A fully compatible Injoinic-based 22.5W bidirectional multi-protocol charging solution.
• IP5389 High-Power Module: A higher-rated multi-cell module supporting up to 65W/100W PD charging for laptop applications.
• SW6106 Quick Charge Module: An 18W bidirectional fast-charge board, although it provides lower peak wattage than the 22.5W variant.

Package Includes:

• 1 x 22.5W 5V 4.5A QC4.0 PD3.0 Dual USB Type C Micro USB 18650 PowerBank Module
