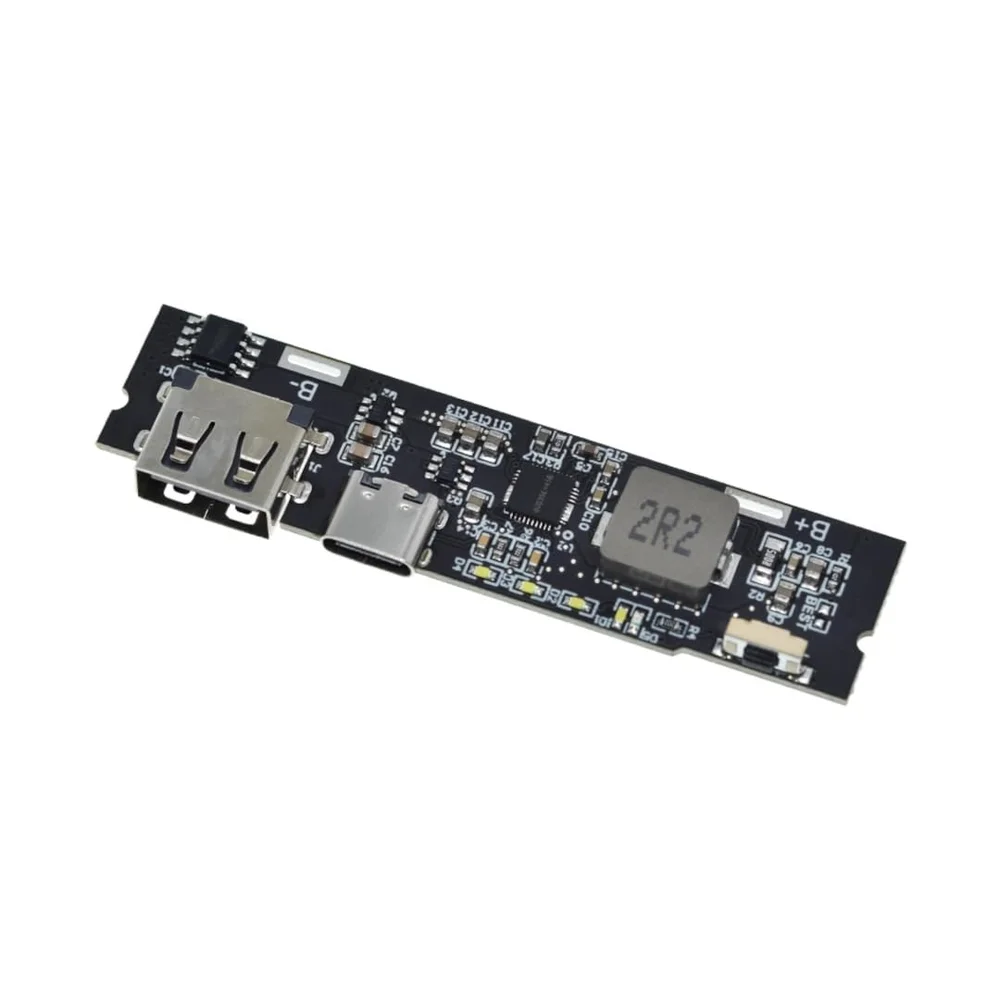

18W Type-C USB SW6106PD Fast Charge Mobile Power Bank Charging Module

Dual USB 18W Type-C USB SW6106PD Fast Charge Mobile Power Bank Charging ModuleThis high-performance Dual USB 18W Type-C USB SW6106PD Fast Charge Mobile Power Bank Charging Module provides an advanced, integrated solution for constructing high-efficiency portable power banks. Furthermore, the module features the SW6106 power management IC, which supports bi-directional Power Delivery (PD) and multiple fast-charging protocols, consequently delivering up to 18W of charging power for compatible mobile devices. Therefore, it facilitates rapid charging while maintaining a high conversion efficiency that minimizes battery heating. However, users must ensure that the connected lithium-ion battery pack is properly rated for the high-current demands of fast-charging operations. Specifically, the inclusion of a USB Type-C port allows for both charging the internal battery and powering external devices through a single, versatile interface. Moreover, the onboard LED indicators provide real-time status updates regarding battery level and charging modes. Ultimately, this module is an ideal platform for engineers and enthusiasts designing modern, professional-grade portable power solutions.

Key Features

• Advanced SW6106 Controller: Utilizes a high-integration IC that manages charging, discharging, and protocol negotiation seamlessly.
• 18W Fast Charging: Supports multiple fast-charge standards to significantly reduce downtime for mobile devices.
• Bi-Directional Type-C: Features a versatile USB Type-C port that handles both power input and high-speed output.
• High Conversion Efficiency: Optimized circuit design ensures minimal energy loss, consequently maximizing the usable capacity of your battery pack.
• Comprehensive Protections: Includes built-in safeguards against over-voltage, over-current, short circuits, and thermal runaway.
• Integrated LED Array: Displays accurate battery status through a dedicated multi-LED interface.

Technical Specifications

• Power Management IC: SW6106.
• Maximum Output Power: 18W (Supports various PD and QC profiles).
• Input Voltage/Current: 5V/3A, 9V/2A, 12V/1.5A.
• Output Voltage/Current: 5V/3A, 9V/2A, 12V/1.5A.
• Conversion Efficiency: ≥ 92% at typical load conditions.
• Switching Frequency: High-frequency operation for compact inductor sizing.
• Battery Chemistry: 3.7V / 4.2V / 4.35V Lithium-ion/Polymer.

Mechanical Specifications

• PCB Material: Multi-layer FR4 with heavy copper for current handling.
• Connector Interface: 1 x USB Type-A, 1 x USB Type-C.
• Mounting: Integrated PCB cutouts for secure chassis installation.
• Thermal Management: Enhanced copper pours on the PCB assist in passive cooling of the controller.

Dimensions

• Overall Board Size: ≈ 65.0 mm × 25.0 mm (L x W).
• Component Height: ≈ 8.5 mm.

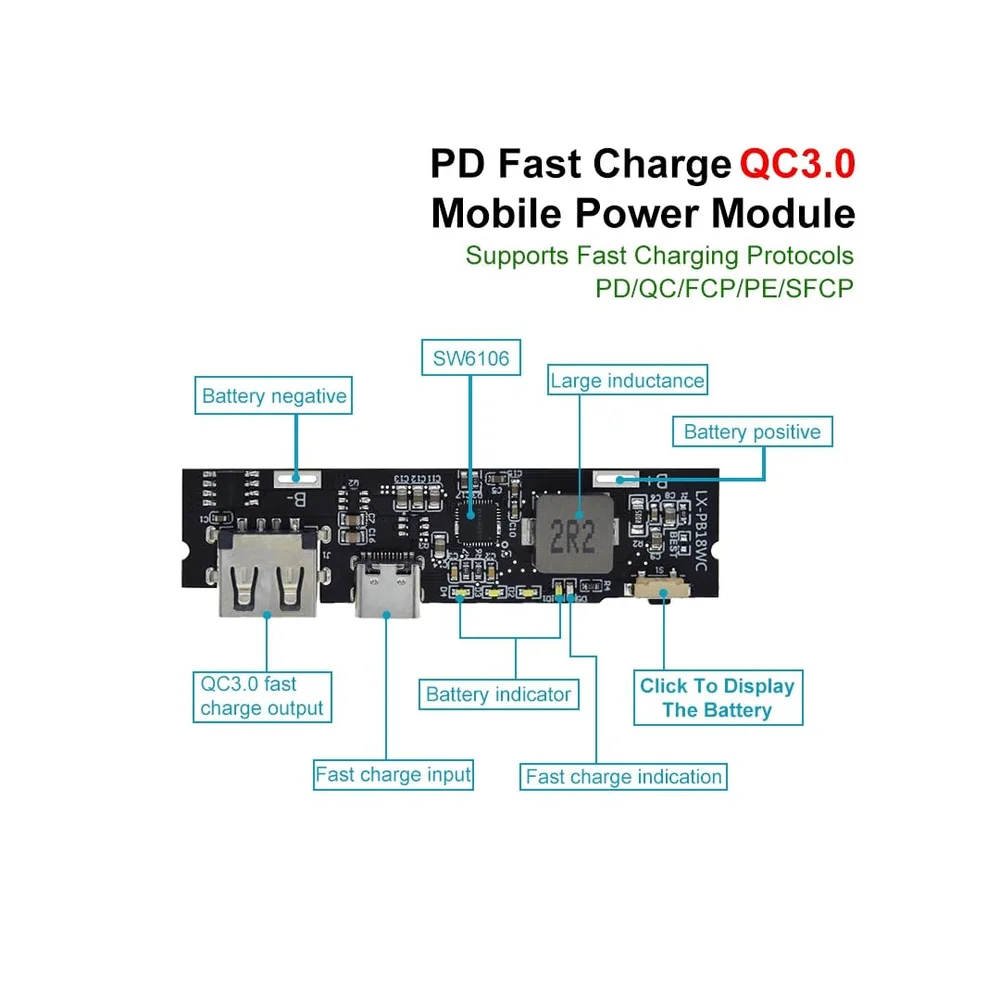

Pinout and Wiring

• B+ / B-: Main battery connection points (Must ensure correct polarity).
• NTC: Thermistor input for battery temperature monitoring (Critical for fast-charge safety).
• GND: Common system ground for secondary sensors or indicators.
• USB Ports: Pre-soldered connectors for Type-A and Type-C cables.

Datasheet Reference: Download Datasheet

• • SW6106 Multi-Protocol Power Bank SoC Datasheet

Commonly Used in

• Professional Grade Power Banks
• USB-C Laptop Power Delivery Modules
• Portable High-Speed Charging Stations
• DIY Multi-Cell Power Projects
• Mobile Electronic Test Gear

Applications

• Engineers utilize this module to provide high-speed charging in portable field equipment.
• It serves as the core power system for custom-built power banks, ensuring universal compatibility with modern smartphones.
• Consequently, it acts as a stable power source for high-drain digital projects and embedded computing modules.
• Furthermore, designers integrate it into IoT gateway devices that require battery backup with fast replenishment capabilities.
• Ultimately, it is the primary choice for powering PD-capable peripherals from a decentralized lithium-ion source.

Equivalent Models

• IP5328P Module: A popular alternative supporting bidirectional fast charging.
• SW6206 Module: A higher-power variant capable of 22.5W output.
• TP5100 Module: A simpler, single-cell charging module without PD fast-charge features.

Package Includes

• 1 x Dual USB 18W Type-C USB SW6106PD Fast Charge Mobile Power Bank Charging Module
