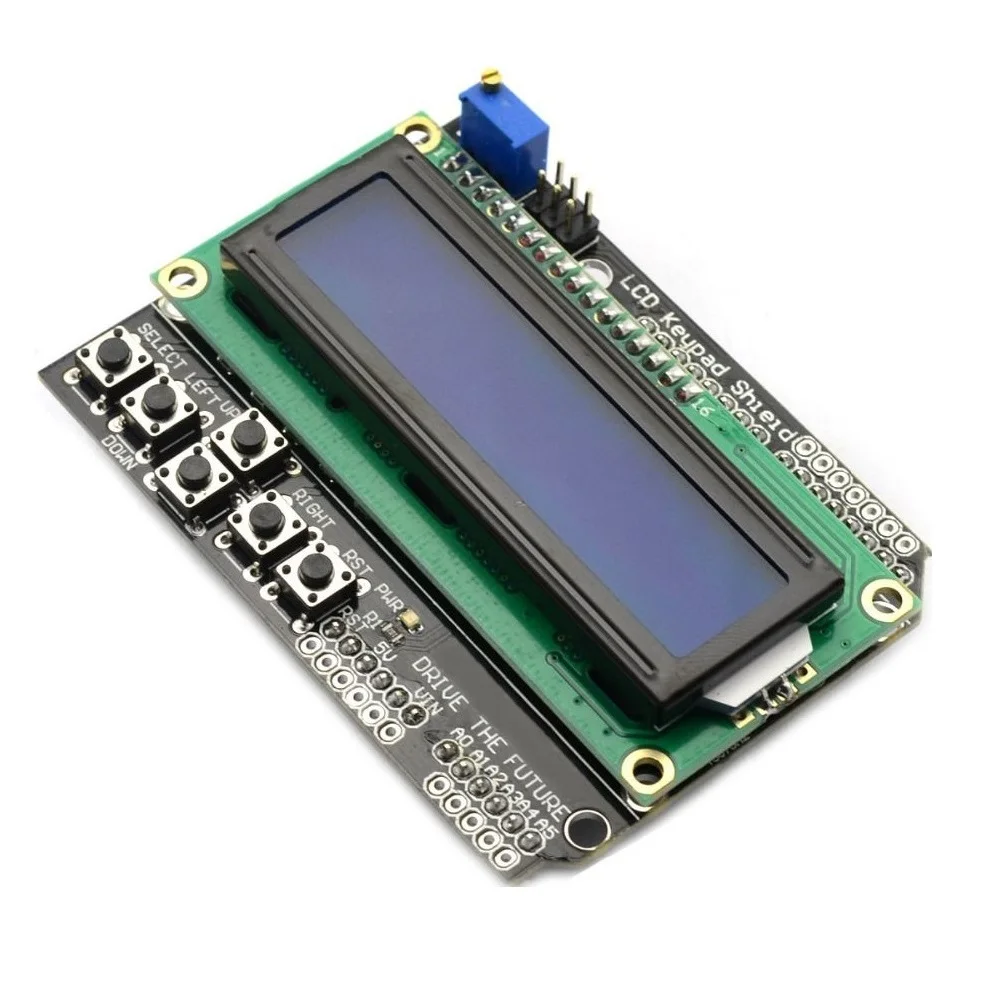

1602 LCD Keypad Shield With Backlight for Arduino

1602 LCD Keypad Shield With Backlight for Arduino provides a versatile and user-friendly human-machine interface (HMI) by combining a classic 16×2 character display with a five-button tactile keypad on a single plug-and-play board. This shield simplifies the development process for Arduino projects because it eliminates the messy wiring typically associated with connecting individual screens and buttons. Furthermore, the integrated blue backlight and adjustable contrast ensure that users can clearly read data in various lighting conditions. Consequently, developers can focus on writing code for their applications rather than troubleshooting hardware connections. By utilizing a single analog pin to read all five buttons, this shield preserves your Arduino’s valuable digital I/O pins for other sensors and actuators. Therefore, you should consider this shield an essential tool for creating interactive menus, real-time data loggers, and standalone controllers.

Key Features:

• Integrated 16×2 Character LCD: Displays up to 32 characters across two rows with high-quality white text on a crisp blue background.
• Five-Button Tactile Keypad: Features Up, Down, Left, Right, and Select buttons that connect to a single analog input (A0) via a resistor ladder.
• Adjustable Contrast: Includes an on-board potentiometer that allows users to fine-tune the display visibility for optimal viewing angles.
• Arduino Shield Form Factor: Plugs directly into Arduino Uno, Mega, and Leonardo boards, ensuring a secure mechanical and electrical connection.
• Backlight Control: Offers a bright LED backlight that users can enable or disable via software to manage power consumption.

Technical Specifications:

• Operating Voltage: 5.0 V_DC
• Display Format: 16 Characters × 2 Lines
• Communication Interface: 4-Bit Parallel (Compatible with LiquidCrystal library)
• Backlight Type: Blue LED (White characters)
• Keypad Reading Method: Analog Resistor Divider (Connected to A0)
• Typical Current Draw: ≈ 25 mA (Backlight off), ≈ 50-60 mA (Backlight on)
• Operating Temperature: −10°C to +60°C

Mechanical Specifications:

• Mounting Style: Direct plug-in shield (Stackable pins)
• Button Type: 6mm Tactile momentary switches
• Reset Button: Includes a dedicated system reset button to restart the host Arduino board.
• PCB Finish: High-quality blue solder mask with tinned pads.

Dimensions:

• Length: ≈ 80.0 mm
• Width: ≈ 58.0 mm
• Height: ≈ 13.0 mm (Excluding pins)
• Weight: ≈ 55 g

Pinout and Wiring:

• Analog Pin A0: Monitors all five keypad buttons; however, only one button should be pressed at a time for accurate reading.
• Digital Pin 4: DB4 (Data Bit 4) for the LCD interface.
• Digital Pin 5: DB5 (Data Bit 5) for the LCD interface.
• Digital Pin 6: DB6 (Data Bit 6) for the LCD interface.
• Digital Pin 7: DB7 (Data Bit 7) for the LCD interface.
• Digital Pin 8: Register Select (RS) pin.
• Digital Pin 9: Enable (E) pin.
• Digital Pin 10: Backlight control pin (PWM compatible).

Datasheet Reference:

• Download 1602 LCD Keypad Shield Datasheet

Commonly Used in:

• Development Kits: Used widely in educational Arduino starter kits to teach user input and display output.
• Standalone Instrumentation: Provides a compact interface for multimeters, frequency counters, and pH meters.
• Smart Home Controllers: Serves as a local control panel for lighting, heating, and security systems.

Applications:

• User Menu Navigation: Creates interactive menus that allow users to change settings without a computer.
• Data Monitoring: Displays real-time sensor values such as temperature, humidity, or pressure.
• Project Debugging: Acts as a portable serial monitor to display error codes or variables in the field.
• Password Input Systems: Facilitates basic security entry using the keypad buttons.

Equivalent Models:

• DFRobot DFR0009: The original design standard for this keypad shield, featuring identical pin mapping.
• Adafruit 772 (I2C Version): A similar 16×2 shield; however, it uses the I2C bus instead of parallel pins to save more I/O.
• Generic 1602 Character Shield: Often found under various brands but maintaining the same resistor ladder values for the buttons.

Package Includes:

• 1 x 1602 LCD Keypad Shield With Backlight for Arduino
