12V Bluetooth MP3 Audio Decoder Supports USB MicroSD With Remote Control

12V Bluetooth MP3 Audio Decoder Supports USB MicroSD With Remote ControlThis versatile 12V Bluetooth MP3 Audio Decoder board is designed to modernize legacy audio systems by adding wireless streaming, USB playback, and FM radio functionality. Furthermore, it supports both USB flash drives and MicroSD (TF) cards for direct local playback of digital music files. Consequently, users can easily enjoy their favorite tracks without needing a constant smartphone connection. Therefore, it is an ideal choice for upgrading vintage car stereos, active speakers, or DIY boomboxes. However, users must ensure a stable 12V DC power supply to prevent operational resets or audio distortion. Specifically, the included infrared remote control allows for effortless track selection, volume adjustment, and mode switching from a distance. Moreover, the integrated LED display and onboard buttons provide straightforward manual control over all media functions.

Key Features

• Wireless Bluetooth Connectivity: Enables seamless audio streaming from smartphones, tablets, and other Bluetooth-enabled devices.
• Multi-Format Media Playback: Supports USB flash drives and MicroSD (TF) cards for direct MP3, WAV, and WMA music files.
• FM Radio Tuner: Built-in FM digital radio receiver allowing users to scan and save local broadcast stations.
• Auxiliary Input (AUX): Features a 3.5mm line-in jack for connecting external wired audio sources.
• Infrared Remote Control: Includes a dedicated multi-function remote for convenient wireless operation.
• LED Status Display: Clear digital screen displays track time, frequency, or operational mode.

Technical Specifications

• Operating Voltage: 12V DC (Typically 5V to 12V compatible depending on internal regulator configuration).
• Supported Audio Formats: MP3, WMA, WAV.
• FM Frequency Range: 87.5 MHz to 108.0 MHz.
• Bluetooth Version: 5.0 (Standard low-latency audio profile).
• Output: Line-level pre-amp output (Requires an external amplifier board to drive speakers directly).

Mechanical Specifications

• Panel Material: Durable black ABS plastic bezel with integrated mounting screw holes.
• PCB Structure: Double-sided green PCB with surface-mount components.
• Interface Ports: USB-A port, MicroSD slot, 3.5mm AUX jack, and JST power/signal wiring harnesses.

Dimensions

• Faceplate Length: ≈ 92.0 mm.
• Faceplate Height: ≈ 35.0 mm.
• Mounting Depth: ≈ 30.0 mm.

Pinout and Wiring

• 12V / VCC (Red Wire): Connect to the positive 12V DC power supply.
• GND (Black Wire): Connect to the common system ground.
• L-OUT / R-OUT / GND (White Harness): Left channel, right channel, and ground audio output lines leading to an external amplifier.
• ANT (FM Antenna): Dedicated wire pad for soldering an external FM radio antenna wire.

Datasheet Reference: Download Datasheet

• • Bluetooth MP3 Audio Decoder Board User Guide

Commonly Used in

• Vintage Car Stereo Upgrades
• DIY Bluetooth Boomboxes and Speakers
• Home Audio Receiver Modifications
• Portable Public Address (PA) Systems
• Custom Arcade Machine Sound Modules

Applications

• Hobbyists integrate this module into custom speaker builds to add modern wireless connectivity.
• It serves as an affordable audio retrofit solution for older vehicles lacking auxiliary or Bluetooth inputs.
• Consequently, it enables standalone music playback in remote locations using a simple USB drive or TF card.
• Furthermore, designers use the FM tuner feature for local radio monitoring equipment.
• Ultimately, it provides a complete media center interface requiring minimal external hardware.

Equivalent Models

• JQ-D099BT MP3 Decoder Board: A similar vertical-screen variant with Bluetooth and FM support.
• KCX_BT002 Bluetooth Audio Receiver: A bare-board alternative focused strictly on Bluetooth audio streaming.
• JH-MCU Bluetooth MP3 Module: Another standard panel-mount audio decoder board.

Package Includes

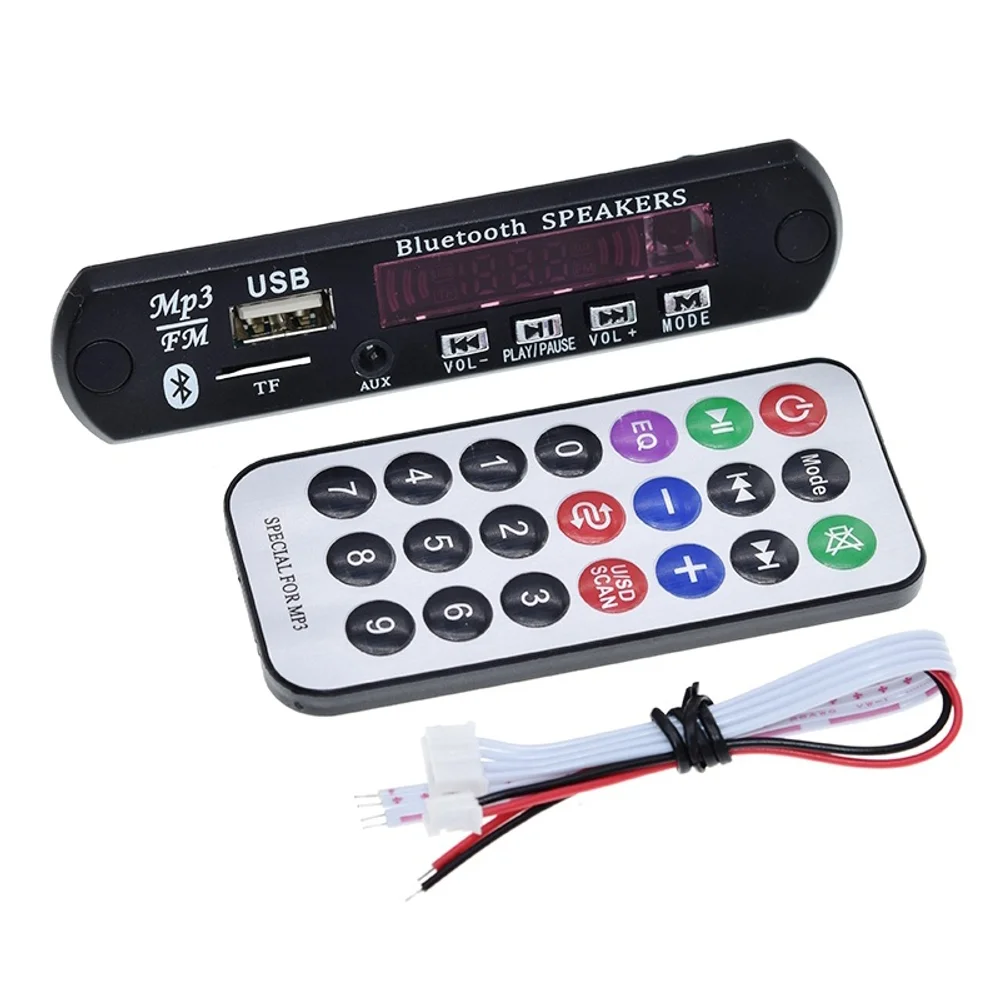

• 1 x 12V Bluetooth MP3 Audio Decoder Panel
• 1 x Infrared Remote Control (Without Battery)
• 1 x 2P Power Supply Wiring Harness
• 1 x 3P Audio Output Wiring Harness
