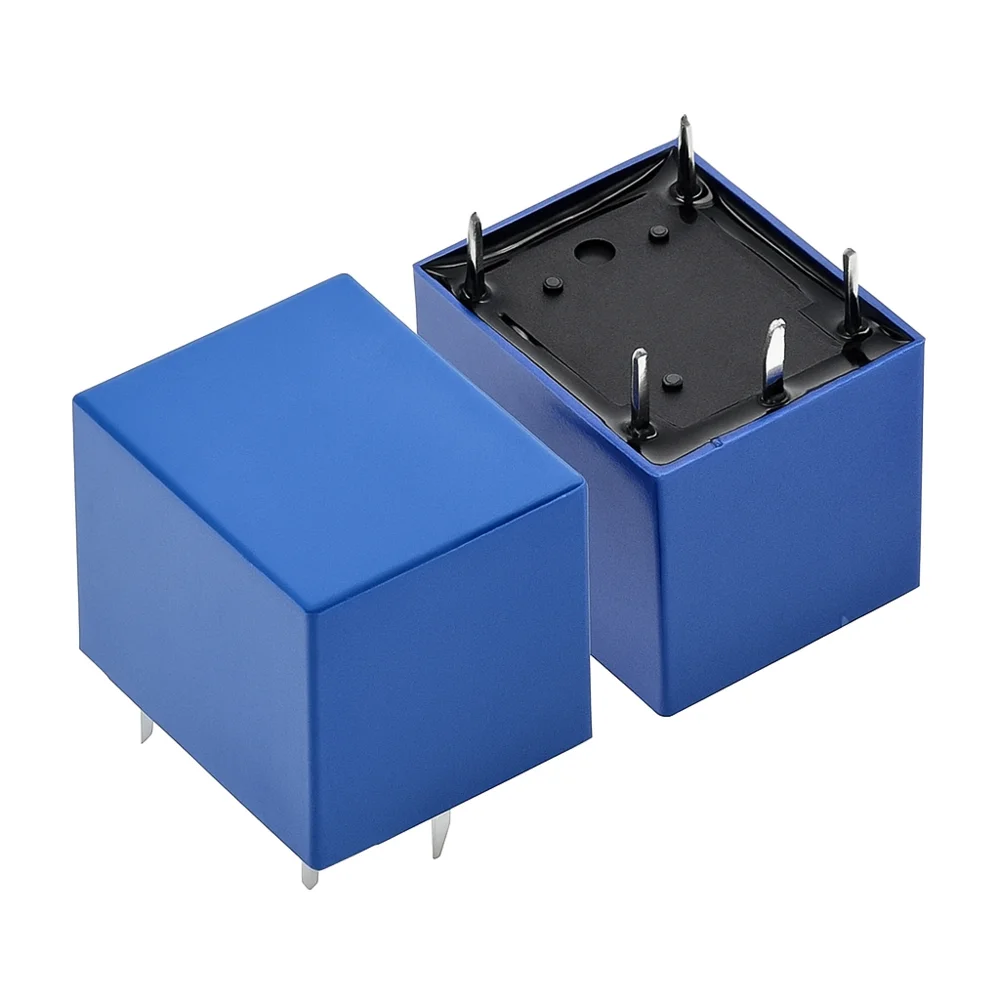

12V DC SPDT Sugar Cube PCB Relay 7A 5-Pin

₹12.00

In stock ?

In stock

SKU: IFT00052 Category: Tag: Brand: ,

12V DC SPDT Sugar Cube PCB Relay 7A 5-Pin is a miniature PCB-mount SPDT power relay in the standard “sugar cube” T73 package. Its 12V DC coil switches a single changeover contact rated 10A at 250V AC, making it the building block of most hobby relay modules and small control boards.

Key Features:
  • Standard T73 Footprint: 5-pin through-hole layout matches common relay modules and PCBs.
  • SPDT Changeover Contact: Provides normally open and normally closed contacts from one common.
  • High Contact Rating: Switches 10A at 250V AC or 10A at 30V DC.
  • Sealed Plastic Case: Flux-tight housing protects the contacts during wave soldering.
  • 12V DC Coil: Designed for direct operation from a 12V supply via a driver transistor.
Technical Specifications:
  • Coil Voltage: 12V DC
  • Coil Resistance: 400 Ω
  • Contact Form: 1 Form C (SPDT)
  • Contact Rating: 10A 250V AC / 10A 30V DC
  • Operate Time: ≤ 10 ms
  • Release Time: ≤ 5 ms
  • Insulation Resistance: ≥ 100 MΩ at 500V DC
  • Mechanical Life: 10,000,000 operations
  • Operating Temperature: -25°C to +70°C
Mechanical Specifications:
  • Package: T73 sealed plastic case
  • Terminals: 5 × PCB pins
  • Weight: Approx. 9 g
Dimensions:
  • Length: 19.0 mm
  • Width: 15.5 mm
  • Height: 15.0 mm
Pinout and Wiring:
  • Coil (2 pins): 12V DC coil; fit a flyback diode across these pins
  • COM: Common contact
  • NO: Normally open contact
  • NC: Normally closed contact
Datasheet Reference:
  • Datasheet Reference: Songle SRD series (SRD-xxVDC-SL-C) relay datasheet.
Commonly Used in:
  • Relay modules and custom control PCBs
  • Appliance and lighting control boards
  • Automotive and solar accessory switching
  • Educational electronics kits
Applications:
  • Microcontroller-driven mains switching (with transistor driver)
  • Load changeover between two circuits
  • Alarm and signalling outputs
  • Repairing failed relays on existing modules
Equivalent Models:
  • Songle SRD Series
  • Hongfa HF3FA
  • Omron G5LE
Package Includes:
  • 1 × 12V DC SPDT Sugar Cube PCB Relay 7A 5-Pin
Weight 10 g
Dimensions 18 × 15 × 15 mm
INPUT VOLTAGE

12v
