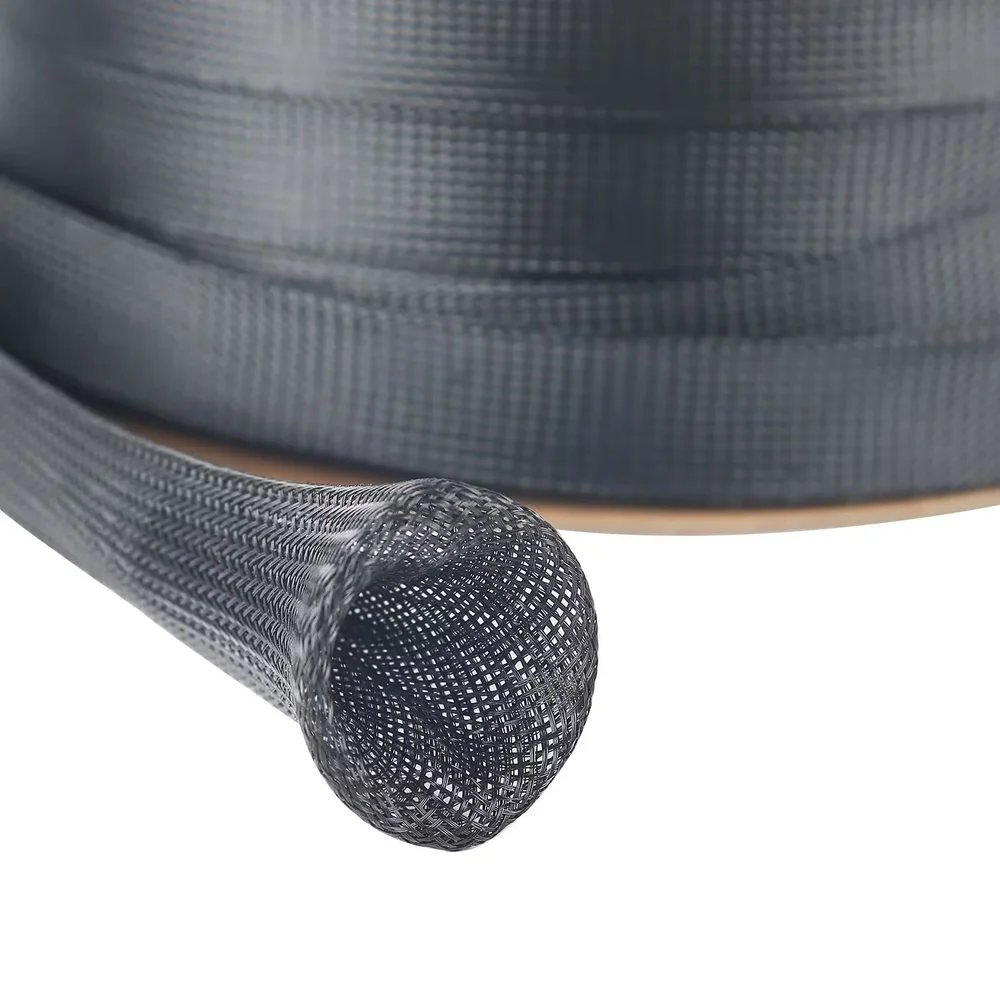

10mm Nylon Expandable Wire Braided Sleeve For Wire Protection

10mm Nylon Expandable Wire Braided Sleeve For Wire Protection is a highly durable and flexible cable management solution designed to organize and protect delicate wiring harnesses. This protective sleeve utilizes high-quality nylon filaments, which naturally expand to accommodate various cable bundles and irregular shapes. Consequently, it provides exceptional resistance to abrasion, chemicals, and everyday wear and tear. Furthermore, the open-weave construction ensures optimal heat dissipation and prevents moisture accumulation around your critical electronics. Therefore, you should choose this 10mm expandable sleeving to extend the lifespan of your cables in automotive, industrial, and custom PC building projects.

Key Features:

• High Expandability: The sleeve expands up to 150% of its original diameter, allowing you to easily slip it over bulky connectors and multiple wires.
• Superior Abrasion Resistance: Tough nylon construction protects your cables against physical damage caused by friction and sharp edges.
• Excellent Flexibility: Maintains complete flexibility across a wide temperature range, preventing the cables from becoming stiff or difficult to route.
• Heat Dissipation: The braided mesh design permits air circulation, preventing overheating in high-power wiring bundles.
• Clean Aesthetics: Instantly cleans up messy wire clusters, giving your electronic projects and custom builds a professional, finished look.

Technical Specifications:

• Material: Nylon 6-6 (Polyamide)
• Operating Temperature Range: −60°C to +150°C
• Melting Point: ≈ 250°C
• Expansion Ratio: Up to 150% of nominal diameter
• Flammability Rating: UL94 V-2 (Self-extinguishing)
• Chemical Resistance: Highly resistant to automotive fluids, solvents, and common chemicals

Mechanical Specifications:

• Weave Construction: Tightly braided monofilament
• Monofilament Thickness: ≈ 0.25 mm (10 mil)
• Flexibility: High (retains flexibility even at extreme low temperatures)
• Cutting Method: Requires a hot knife to prevent fraying at the cut ends

Dimensions:

• Nominal Inner Diameter: 10 mm (3/8 inch)
• Maximum Expanded Diameter: ≈ 15 mm
• Minimum Flat Width: ≈ 8 mm
• Wall Thickness: ≈ 0.6 mm
• Length: Supplied in continuous lengths (varies by order specification)

Pinout and Wiring:

• Preparation: Measure the required length of your cable bundle and cut the sleeve using a hot knife or lighter to seal the frayed edges.
• Insertion: Push the cables through the sleeve by compressing the mesh, which widens the internal diameter for easy routing.
• Securing Ends: However, you must secure the ends with heat shrink tubing, zip ties, or electrical tape to prevent the sleeve from slipping or unraveling.
• Routing: Route the covered harness safely through your chassis, keeping it away from moving mechanical parts.

Datasheet Reference:

• Download Nylon Braided Sleeving Datasheet

Commonly Used in:

• Automotive Wiring: Protecting engine bay wiring harnesses from high heat, mechanical abrasion, and automotive fluids.
• Custom PC Builds: Sleeving power supply cables to improve internal airflow and create a visually striking interior.
• Industrial Equipment: Organizing and defending control cables and sensor wires in harsh manufacturing environments.

Applications:

• Audio/Video Systems: Managing and concealing multiple AV cables behind home theater setups or studio racks.
• Robotics and Automation: Protecting flexible wire joints and moving sensor lines on robotic arms.
• Marine Electronics: Defending electrical lines against constant vibration and corrosive salt exposure in boat wiring.

Equivalent Models:

• Techflex Flexo Nylon: A premium brand-name alternative offering identical specifications and long-term performance.
• PET Expandable Sleeving: A similar braided sleeve made from Polyethylene Terephthalate, although nylon offers slightly better abrasion resistance.
• Split Wire Loom: An alternative protection method that features a slit for easy installation, lacking the tight fit of a braided sleeve.

Package Includes:

• 1 x 10mm Nylon Expandable Wire Braided Sleeve For Wire Protection
