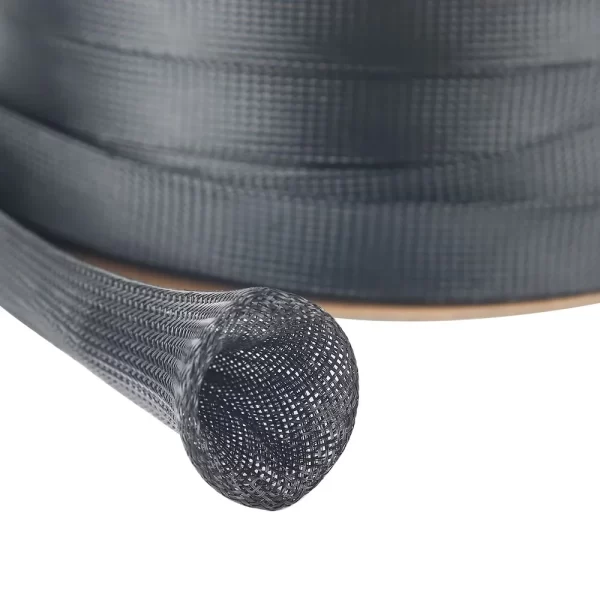

6mm Nylon Expandable Wire Braided Sleeve For Wire Protection

6mm Nylon Expandable Wire Braided Sleeve For Wire Protection provides exceptional abrasion resistance and cable management capabilities for complex wiring harnesses and electronic assemblies. Furthermore, its unique woven construction allows the sleeve to expand up to 150% of its original diameter, making it incredibly easy to slip over bulky connectors and irregular cable bundles. Consequently, technicians can quickly organize chaotic wires while ensuring long-term protection against mechanical wear, heat, and automotive fluids. Therefore, you should utilize this durable nylon sleeving to maintain neat, professional, and secure wiring configurations in your custom PC builds, automotive restorations, and industrial control panels.

Key Features:

• High Expandability: The braided nylon expands up to 1.5 times its resting diameter, accommodating various wire gauges and allowing large end connectors to pass through seamlessly.
• Superior Abrasion Resistance: The tough monofilament fibers actively resist scraping and rubbing, effectively shielding internal wires from sharp edges and moving machine parts.
• Chemical Tolerance: The material withstands exposure to common automotive chemicals, cleaning solvents, and lubricants without degrading or losing its structural integrity.
• Clean Aesthetics: The sleek woven finish conceals colorful internal wires, providing a professional and unified look to any exposed wiring harness or custom assembly.
• Flexible Routing: The sleeve bends effortlessly around tight corners without kinking, maintaining full mechanical protection even in highly confined structural spaces.

Technical Specifications:

• Material Composition: Nylon 66 (Polyamide) Monofilament
• Nominal Operating Temperature: −60°C to +150°C
• Melting Point: ≥ 250°C (±5°C)
• Expansion Ratio: Up to 150% of the nominal resting diameter
• Flammability Rating: UL94 V-2 or equivalent self-extinguishing standard
• Dielectric Strength: Non-conductive synthetic polymer provides excellent electrical insulation.

Mechanical Specifications:

• Monofilament Thickness: ≈ 0.25 mm per strand
• Structure Type: Woven Expandable Braid
• Flexibility: Extremely high, retaining shape after repeated bending and twisting.
• Cutting Method Requirements: Requires a hot knife or heat-sealing tool to prevent fiber fraying.

Dimensions:

• Nominal Inner Diameter (Resting): 6.0 mm
• Maximum Expanded Inner Diameter: ≈ 9.0 mm to 10.0 mm
• Wall Thickness: ≈ 0.6 mm (Varies slightly based on expansion state)
• Weight: ≈ 5.5 g per meter (Extremely lightweight for aerospace and drone applications)

Pinout and Wiring:

• Wire Insertion: Bundle your targeted wires tightly together and gently push them through the expanded opening of the sleeving.
• End Termination: Secure both ends of the installed sleeve using adhesive-lined heat shrink tubing or heavy-duty zip ties to lock the fibers in place.
• Cutting Procedure: Always use a heated cutting tool to slice the sleeve, as this action simultaneously melts and seals the nylon ends to prevent structural unraveling.
• Routing Note: However, you must leave a small amount of slack inside the sleeve before securing the final end to prevent tension on the internal wires during sharp physical bends.

Datasheet Reference:

• Download General Braided Sleeving Datasheet

Commonly Used in:

• Automotive Wiring: Protecting engine bay harnesses and chassis wiring from vibration, heat, and engine fluids.
• PC Cable Modding: Sleeving power supply cables (ATX, PCIe) to improve case airflow and enhance the visual design of custom computers.
• Industrial Robotics: Managing dynamic cables on robotic arms that experience constant flexing and abrasive movement.

Applications:

• Harness Creation: Consolidating dozens of individual loose wires into a single, manageable, and highly protected umbilical trunk.
• Aesthetic Upgrades: Upgrading the look of exposed 3D printer wiring, audio equipment cables, and home theater installations.
• Abrasion Protection: Moreover, engineers apply it over pneumatic air lines and liquid cooling tubes to prevent fatal punctures from friction.

Equivalent Models:

• Techflex Flexo Nylon: The premium industry standard for nylon expandable sleeving, offering identical mechanical performance and chemical resistance.
• PET Braided Sleeving: A very similar expandable sleeve made from Polyethylene Terephthalate, although it typically possesses a slightly lower operating temperature rating than nylon.
• Corrugated Split Loom: A rigid plastic tubing alternative that offers faster installation for pre-wired systems but lacks the flexibility and compact profile of braided nylon.

Package Includes:

• 1 x 6mm Nylon Expandable Wire Braided Sleeve (Sold in continuous lengths per meter as ordered)
