1.69 inch Full Color SPI 240X280 ST7789V TFT LCD display

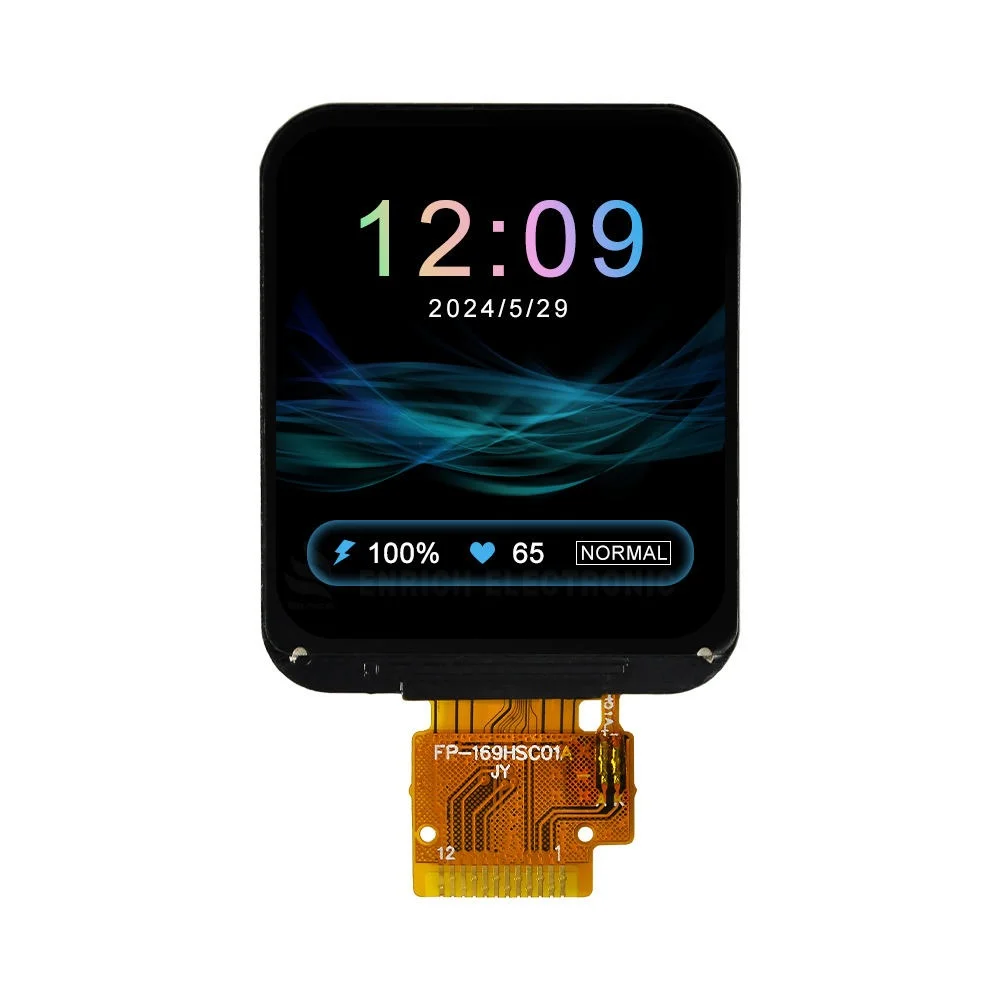

1.69 inch Full Color SPI 240×280 ST7789V TFT LCD Display is a high-resolution display module ideal for embedded systems, DIY electronics, and portable applications. It features a vibrant 240×280 pixel resolution with 262K color depth, driven by the ST7789V controller and connected via SPI interface for fast and efficient data transmission.

Key Features:

• High Resolution: 240×280 pixels in a compact 1.69-inch screen.
• Full Color: Supports 262K colors for rich visual output.
• ST7789V Controller: Built-in display driver for SPI-based microcontroller interfacing.
• SPI Interface: 4-wire SPI ensures simple integration with microcontrollers.
• Backlight Included: LED backlight enhances visibility in low-light conditions.

Technical Specifications:

• Display Type: 1.69-inch TFT LCD
• Resolution: 240 × 280 pixels
• Color Depth: 262K colors
• Driver IC: ST7789V
• Interface: 4-wire SPI
• Operating Voltage: 3.3V (logic and backlight)
• Backlight: White LED
• Viewing Angle: IPS wide-angle technology

Mechanical Specifications:

• Display Size: 1.69 inches (diagonal)
• Module Dimensions: Approx. 32mm × 40mm × 4.5mm
• Mounting Holes: 4 holes for easy enclosure installation
• Connector Type: Solder pads or header pin interface

Pinout and Wiring:

• GND: Ground
• VCC: 3.3V Power Supply
• SCL: SPI Clock
• SDA: SPI Data
• RES: Reset
• DC: Data/Command
• CS: Chip Select
• BLK: Backlight Control (can be tied to VCC)

Datasheet and Documentation:

• Download ST7789V Controller Datasheet (PDF)

Applications:

• DIY Projects: Ideal for compact graphical interfaces in Arduino or ESP32 projects.
• Wearables: Used in compact devices like smartwatches and fitness trackers.
• Embedded Displays: Suitable for menu systems and status screens.
• Portable Instruments: Display readings in handheld or battery-powered tools.
• Game Consoles: Build retro or custom gaming displays with colorful graphics.

Equivalent Models:

• 1.3 inch ST7789: Smaller size with same SPI controller
• 1.8 inch ST7735: Slightly larger TFT with 160×128 resolution
• 1.54 inch ILI9341: Different driver IC with touchscreen options

Package Includes:

• 1 x 1.69 inch Full Color SPI 240×280 ST7789V TFT LCD Display Module
