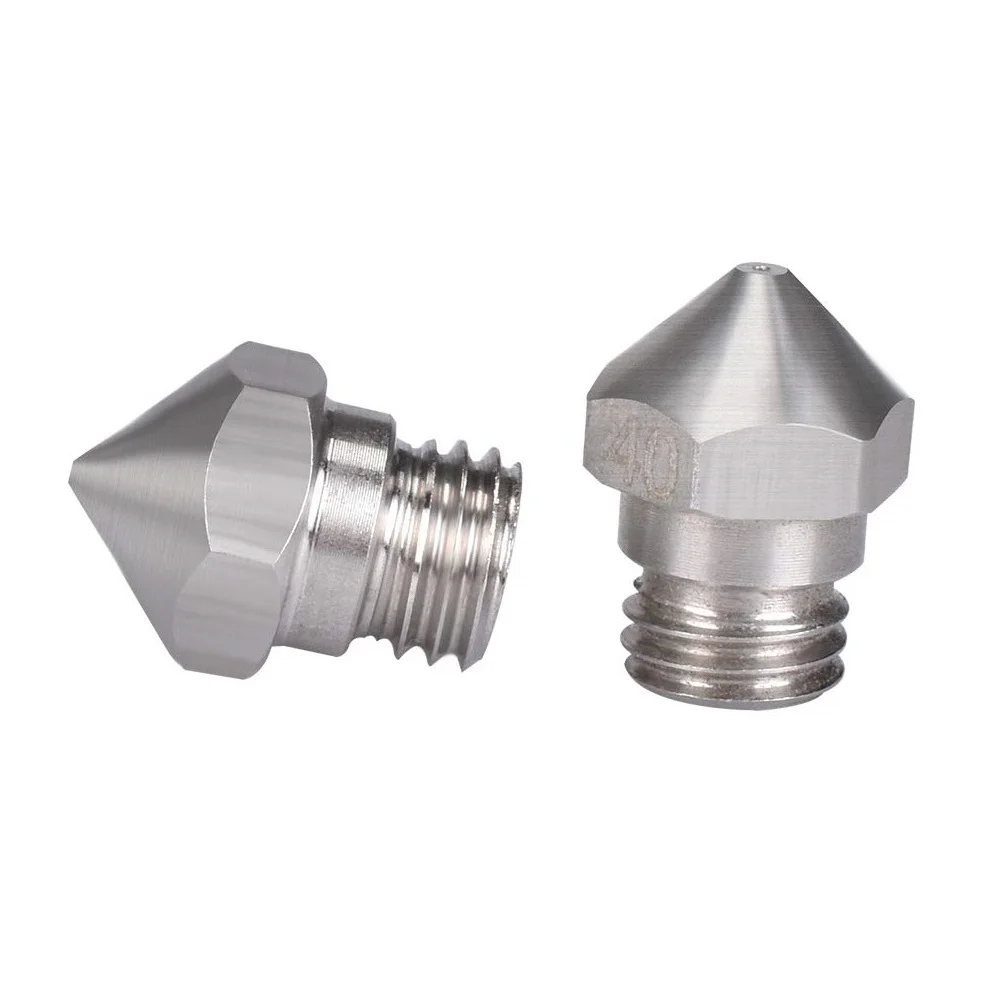

0.4mm / 1.75mm MK10 3D Printer Extruder Hotend Nozzle

0.4mm / 1.75mm MK10 3D Printer Extruder Hotend Nozzle (Steel) provides a rugged and durable solution for high-temperature 3D printing tasks that quickly wear down standard brass alternatives. This specialized hardened steel nozzle maintains its internal geometry even when processing abrasive filaments like carbon fiber, wood-fill, or glow-in-the-dark materials. Consequently, it ensures consistent extrusion width and superior print quality over long-term use. Furthermore, the MK10 geometry features an M7 threaded body, which creates a secure, leak-proof seal with the thermal barrier tube. Therefore, upgrading to this steel nozzle significantly extends the maintenance intervals of your 3D printer and allows you to experiment with industrial-grade composite materials without fear of tip degradation.

Key Features:

• Abrasion Resistance: Hardened steel construction resists the scouring effects of composite filaments, preserving the 0.4mm orifice diameter for hundreds of printing hours.
• High-Temperature Capability: This nozzle safely handles temperatures exceeding 300°C, making it suitable for printing polycarbonate and nylon.
• Precision Machining: The smooth internal bore reduces friction during extrusion. As a result, the extruder experiences less backpressure and fewer clogs.
• MK10 Compatibility: Designed specifically for MK10 hotends that utilize an M7 thread pattern and an internal 4mm PTFE liner setup.
• Thermal Stability: Although steel has lower thermal conductivity than brass, this nozzle maintains a very stable temperature once heated, which prevents fluctuations during large prints.

Technical Specifications:

• Nozzle Orifice: 0.4 mm
• Filament Diameter: 1.75 mm
• Thread Type: M7 x 1.0 mm pitch
• Material: Hardened High-Strength Steel
• Maximum Temperature: ≈ 450°C (Depending on heater block capacity)
• Hardness: ≥ 50 HRC

Mechanical Specifications:

• Installation Type: External Screw-in Thread
• Internal Geometry: Stepped bore for PTFE tube insertion (MK10 style)
• Surface Finish: Polished internal path and oxide-coated exterior for corrosion resistance.
• Durability: Highly resistant to physical impact and thermal expansion stress.

Dimensions:

• Total Length: ≈ 13.0 mm
• Thread Length: ≈ 5.0 mm
• Wrench Size: 9 mm Hexagon
• External Thread Diameter: 7 mm (M7)

Pinout and Wiring:

• Mechanical Component: This is a non-electrical part and does not require wiring.
• Installation Tip: However, you must always tighten the nozzle while the hotend is at operating temperature to ensure a proper seal against the heat break.
• Thermal Paste: Furthermore, apply a small amount of high-temp anti-seize to the threads to prevent “cold welding” in the heater block.

Datasheet Reference:

• Download MK10 Steel Nozzle Dimensional Drawing

Commonly Used in:

• FlashForge Printers: Standard upgrade for Creator Pro, Dreamer, and Finder series.
• Wanhao Printers: Frequently utilized in the Duplicator 4 and Duplicator i3 (v2.1/Plus) models.
• Monoprice Machines: Compatible with the Maker Select and Ultimate series desktop printers.

Applications:

• Industrial Prototyping: Printing functional parts using carbon-fiber-reinforced PETG or PLA.
• Artistic Printing: Handling metal-filled or wood-filled filaments that exhibit high internal friction.
• Long-Duration Prints: Consequently, this nozzle provides the reliability needed for prints spanning several days without tip wear.

Equivalent Models:

• Micro Swiss M2542-04: The premium industry standard for MK10 hardened steel nozzles.
• Standard MK10 Brass Nozzle: A cheaper alternative, however, it lacks the wear resistance required for abrasive filaments.
• A8 Steel Nozzle Series: Often used as a generic cross-reference for M7 threaded extruders.

Package Includes:

• 1 x 0.4mm / 1.75mm MK10 3D Printer Extruder Hotend Nozzle (Hardened Steel)
