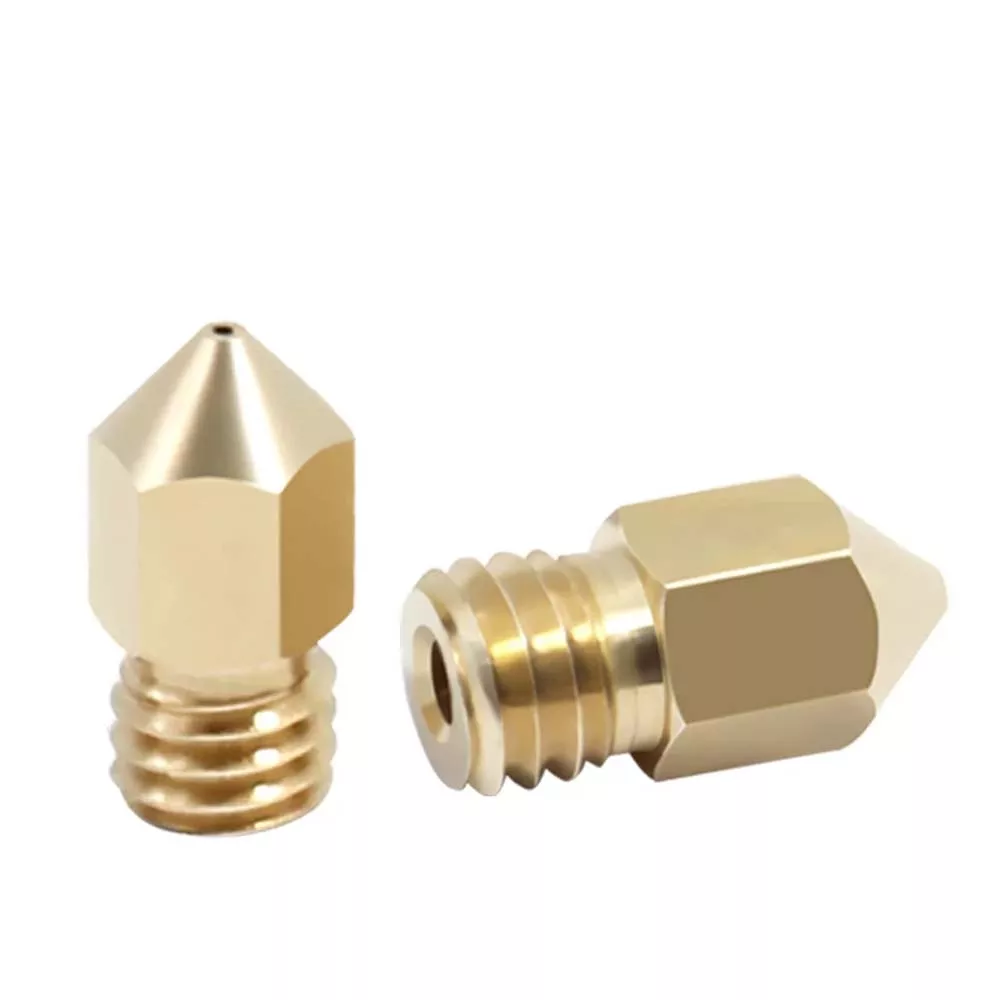

0.4mm / 1.75mm MK8 3D Printer Extruder Hotend Nozzle

0.4mm / 1.75mm MK8 3D Printer Extruder Hotend Nozzle is a precision-engineered component designed to provide consistent filament extrusion for high-quality FDM 3D printing. This nozzle serves as a direct replacement or upgrade for MK8 style hotends, offering a balance between print speed and fine detail resolution. Furthermore, the 0.4mm orifice diameter has become the industry standard because it accommodates the widest variety of layer heights and filament types. Manufactured from high-thermal conductivity brass, the nozzle ensures uniform heat distribution, which minimizes clogs and improves interlayer adhesion. Consequently, you can achieve smoother surface finishes and more accurate dimensional tolerances in your 3D printed models. Therefore, keeping several spare MK8 nozzles in your toolkit is an essential practice for maintaining peak printer performance.

Key Features:

• Precision Orifice: The 0.4mm output diameter allows for intricate detailing while maintaining efficient print speeds across various project scales.
• High Thermal Conductivity: Crafted from premium brass, the nozzle transfers heat rapidly to the filament, ensuring a stable melt zone during high-speed extrusion.
• Smooth Internal Walls: Low-friction internal machining reduces backpressure and prevents the accumulation of carbonized plastic, significantly lowering the risk of underextrusion.
• Universal MK8 Compatibility: The M6 threading ensures a perfect fit for a vast range of popular 3D printers and extruder assemblies.
• Burr-Free Finish: Each nozzle undergoes a rigorous polishing process to eliminate sharp edges at the tip that might otherwise snag on printed layers.

Technical Specifications:

• Nozzle Orifice Diameter: 0.4 mm
• Compatible Filament Diameter: 1.75 mm
• Maximum Operating Temperature: ≈ 300°C (Depending on heat block material)
• Thread Type: M6 (Metric 6mm)
• Hardness: 3.0 Mohs (Standard Brass)
• Thermal Conductivity: 105 W/m·K

Mechanical Specifications:

• Material: International Standard Brass (H59 / H62)
• Hexagon Diameter: 6 mm (For standard wrench or socket installation)
• Installation Torque: ≈ 1.5 N·m to 2.0 N·m (Should be tightened while hot)
• Corrosion Resistance: High resistance to oxidation under normal printing temperatures.

Dimensions:

• Total Length: 13.0 mm
• Thread Length: 5.0 mm
• Head Length: 8.0 mm
• External Thread Diameter: 6.0 mm (M6)
• Weight: ≈ 2.0 g

Pinout and Wiring:

• Electrical Connection: This is a mechanical component and does not require electrical wiring.
• Thermal Interface: The nozzle must maintain direct physical contact with the heat break inside the heater block to prevent leakage.
• Assembly Note: However, you must always perform the final tightening of the nozzle at the printer’s maximum operating temperature to account for thermal expansion.

Datasheet Reference:

• Download MK8 Extruder Nozzle Technical Drawing

Commonly Used in:

• Creality Series: Found in nearly all Ender 3, Ender 5, and CR-10 series 3D printers.
• MakerBot Replicator: Compatible with original MK8 and MK9 extruder designs.
• Anet and Geeetech: Frequently used in DIY kits and entry-level desktop 3D printers.

Applications:

• Prototyping: Creating functional mechanical parts with PLA, PETG, or ABS filaments.
• Educational Projects: Serving as a low-cost, easy-to-replace part for classroom 3D printing labs.
• Consumer Goods: Printing decorative items, toys, and household fixes where standard detail is required.

Equivalent Models:

• Hardened Steel MK8: A more durable version for abrasive filaments, however, it offers lower thermal conductivity than brass.
• Stainless Steel MK8: Often used for food-safe or medical-related printing tasks due to its non-reactive properties.
• Plated Copper MK8: Provides even higher heat transfer than brass, furthermore, the plating prevents filament from sticking to the tip.

Package Includes:

• 1 x 0.4mm / 1.75mm MK8 3D Printer Extruder Hotend Nozzle
