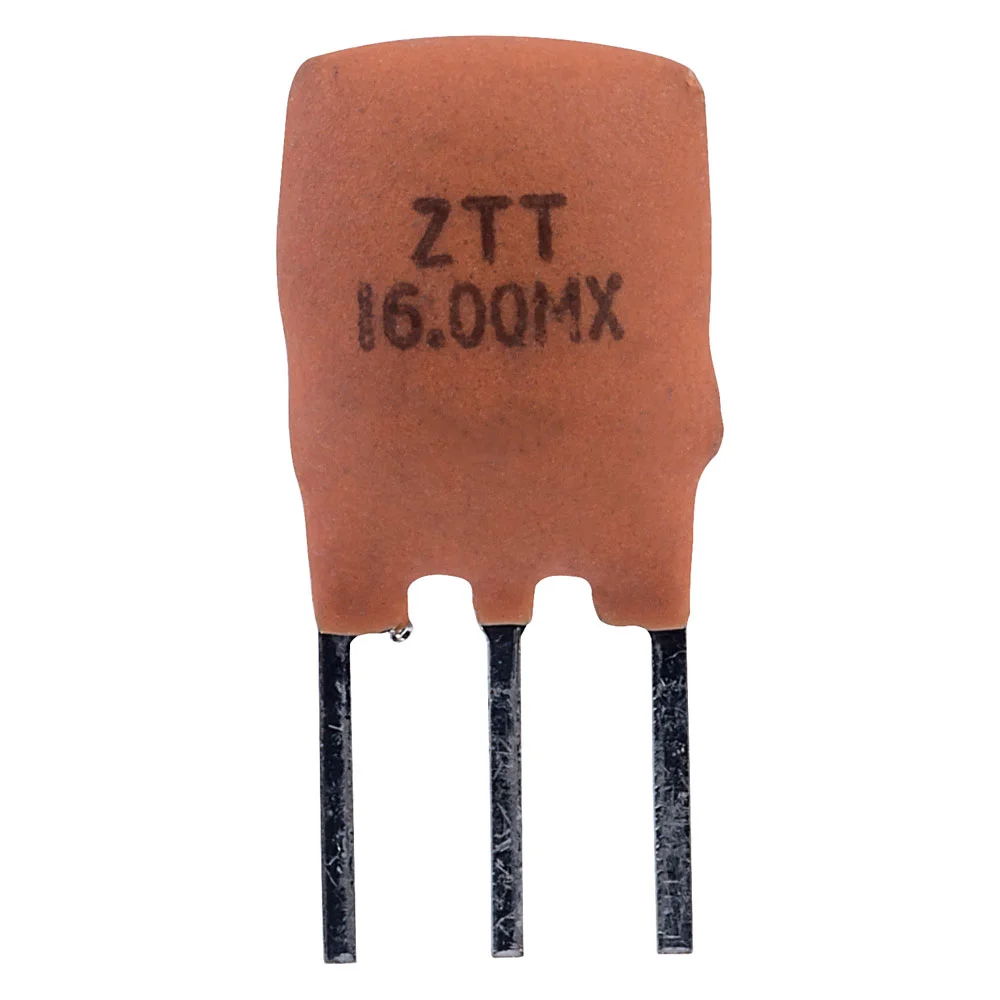

ZTT 16.00 MHz Ceramic Resonator

• ZTT 16.00 MHz Ceramic Resonator is a highly dependable, three-pin frequency control device designed to provide a stable clock signal for high-speed microcontrollers and embedded systems. Consequently, it eliminates the need for external load capacitors by integrating them directly into the package, which significantly streamlines your printed circuit board (PCB) design. Furthermore, this cost-effective component serves as an excellent alternative to bulkier quartz crystals in applications where absolute precision is less critical. Therefore, engineers routinely select this resonator to optimize space and reduce manufacturing costs in mass-produced digital electronics.

Key Features:

• Integrated Load Capacitors: The device features built-in 30pF capacitors, simplifying the oscillator circuit and saving valuable board space.
• Fast Start-Up Time: It achieves stable oscillation much faster than standard crystals, enabling quicker system boot times.
• Excellent Durability: The robust ceramic construction naturally withstands physical shock and vibration better than traditional quartz alternatives.
• Compact Radial Package: The low-profile, through-hole design allows you to easily mount the component on densely packed circuit boards.
• Cost-Effective Operation: Additionally, it provides reliable timing functionality at a fraction of the cost associated with high-precision quartz oscillators.

Technical Specifications:

• Nominal Frequency: 16.000 MHz
• Frequency Tolerance: ±0.5% (at 25°C)
• Temperature Stability: ±0.3% (over operating temperature range)
• Resonant Impedance (R_o): Maximum 30 Ω
• Built-in Capacitance (C_L): ≈ 30 pF (per pin)
• Operating Temperature Range: −20°C to +80°C

Mechanical Specifications:

• Material: High-stability Piezoelectric Ceramic
• Package Type: 3-Pin Radial Lead (Through-Hole)
• Pin Pitch: 2.54 mm (Standard 0.1 inch spacing)
• Encapsulation: Hard epoxy resin coating for environmental protection

Dimensions:

• Body Width: ≈ 10.0 mm
• Body Height: ≈ 10.0 mm
• Body Thickness: ≈ 5.0 mm
• Lead Length: ≈ 5.0 mm to 7.0 mm
• Pin Diameter: ≈ 0.5 mm

Pinout and Wiring:

• Pin 1 (Input/Output): Connect this terminal to the oscillator input or output pin of your microcontroller (e.g., XTAL1).
• Pin 2 (Ground): Route the center pin directly to the common system ground (0V).
• Pin 3 (Output/Input): Connect this terminal to the corresponding complementary oscillator pin on your microcontroller (e.g., XTAL2).
• Design Note: Moreover, you must keep the traces between the resonator and the microcontroller as short as possible to prevent parasitic interference.

Datasheet Reference:

• Download ZTT Series Ceramic Resonator Datasheet

Commonly Used in:

• Arduino Compatible Boards: Providing the primary 16MHz clock signal for custom ATMega328P standalone projects.
• USB Interfaces: Clocking basic USB-to-serial bridge chips that accept a 16MHz reference.
• Consumer Appliances: Driving the timing circuits in microwaves, washing machines, and HVAC control panels.

Applications:

• Embedded System Timing: Generating the main execution heartbeat for 8-bit and 16-bit microcontrollers.
• Motor Control Units: Establishing reliable operational frequencies for PWM generation in motor drivers.
• Communication Modules: Supplying the base oscillator frequency for low-speed RF and infrared transmitters.

Equivalent Models:

• CSTCE16M0V53-R0: A surface-mount (SMD) alternative from Murata that offers similar 16MHz timing capabilities.
• ZTA 16.00MX: A two-pin version of the 16MHz resonator, however, it requires external load capacitors to function properly.
• ECS-160-20-4X: A standard 16MHz quartz crystal, which you can use if your design demands higher frequency accuracy.

Package Includes:

• 1 x ZTT 16.00 MHz 3-Pin Ceramic Resonator
