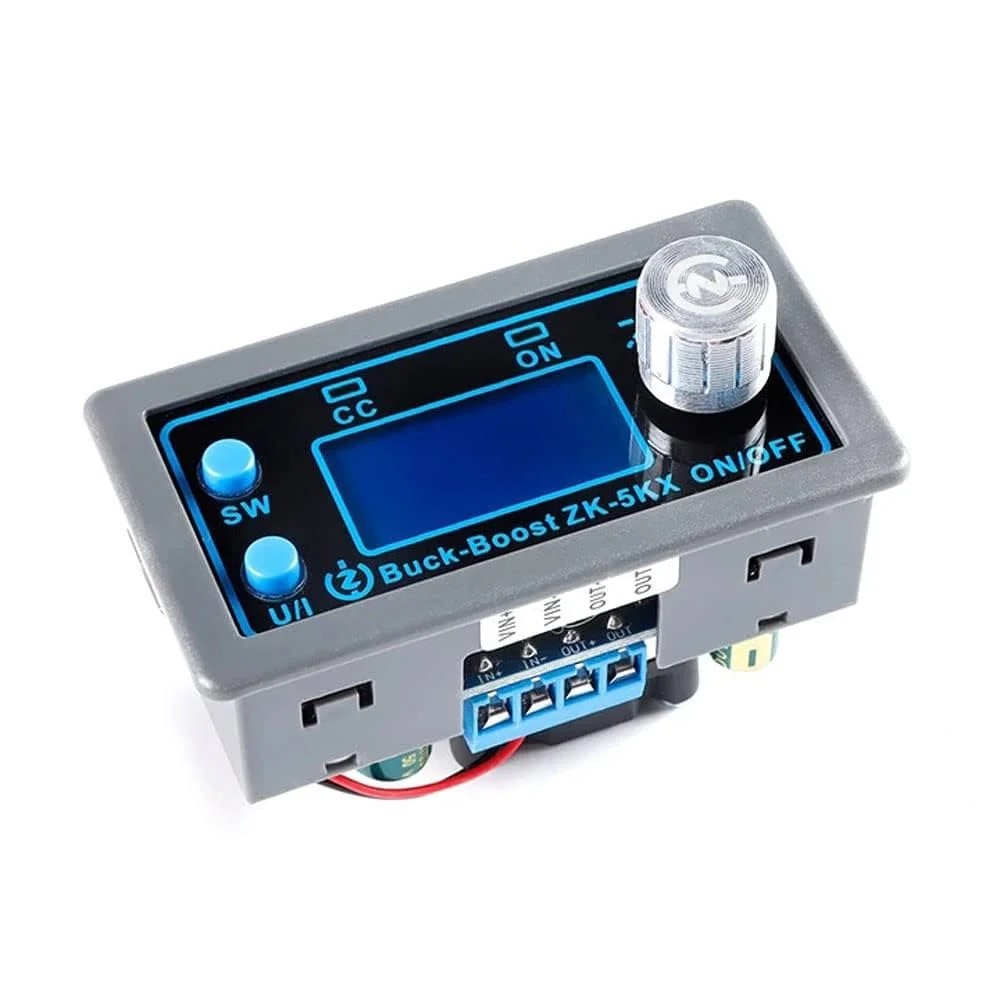

ZK-5KX DC0.6-36V 5A 80W Adjustable Buck Boost Power Supply Module

ZK-5KX DC 0.6–36V 5A Adjustable Buck Boost Power Supply Module is a versatile and high-performance DC-DC converter designed to provide precise voltage regulation for a wide range of electronic projects. This module utilizes a sophisticated buck-boost topology, which allows it to maintain a stable output voltage regardless of whether the input voltage is higher or lower than the desired set point. Consequently, you can use a variety of power sources, such as batteries or unregulated wall adapters, to drive sensitive equipment safely. The integrated LCD display provides real-time monitoring of voltage, current, power, and capacity, offering a professional user interface for benchtop testing. Furthermore, the ZK-5KX includes multiple software protection mechanisms to prevent damage from over-voltage or over-current conditions. Therefore, this power supply module serves as an indispensable tool for hobbyists and engineers who require a portable, adjustable, and reliable power solution.

Key Features:

• Automatic Buck-Boost: The module seamlessly transitions between step-up and step-down modes to ensure the output remains constant despite input fluctuations.
• Digital Control Interface: A dedicated rotary encoder and crisp LCD screen allow for fine-tuned adjustments and clear visibility of operational parameters.
• Comprehensive Protection: It features built-in safeguards against under-voltage (LVP), over-voltage (OVP), over-current (OCP), over-power (OPP), and over-temperature (OTP).
• High Efficiency: Optimized circuitry minimizes energy loss during conversion, which reduces heat generation and extends component lifespan.
• CC and CV Modes: Supports both constant current and constant voltage operation, making it suitable for battery charging and LED driving.

Technical Specifications:

• Input Voltage Range: DC 6.0 V to 36 V
• Output Voltage Range: DC 0.6 V to 36 V
• Output Current Range: 0 to 5.0 A
• Output Power: 80 W (Max 100 W with enhanced cooling)
• Voltage Resolution: 0.01 V
• Current Resolution: 0.001 A
• Conversion Efficiency: ≈ 88%
• Soft Start Support: Yes (Prevents inrush current during startup)

Mechanical Specifications:

• Enclosure Material: High-grade flame-retardant ABS
• Cooling Method: Thickened heat sink and integrated fan for active thermal management
• Display Type: Custom LCD with backlight
• Input/Output Connectors: Screw terminals for secure wire attachment

Dimensions:

• Module Length: ≈ 79 mm
• Module Width: ≈ 43 mm
• Module Height: ≈ 48 mm
• Panel Cutout: ≈ 71 mm x 39 mm

Pinout and Wiring:

• IN+ Terminal: Connect to the positive lead of the input power source (6V–36V).
• IN- Terminal: Connect to the negative (ground) lead of the input power source.
• OUT+ Terminal: Connect to the positive terminal of the load or battery.
• OUT- Terminal: Connect to the negative terminal of the load or battery.
• Wiring Note: Ensure that input polarity is correct to avoid triggering protection; however, the module does include anti-reverse connection circuitry for added safety.

Datasheet Reference:

• Download ZK-5KX Buck Boost Module User Manual

Commonly Used in:

• Laboratory Bench Power: Providing a compact and adjustable power source for prototyping and testing various circuits.
• Battery Charging Systems: Charging Lithium, Lead-Acid, and Ni-Cd batteries using the constant current (CC) feature.
• Solar Energy Systems: Stabilizing the fluctuating voltage from solar panels to a fixed output for electronic loads.

Applications:

• DIY Desktop Power Supply: Creating a customized, digital-display power station for home workshops.
• LED Driver: Powering high-brightness LED arrays with precise current control to prevent overheating.
• Field Testing: Acting as a portable voltage regulator for field technicians working with batteries or vehicles.

Equivalent Models:

• ZK-4KX: A slightly lower power version (4A / 35W) suitable for smaller electronic projects.
• DPS3005: A popular communication-enabled buck converter, although it lacks the boost capability found in the ZK-5KX.
• XY-SK80: A similar 80W buck-boost module offering comparable digital control and protection features.

Package Includes:

• 1 x ZK-5KX DC 0.6–36V 5A Adjustable Buck Boost Power Supply Module
