XL6009 DC-DC Step-Up Converter Buck Power Supply

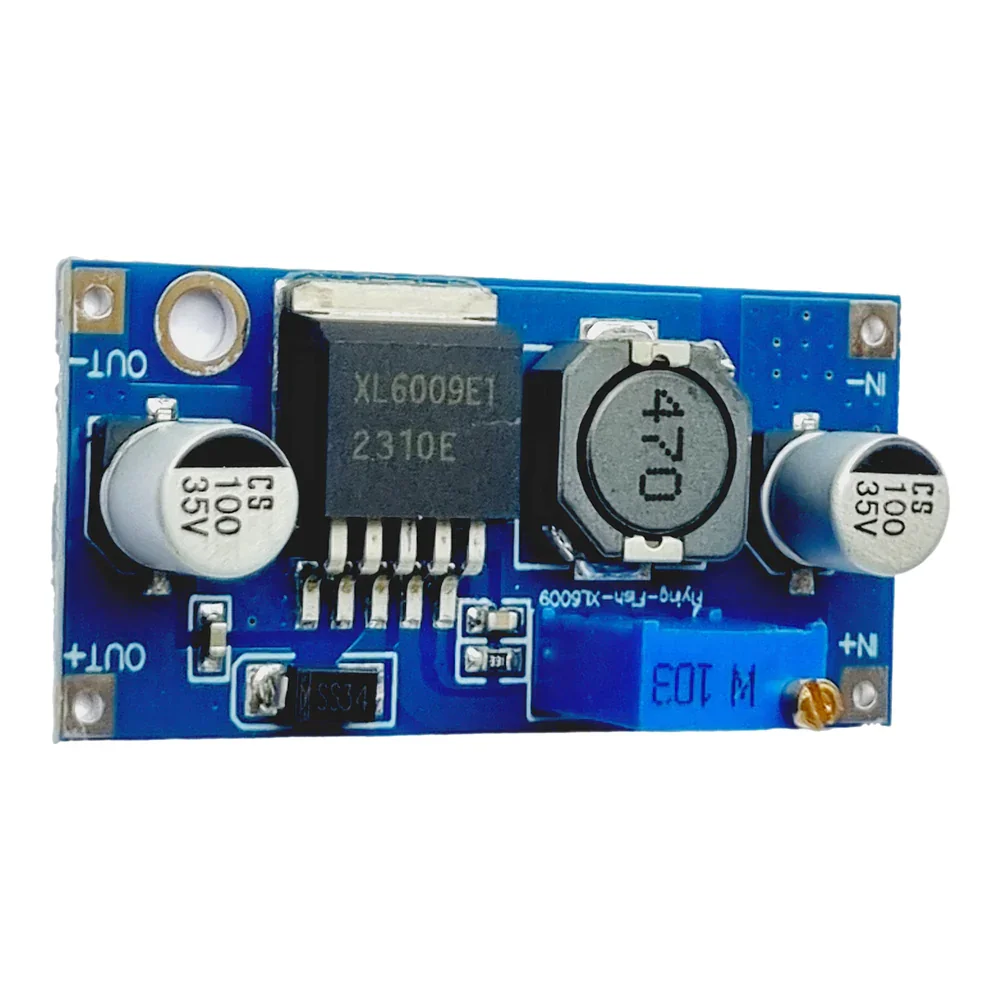

The XL6009 DC Adjustable Step-Up Booster Power Module is a versatile voltage boost converter designed for efficient power conversion. It can step up input voltages as low as 3V to output levels up to 35V, making it ideal for battery-powered projects, LED drivers, and DIY electronics. Built around the XL6009 regulator IC, it offers superior switching frequency and efficiency compared to older LM2577 modules.

Key Features of XL6009 DC Adjustable Step-Up Booster Power Module:

• Wide Input Voltage Range: Accepts 3V to 32V DC input.
• Adjustable Output Voltage: Boosts up to 35V via onboard potentiometer.
• High Efficiency: Up to 94% efficiency under optimal conditions.
• High Switching Frequency: Operates at 400KHz for reduced component size.
• Thermal Shutdown and Overcurrent Protection: Ensures safe operation in critical conditions.

Technical Specifications of XL6009 DC Adjustable Step-Up Booster Power Module:

• Input Voltage: 3V – 32V DC
• Output Voltage: 5V – 35V DC (adjustable)
• Output Current: 2A (maximum), 3A peak
• Efficiency: Up to 94%
• Switching Frequency: 400KHz
• Regulator IC: XL6009
• Operating Temperature: -40°C to +85°C

Mechanical Specifications of XL6009 Booster Module:

• PCB Dimensions: 43mm x 21mm x 14mm (L x W x H)
• Weight: Approx. 12 grams
• Adjuster Type: Multi-turn potentiometer
• Connectors: Input/Output solder pads or pin headers

Dimensions:

• Length: 43mm
• Width: 21mm
• Height: 14mm (including inductor and components)

Mounting Options:

• PCB Soldering: Can be directly soldered onto project boards.
• Pin Header: Use with male headers for breadboard applications.

Schematic Diagram, Connection, Wiring and Pinout of XL6009 Module:

• VIN+ and VIN-: Connect input voltage here (e.g., battery or DC adapter).
• VOUT+ and VOUT-: Provides boosted voltage output.
• Adjustment: Use the potentiometer to fine-tune output voltage.

Datasheet of XL6009 Regulator IC:

• Download XL6009 Datasheet (PDF)

Applications of XL6009 DC Adjustable Step-Up Booster Power Module:

• DIY Power Supply: Adjustable output for powering various devices.
• Battery-Powered Systems: Steps up lower battery voltage to required levels.
• LED Drivers: Powers LED strips or high-power LEDs from a low voltage source.
• Arduino and Embedded Projects: Supplies boosted voltage to sensors or modules.
• Communication Devices: Used in radio and Wi-Fi repeater circuits.

Equivalent of XL6009 Booster Module:

• MT3608: Compact DC-DC step-up module for lower current applications
• LM2577: Older-generation booster with lower switching frequency
• TPS61088: High-efficiency, high-power step-up converter IC

Package Includes:

• 1 x XL6009 DC Adjustable Step-Up Booster Power Module
