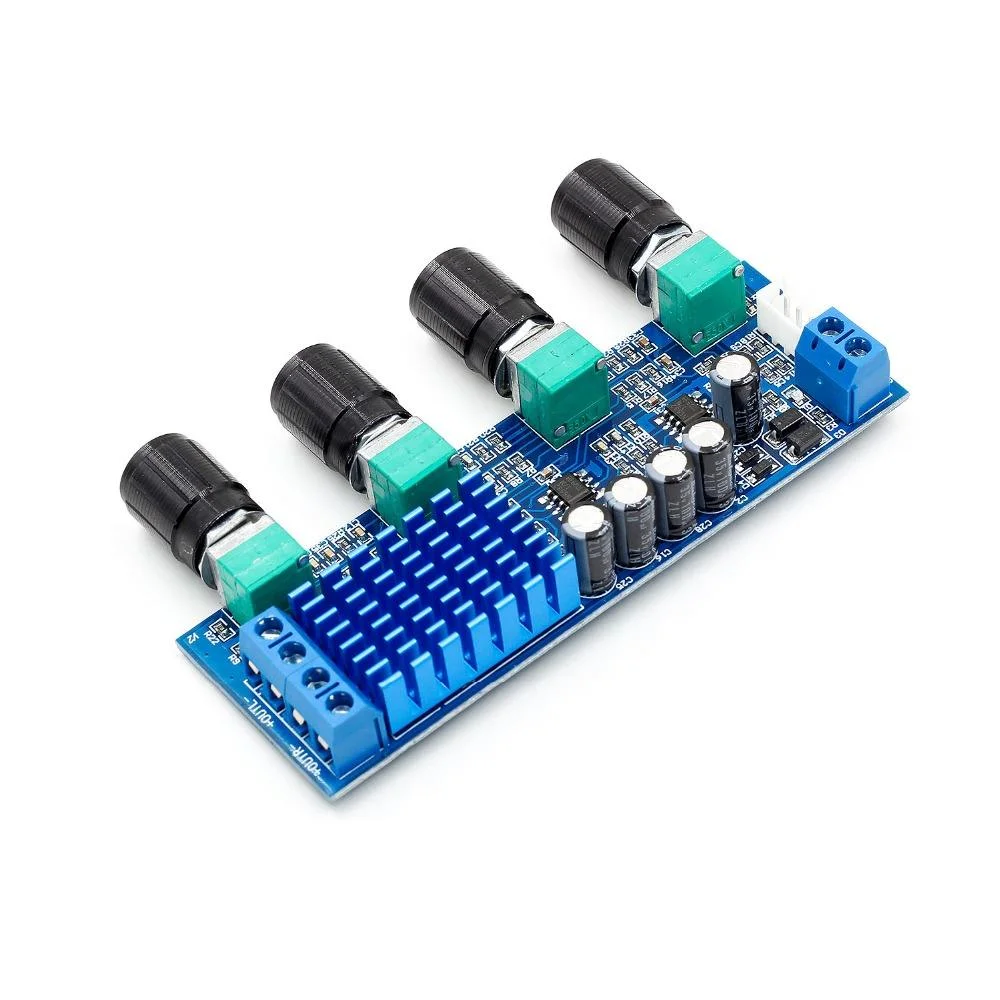

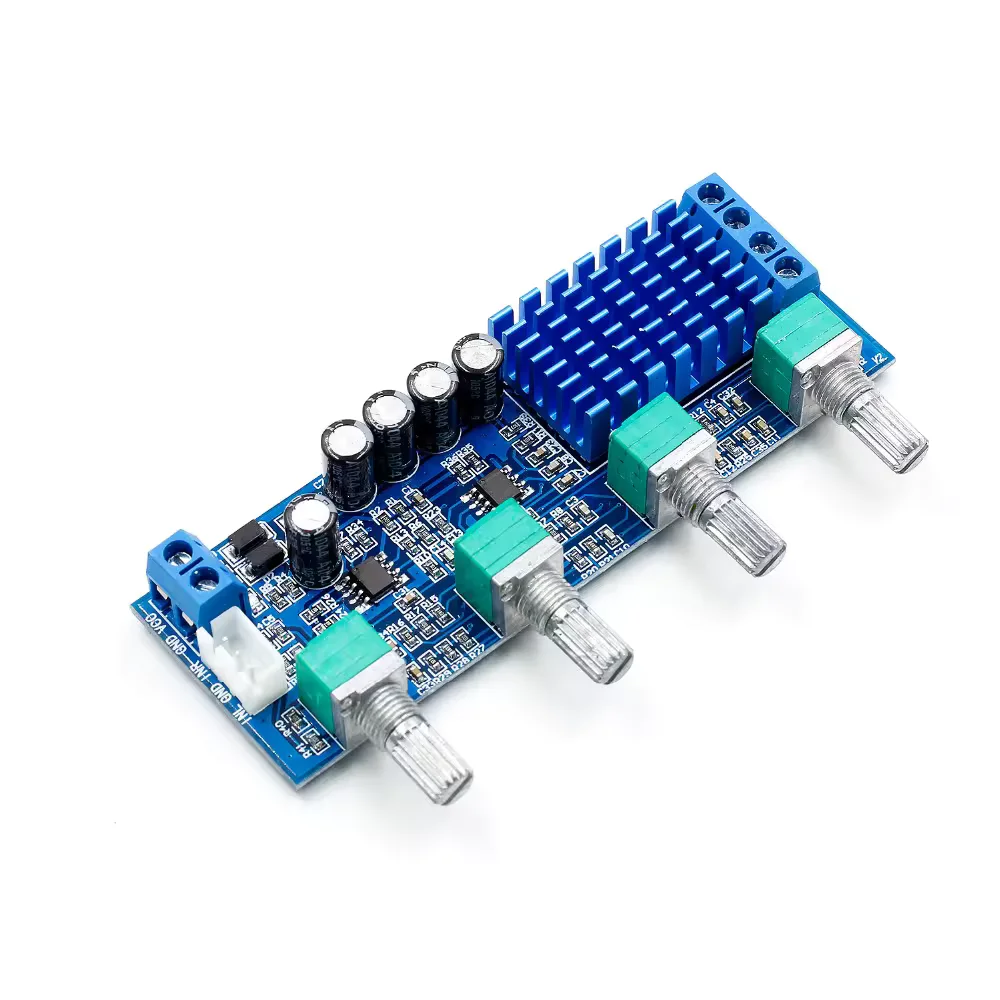

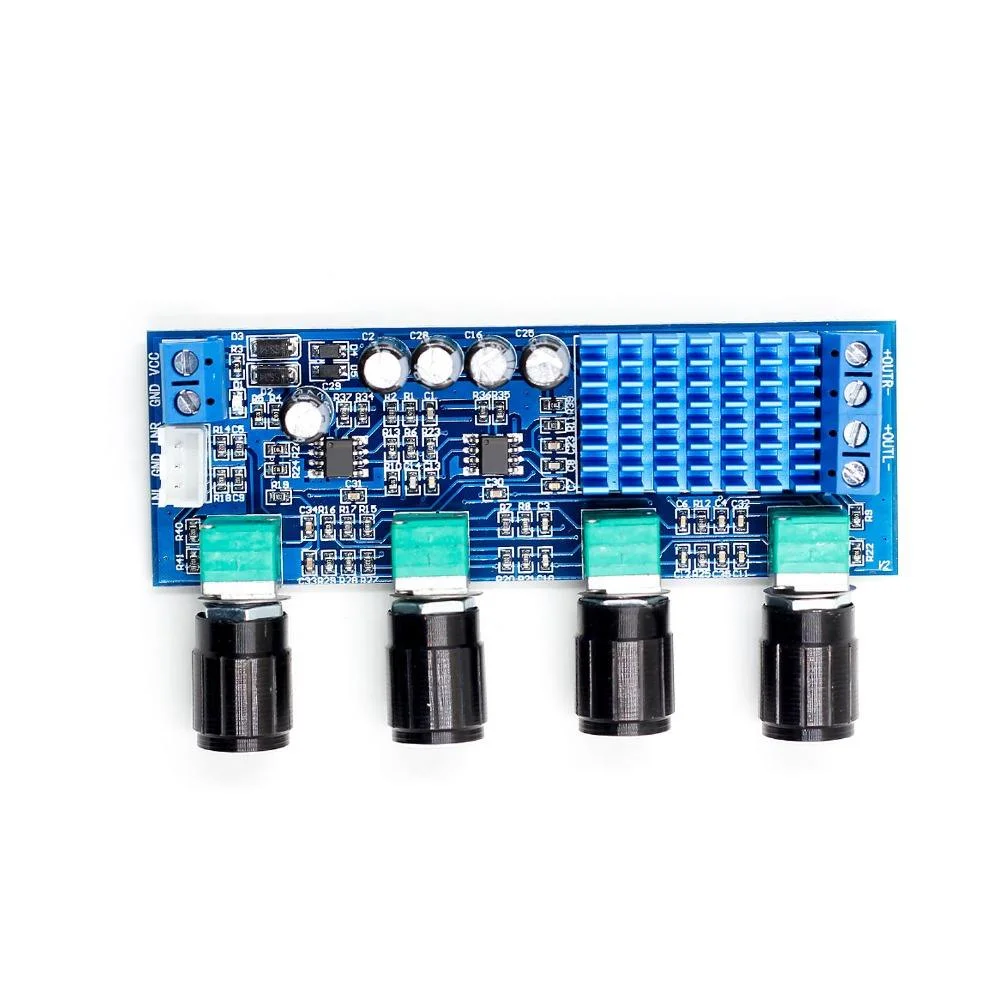

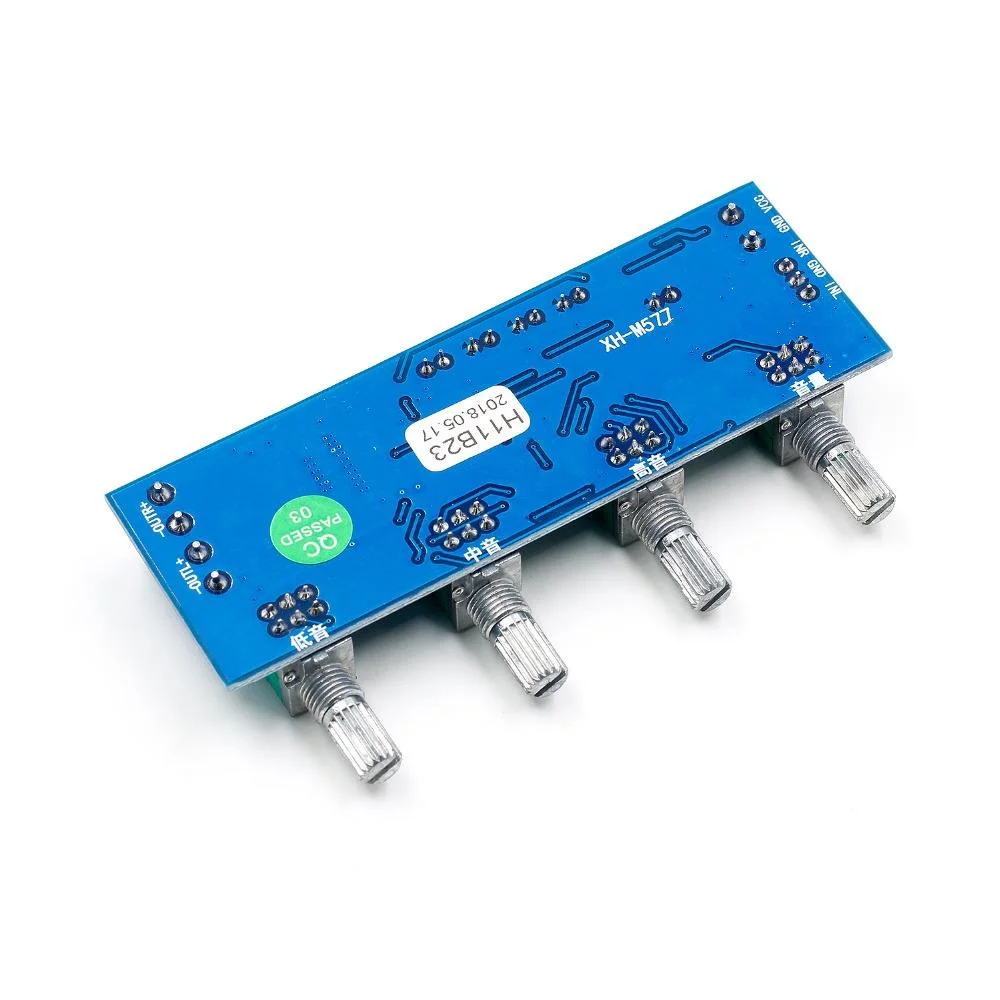

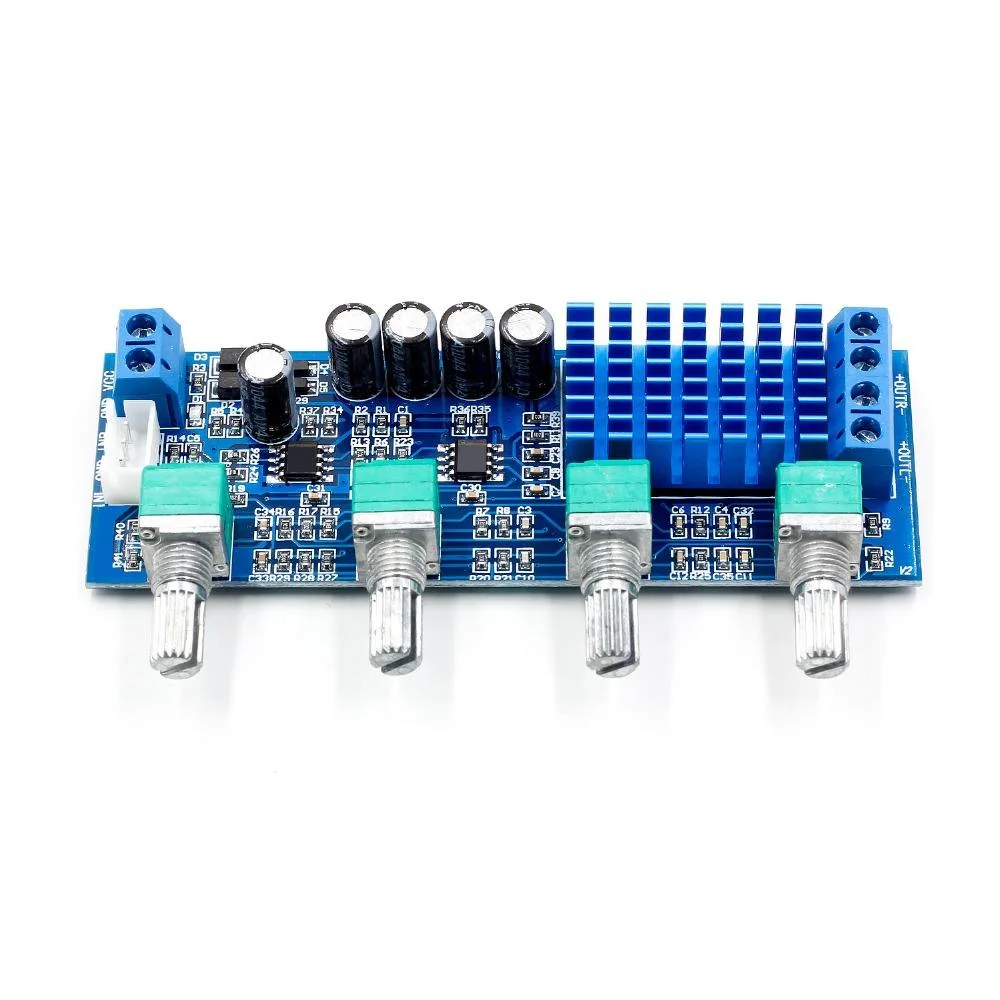

XH-M577 TPA3116D2 High Power 12-24V Dual-Channel 2 X 80W Audio Amplifier Board

XH-M577 TPA3116D2 High Power 12-24V Dual-Channel 2 X 80W Audio Amplifier Board is an ultra-efficient Class D stereo amplifier module engineered around the popular Texas Instruments TPA3116D2 chip. This module offers impressive high-fidelity audio output, delivering up to 80 watts per channel (2x80W) into low-impedance speakers. The board features an integrated DC-DC boost converter, allowing it to generate the necessary high voltage for maximum output from a common 12V to 24V power supply. Consequently, this design flexibility simplifies power requirements while still maintaining the superior efficiency inherent to Class D amplification, which minimizes heat generation. Furthermore, its small form factor and robust protection features make it an ideal choice for DIY audio projects, home stereo upgrades, or portable sound systems requiring serious power.

Key Features:

• High Output Power: Utilizes the TPA3116D2 to deliver up to 2 x 80W output power into 4 Ω speakers, suitable for driving large bookshelf or tower speakers.
• Integrated Boost Converter: An on-board DC-DC boost circuit raises the input voltage internally, allowing the amplifier to achieve higher power output from lower external supply voltages.
• Class D Efficiency: The amplifier operates with very high efficiency (≥ 90%), therefore requiring only a passive heatsink for most applications and reducing power loss.
• Wide Supply Voltage Range: Accepts a 12V to 24V DC input, providing flexibility when sourcing power from common adapters or battery packs.
• Robust Protection: Includes comprehensive protection circuitry such as Overvoltage (OVP), Undervoltage (UVP), Overcurrent (OCP), and Thermal (OTP) shutdown.

Technical Specifications:

• Amplifier Chip: Texas Instruments TPA3116D2
• Channels: Dual-Channel Stereo (2.0)
• Output Power (Max): 2 x 80W (at 4 Ω)
• Supply Voltage (V_CC): DC 12V – 24V
• Efficiency: Greater than 90% (Class D)
• Recommended Speaker Impedance: 4 Ω to 8 Ω
• Frequency Response: 20 Hz – 20 kHz
• Signal-to-Noise Ratio (SNR): Typically 100 dB

Mechanical Specifications:

• Component Material: High-quality PCB with dedicated copper trace layout for power and audio signals.
• Heatsink: Includes an aluminum passive heatsink mounted directly on the TPA3116D2 IC.
• Connectors: Screw terminals for power input and speaker outputs; 3-pin header for audio input.
• Mounting: Includes four corner mounting holes for secure enclosure installation.

Dimensions:

• Board Length: ≈ 60 mm
• Board Width: ≈ 32 mm
• Board Height (Max): ≈ 14 mm (Including heatsink and large capacitors)
• Mounting Hole Diameter: ≈ 3 mm

Pinout and Wiring:

• Power Input (+/−): Connect the 12V to 24V DC power supply here. Always observe correct polarity.
• Audio Input (L/G/R): Connect the Left, Ground, and Right channels from the audio source (e.g., phone, preamp, or mixer).
• Speaker Output (L+/L−, R+/R−): Connect the left and right speakers. Ensure the speaker cables are heavy gauge for high power transmission.
• Wiring Note: Use a power supply rated at at least 5 Amps when driving speakers at high volume to prevent voltage droop and maintain sound quality.

Datasheet Reference:

• Download Texas Instruments TPA3116D2 Datasheet

Commonly Used in:

• Desktop PC Speaker Systems: Building or upgrading compact powered speaker sets.
• Portable Audio Devices: Driving high-output sound from battery-powered boomboxes or party speakers.
• Home Theater Systems: Powering satellite speakers or custom passive audio zones.

Applications:

• DIY Amplifier Builds: Forming the core amplification stage for custom enclosure projects.
• Car Audio Upgrades: Providing efficient internal amplification without requiring high-voltage car audio systems.
• Kiosk and Arcade Audio: Delivering loud, clear sound in public or commercial installations.

Equivalent Models:

• TPA3118-based Modules: Lower power variants (e.g., 2x30W) that still offer high-efficiency Class D amplification, however, they yield less maximum output.
• PAM8610 Modules: Simpler, lower-power Class D stereo amplifiers (e.g., 2x15W), but also highly cost-effective for smaller projects.
• IRS2092 Digital Amplifier Modules: Higher-end digital modules that can achieve similar power levels, yet typically require a more complex external power supply setup.

Package Includes:

• 1 x XH-M577 TPA3116D2 High Power Audio Amplifier Board
• 1 x Audio Input cable
