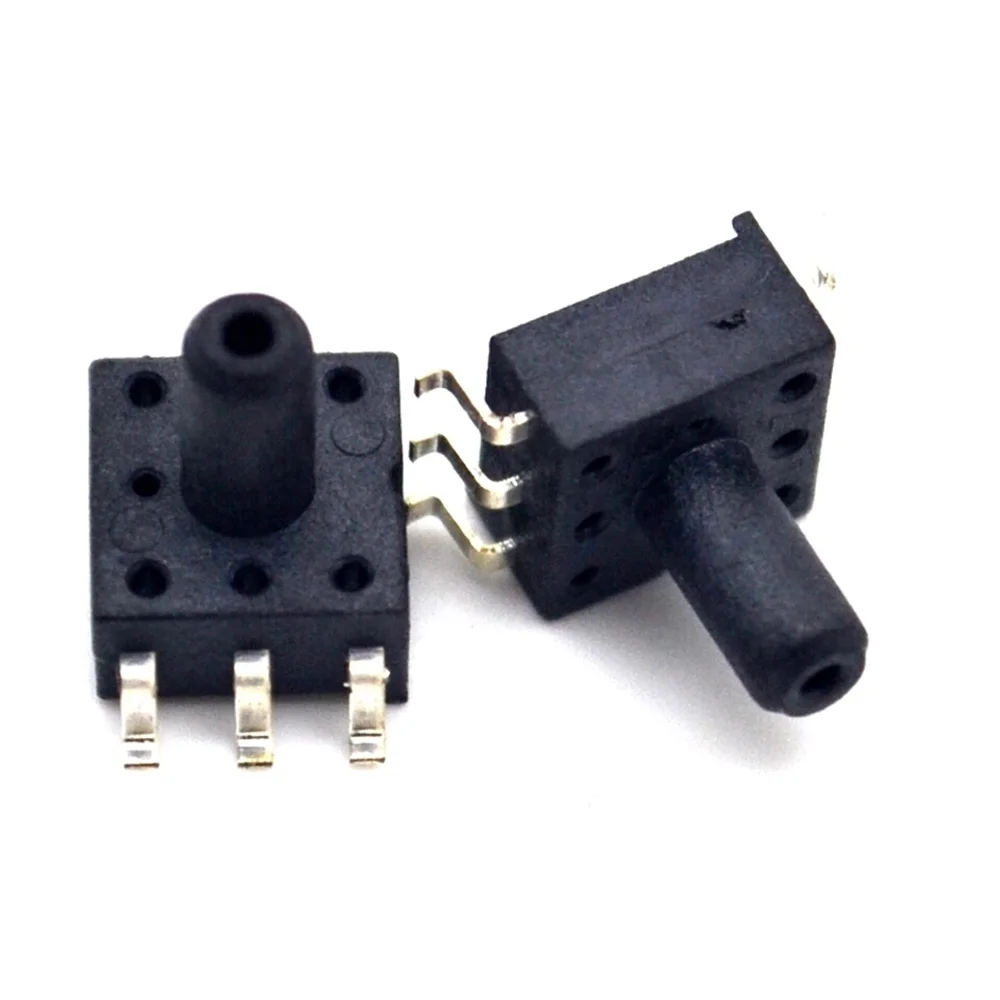

XGZP101SB1 oxygen pressure sensor SOP package

XGZP101SB1 Oxygen Pressure Sensor SOP Package is a high-precision piezoresistive silicon pressure sensor designed specifically for medical and industrial applications requiring accurate gaseous media measurement. This surface-mount device utilizes advanced MEMS technology to provide a reliable millivolt output proportional to the applied pressure. Consequently, it excels in environments where small form factors and long-term stability are critical for system performance. The sensor features a unique gel-filling or specialized coating to protect the silicon chip against moisture and corrosive gases like oxygen. Therefore, you can confidently integrate this component into ventilators, oxygen concentrators, and various pneumatic control systems to ensure patient safety and process accuracy. Furthermore, its standardized SOP-6 package simplifies automated assembly for high-volume manufacturing.

Key Features:

• MEMS Technology: High-sensitivity silicon piezoresistive die ensures exceptional accuracy and repeatable pressure measurements.
• Oxygen Compatibility: The sensor design specifically accommodates oxygen and non-corrosive gases, making it perfect for medical-grade equipment.
• SOP-6 Packaging: Small Outline Package (SOP) allows for high-density PCB layouts and facilitates pick-and-place machine compatibility.
• Cost-Effective Design: Offers an uncompensated millivolt output, which provides maximum flexibility for designers to implement custom signal conditioning circuits.
• High Stability: Features excellent long-term drift characteristics, which reduces the frequency of system recalibration.

Technical Specifications:

• Pressure Range: 0 to 100 kPa (Customizable ranges available)
• Excitation Current: ≤ 2.0 mA (Typical 1.0 mA)
• Input Impedance: 4 kΩ to 6 kΩ
• Output Impedance: 4 kΩ to 6 kΩ
• Full-Scale Span: 50 mV to 100 mV (Typical)
• Operating Temperature Range: −30°C to +85°C
• Accuracy: ±0.25% Span (Non-linearity, Hysteresis, and Repeatability)
• Bridge Resistance: 5 kΩ ± 20%

Mechanical Specifications:

• Pressure Media: Air, oxygen, and non-corrosive gases
• Housing Material: High-strength PPS (Polyphenylene Sulfide) or similar plastic
• Mounting Style: Surface Mount Device (SMD)
• Port Type: Single vertical barb for secure tubing attachment

Dimensions:

• Base Length: ≈ 10.2 mm
• Base Width: ≈ 7.0 mm
• Total Height (including barb): ≈ 8.5 mm
• Barb Diameter: ≈ 2.5 mm to 3.0 mm

Pinout and Wiring:

• Pin 1: Not Connected (NC)
• Pin 2: Excitation Positive (Input +)
• Pin 3: Output Positive (Output +)
• Pin 4: Excitation Negative (Input -)
• Pin 5: Output Negative (Output -)
• Pin 6: Not Connected (NC)
• Wiring Note: However, users must implement an external operational amplifier (Op-Amp) circuit to scale the millivolt signal for microcontroller ADC inputs.

Datasheet Reference:

• Download XGZP101SB1 Pressure Sensor Datasheet

Commonly Used in:

• Oxygen Concentrators: Monitors the pressure within the sieve beds and delivery lines to ensure proper gas flow.
• CPAP and BPAP Machines: Provides the feedback loop for precise pressure regulation in sleep apnea therapy.
• Digital Pressure Gauges: Acts as the sensing core for handheld and panel-mounted industrial gauges.

Applications:

• Medical Monitoring: Tracking patient respiration rates and air delivery pressures in surgical environments.
• Process Control: Maintaining specific pressure thresholds in pneumatic manufacturing equipment.
• Leak Detection: Utilizing high sensitivity to detect micro-leaks in sealed gas systems.

Equivalent Models:

• Honeywell NBP Series: High-performance medical sensors, however, they often come at a significantly higher price point.
• TE Connectivity MS5803: A similar piezoresistive sensor, although it typically includes integrated digital signal conditioning.
• XGZP6847: A pre-amplified version of the same sensor family for those requiring a 0-5V output.

Package Includes:

• 1 x XGZP101SB1 Oxygen Pressure Sensor SOP Package
