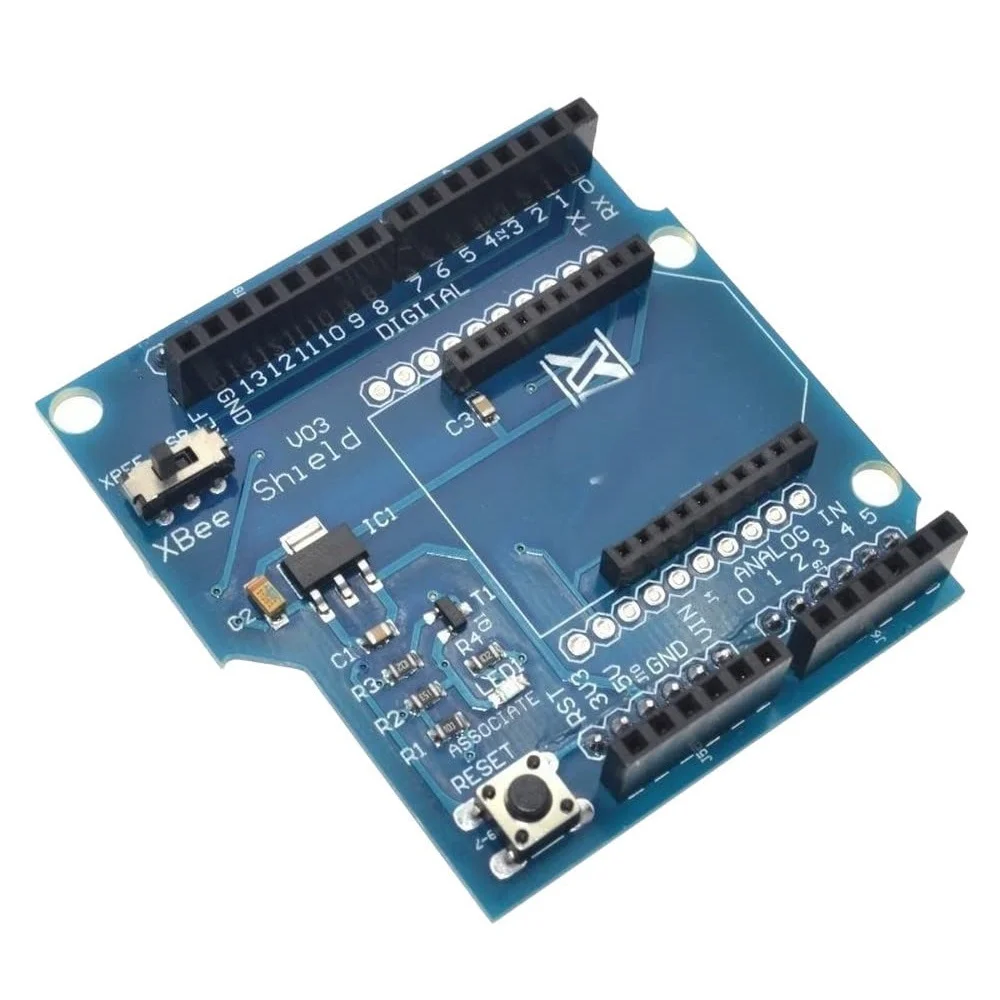

XBee Shield V03 Module Wireless Control

XBee Shield V03 Module provides a straightforward and reliable way to add wireless communication to your Arduino projects. This versatile shield easily connects to any Arduino board, giving it the ability to communicate with other XBee modules or devices over a long range. Whether you’re building a sensor network, a remote-controlled robot, or a simple data link, this shield simplifies the process by handling the physical connections and voltage regulation. The V03 revision includes enhancements like a power jumper and a switch for controlling communication with the microcontroller, making it a flexible and essential tool for wireless development.

Key Features:

• Direct Arduino Compatibility: The shield’s form factor allows you to stack it directly on top of an Arduino UNO, Mega, or Leonardo board, creating a clean and compact setup.
• Onboard Voltage Regulator: A 3.3V regulator ensures your XBee module receives the correct voltage, protecting it from damage and simplifying power management.
• Selectable Communication Pins: A convenient switch lets you choose between connecting the XBee module to the Arduino’s hardware serial pins (D0/D1) or software serial pins, giving you flexibility for different projects.
• Reset Button: The shield includes its own reset button, making it easy to reset the Arduino without having to remove the shield.
• LED Indicators: Status LEDs provide visual feedback for power and data transmission (RX/TX), which helps with debugging and monitoring your wireless link.
• Prototyping Area: An extra prototyping area with standard 0.1″ pitch allows you to solder additional components directly onto the shield for a more integrated design.

Technical Specifications:

• Operating Voltage: 5V (from Arduino board)
• Logic Level: 3.3V (for XBee module)
• Onboard Regulator: 3.3V
• Interface: Serial (UART)
• Compatible XBee Modules: Series 1, Series 2, and others with a standard footprint.
• Jumper/Switch: Selectable UART communication (Hardware or Software)

Mechanical Specifications:

• Connector: Standard Arduino shield headers.
• Module Socket: 20-pin dual-row female header for XBee modules.
• Material: High-quality FR-4 PCB with silkscreen labeling.

Dimensions:

• Board Length: 69 mm
• Board Width: 54 mm
• Board Thickness: 1.6 mm

Pinout and Wiring:

• Arduino Pins: Mapped to the standard Arduino Uno/Mega pinout.
• XBee Socket: Pins are directly connected to the corresponding Arduino digital pins. The switch on the board routes the XBee’s TX/RX pins to either Arduino’s D0/D1 (Hardware Serial) or D2/D3 (Software Serial).
• Power: The shield draws power from the Arduino board via the 5V and GND pins.
• Wiring Note: Simply plug the XBee Shield onto your Arduino board. Ensure the communication switch is set to the correct mode (USB or XBee) for programming and operation.

Datasheet Reference:

• Download Datasheet

Commonly Used in:

• Wireless Sensor Networks: Create a mesh network to monitor environmental data across a large area.
• Remote Control Systems: Control devices, vehicles, or robots from a distance.
• Automation Projects: Build wireless systems for smart home or industrial automation.

Applications:

• Home Automation: Wirelessly control lights, locks, or other appliances.
• Robotics: Establish a robust wireless link between a robot and a controller.
• Data Logging: Transmit sensor data from a remote location to a central hub for analysis.
• Smart Agriculture: Monitor soil moisture and temperature in large fields using a network of sensors.

Equivalent Models:

• Adafruit XBee Adapter: A simple breakout board for XBee modules that requires separate wiring.
• SparkFun XBee Shield: A similar shield with comparable features, widely used in the maker community.

Package Includes:

• 1 x XBee Shield V03 Module Wireless Control
